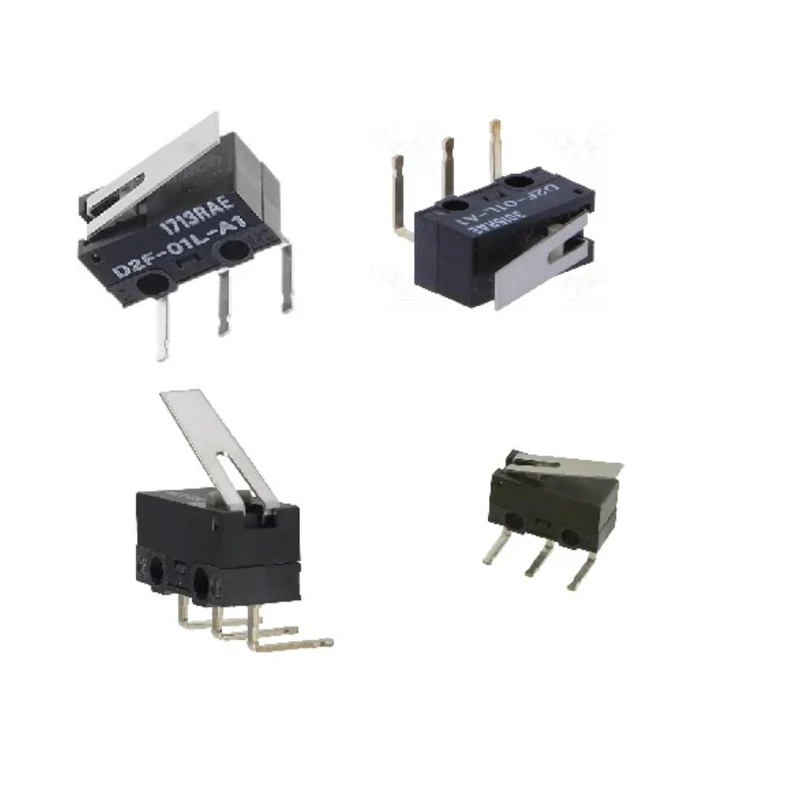

Omron Aratas Lever Micro Switch with PCB Terminal, SPDT Contact, 100mA, IP40 Protection D2F-01L-A1

Omron D2F-01L-A1 Aratas Lever Micro Switch with PCB Terminal is a high-quality micro switch designed for precise and durable operation in electrical and automation applications. It features lever actuation for easy operation and a single-pole double-throw (SPDT) contact configuration allowing it to operate as ON-(OFF), OFF-(ON) effectively.

This switch supports a switch contact current of 100mA at 30V DC, making it suitable for sensitive control circuits. The device has a compact depth of only 3mm, ideal for tight PCB mounting requirements in industrial and electronic equipment.

The switch body includes insertion molded terminals to prevent flux penetration during soldering, enhancing reliability and longevity. The integrated snapping mechanism uses two highly precise split springs to ensure long durability with consistent performance over its operational life. The IP40 protection rating safeguards against ingress of solid particles larger than 1 mm, appropriate for controlled environments.

Multiple terminal configurations are available, including self-clinching PCB terminals and left-angled or right-angled terminals, allowing compatibility with various PCB designs and assembly methods. This micro switch is manufactured in Japan under the trusted D2F series, guaranteeing product excellence and compliance with high manufacturing standards.

Typical industrial applications include integration in automation control systems, electrical devices, instrumentation, manufacturing equipment, and other commercial electronic devices requiring reliable switching action. The robust construction and precise actuation make it suitable for use in laboratory instruments, HVAC systems, and factory automation setups.

Features lever actuation for precise control. Single-pole double-throw (SPDT) contact configuration. Rated at 30V DC with 100mA switch contact current. Designed with insertion molded terminals to prevent flux penetration.

Compact depth of 3 mm suitable for PCB mounting. IP40 ingress protection ensures resistance to solid objects above 1 mm. Constructed with two highly precise split springs for long durability. Includes self-clinching PCB, left-angled, and right-angled terminal options.

Manufactured in Japan with D2F series reliability. Explore our broad selection of Omron Micro Switches and other electrical components at EnvMart for high-performance industrial, laboratory, and commercial automation needs.
