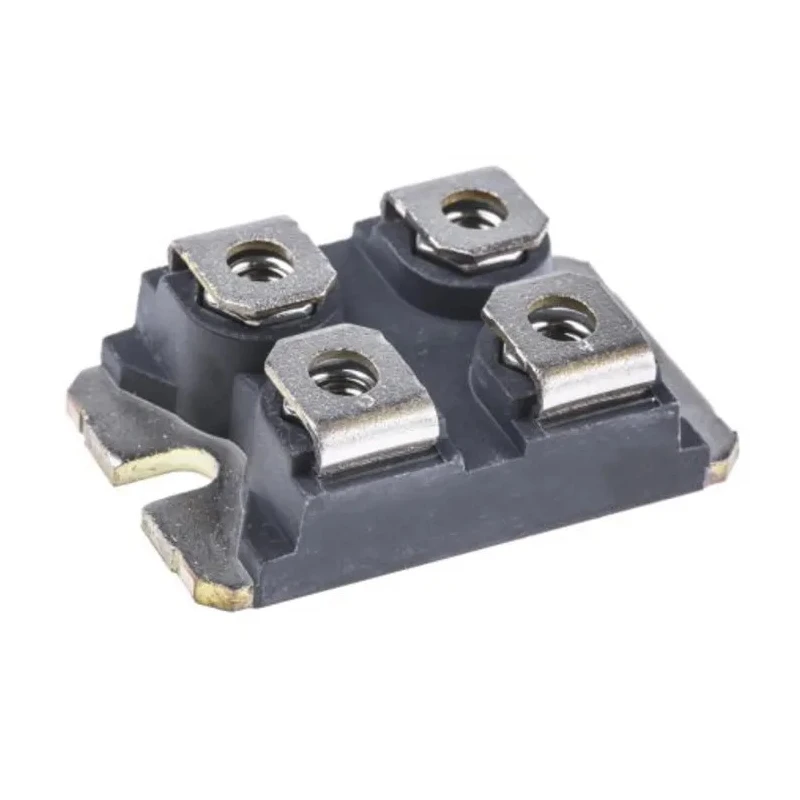

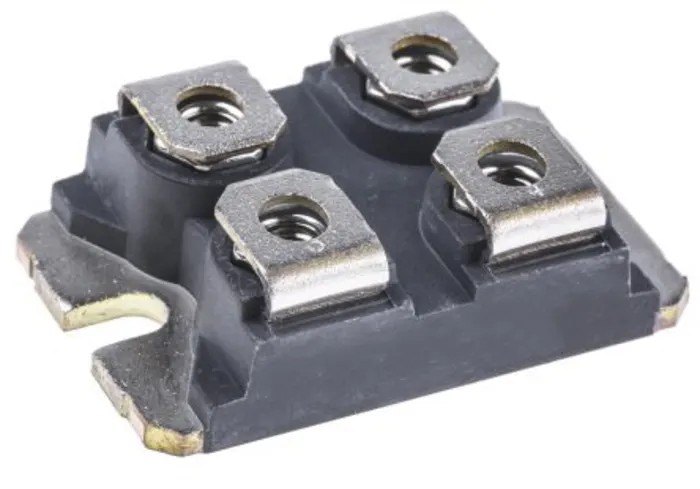

Microchip 1700 V 50 A Schottky Barrier Diode Through Hole SOT-227 MSC2X51SDA170J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC2X51SDA170J |
| Mount Type | Through Hole |
| Series | MSC2 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 50A |
| Peak Reverse Repetitive Voltage Vrrm | 1700V |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- This diode offers low forward voltage of 1.8 V enhancing efficiency.
- It supports a wide operating temperature range from -55°C to 175°C.
- The Schottky barrier design ensures low leakage current and improved performance over silicon diodes.
- Specifically suited for power electronics requiring avalanche energy rating.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for installation in power rectification and high voltage circuits.
Product Description
Microchip MSC2X51SDA170J is a high-performance Schottky Barrier Diode designed for demanding semiconductor power applications. It operates with a maximum peak reverse repetitive voltage of 1700 V and a maximum continuous forward current of 50 A, housed in a robust Through Hole SOT-227 package.
The diode features a low forward voltage drop of 1.8 V which significantly reduces power dissipation, contributing to the overall efficiency of power conversion systems. Its Schottky barrier technology offers advantages such as extremely low reverse recovery time and leakage current, making it suitable for high-frequency applications and power supply units.
Operating temperature ranges from -55°C up to 175°C, ensuring reliability in harsh industrial and commercial environments. The device is avalanche energy rated, providing ruggedness against voltage spikes commonly found in power electronics.
RoHS compliance certifies that the component meets environmental and safety protocols, making it an environmentally conscious choice for electronics manufacturing. Typical applications include power rectifiers, freewheeling diodes in motor drives, power supplies, and various high voltage semiconductor circuits.
Low forward voltage improves efficiency in power systems. Wide operating temperature range ensures stable performance under varying conditions. Schottky barrier technology minimizes switching losses. Avalanche rated for rugged operation in demanding circuits.
RoHS compliant supporting environmental regulations. Explore the comprehensive selection of Schottky Barrier Diodes at EnvMart to meet your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage of this diode is 1700 V.
This model has a maximum continuous forward current rating of 50 A.
The maximum forward voltage drop for this diode is 1.8 V.
It operates within a temperature range of -55°C to 175°C.
This diode is housed in a Through Hole SOT-227 package.
Yes, this diode complies with RoHS standards, ensuring it meets environmental safety protocols.
It is suitable for applications such as power rectifiers, freewheeling diodes in motor drives, and various high voltage semiconductor circuits.
This model is a Schottky rectifier, which offers advantages like low reverse recovery time and leakage current.
Schottky barrier technology minimizes switching losses and provides extremely low reverse recovery time, making it suitable for high-frequency applications.
The series designation for this diode is MSC2.
The country of origin for this diode is India.
This diode is avalanche energy rated, providing ruggedness against voltage spikes commonly found in power electronics.
