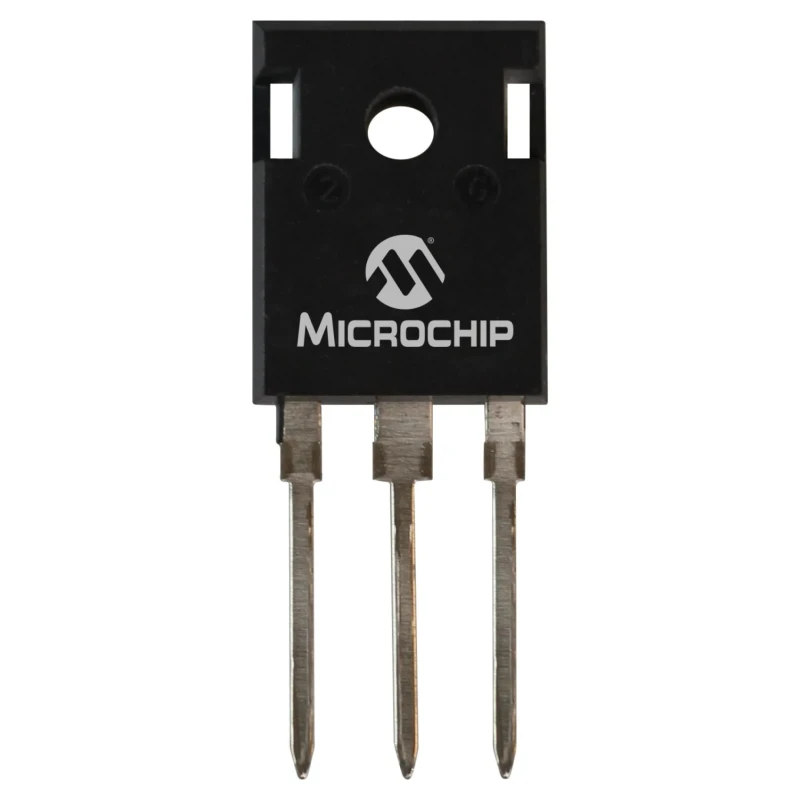

Microchip 700 V 30 A Schottky Barrier Diode, Through Hole, TO-247 Package MSC030SDA070BCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA070BCT |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 700V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Features a TO-247 through-hole package suitable for power electronics.
- Maximum continuous forward current of 30 amperes ensuring high current capacity.
- Capable of withstanding peak reverse repetitive voltage of 700 volts.
- Low forward voltage of 1.8 volts reduces power loss during conduction.
- Operates efficiently within a temperature range of -55°C to 175°C.
- Peak non-repetitive forward surge current up to 75 amperes for surge protection.
- RoHS compliant ensuring environmental safety and regulatory compliance.
- Ideal for use as power parallel diode in industrial and electronic manufacturing applications.
Product Description
Microchip MSC030SDA070BCT is a high-performance Schottky Barrier Diode designed to meet the demands of high switching frequency electronics. Its robust TO-247 package supports through-hole mounting, providing ease of installation and reliable durability in power electronic circuits.
The diode supports a maximum continuous forward current of 30 A, making it suitable for applications requiring substantial current handling such as power supply rectifiers and parallel diode configurations. It withstands a peak reverse repetitive voltage of 700 V, ensuring protection against high voltage reverse spikes often encountered in industrial environments.
With a low maximum forward voltage drop of 1.8 V, this device reduces power dissipation and improves efficiency in DC power conversion tasks. It operates reliably across a wide temperature range from -55°C to 175°C, supporting usage in demanding thermal environments.
The diode can manage peak non-repetitive forward surge current up to 75 A, offering resilience in transient load conditions. Its compliance with RoHS standards ensures that it meets environmental directives for hazardous substances, enabling safer manufacturing and disposal.
TO-247 through-hole mounting enhances mechanical stability in power assemblies. Supports high continuous and surge currents for robust power handling. Wide operating temperature range suitable for industrial and commercial electronics.
Low forward voltage optimizes efficiency in power conversion circuits. RoHS compliance guarantees environmental and health safety standards.
This Schottky Barrier Diode is widely used in electronics manufacturing, power electronics, renewable energy systems, and automotive electronics where efficient rectification and fast switching are critical. Its design suits applications like power supplies, battery charging circuits, and DC-DC converters.
Discover a broad selection of semiconductor components and related electronic devices at EnvMart, your trusted partner for quality industrial parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Microchip MSC030SDA070BCT is 30 amperes, making it suitable for applications requiring substantial current handling.
This model can withstand a peak reverse repetitive voltage of 700 volts, providing protection against high voltage reverse spikes.
The maximum forward voltage drop is 1.8 volts, which helps reduce power loss during conduction in power conversion tasks.
It operates efficiently within a temperature range of -55°C to 175°C, making it suitable for demanding thermal environments.
The Microchip MSC030SDA070BCT features a TO-247 through-hole package, which supports easy installation and mechanical stability.
This diode can manage a peak non-repetitive forward surge current of up to 75 amperes, providing resilience in transient load conditions.
Yes, the MSC030SDA070BCT is RoHS compliant, ensuring it meets environmental directives for hazardous substances.
This model is widely used in power electronics, renewable energy systems, automotive electronics, and applications like power supplies and battery charging circuits.
The Microchip MSC030SDA070BCT belongs to the MSC0 series of Schottky Barrier Diodes.
The specific dimensions of the TO-247 package are not provided, but it is designed for through-hole mounting in power electronic circuits.
This model is a Schottky rectifier, known for its fast switching and low forward voltage drop characteristics.
The country of origin for this diode is India.
