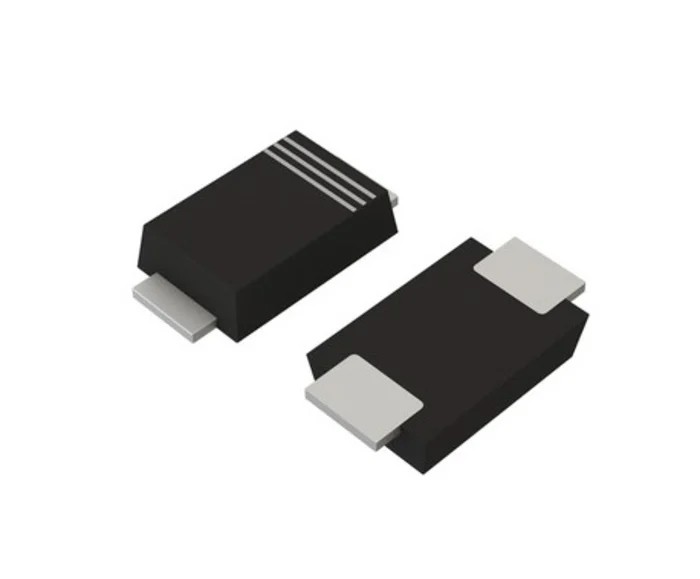

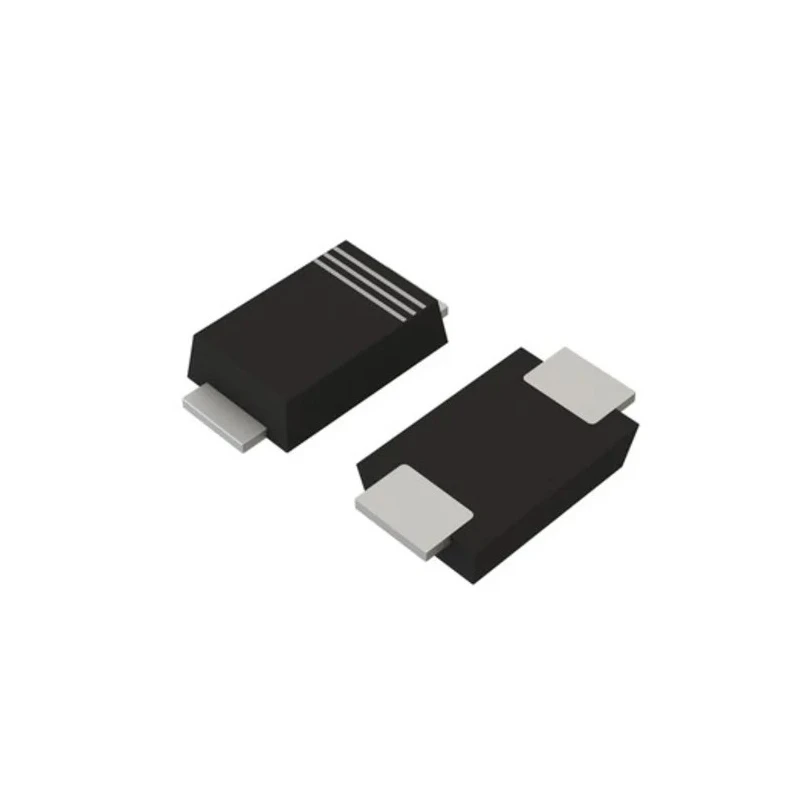

ROHM 60 V 2 A Schottky Barrier Schottky 2-Pin SOD-128 Diode RB068LAM-60TR
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.5mm |
| Brand | ROHM |
| Height | 1.05mm |
| Length | 3.9mm |
| Model | RB068LAM-60TR |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | RB068LAM-60 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 0.68V |
Key Features
- Diode features a silicon epitaxial planar structure for high reliability.
- Small mold type surface mount SOD-128 package.
- Maximum forward voltage drop of 0.68 V reduces power loss.
- Peak forward surge current capability of 70 A.
- Operates reliably up to 150°C maximum temperature.
- Single diode configuration with 2 pins.
- Complies with RoHS environmental standards.
- Ideal for general rectification and power management.
Product Description
ROHM RB068LAM-60TR is a silicon epitaxial planar type Schottky barrier diode rated at 60 V and 2 A continuous forward current. Packaged in a compact 2-pin SOD-128 surface mount case, this diode provides high reliability and super low reverse leakage current for efficient rectification tasks.
The device features a maximum forward voltage drop of 0.68 V, which reduces conduction losses and improves power efficiency in electronic circuits. It can tolerate a peak non-repetitive forward surge current up to 70 A, making it suitable for transient conditions.
Operating up to 150°C maximum temperature, this diode is well-suited for demanding industrial and commercial electronic applications including power supplies, voltage clamping, and switching circuits. Its small mold surface mount package enables compact PCB designs and automated assembly.
High reliability through silicon epitaxial planar construction. Small, low-profile SOD-128 package for surface mounting. Low forward voltage of 0.68 V reduces power dissipation. Can withstand 70 A surge forward current briefly.
Wide operating temperature range to 150°C. Single diode configuration with 2 pins. RoHS compliant for environmental safety. Compact dimensions: 3.9 mm length, 2.7 mm width, 1.05 mm height, and 1.5 mm diameter.
This diode finds use in various industrial, commercial, and electronic equipment circuits requiring efficient and reliable rectifiers. Applications include power rectification, load dump protection, and voltage clamping in consumer and industrial electronics.
EnvMart provides this ROHM RB068LAM-60TR Schottky Barrier Diode as a high-quality component trusted in semiconductor and discrete electronics categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the ROHM RB068LAM-60TR Schottky diode is 2 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop of this diode is 0.68 V, which helps reduce power loss.
It can withstand a peak non-repetitive forward surge current of up to 70 A.
The diode operates reliably up to a maximum temperature of 150°C.
The dimensions of the SOD-128 package are 3.9 mm in length, 2.7 mm in width, and 1.05 mm in height.
This model is designed for surface mounting.
The ROHM RB068LAM-60TR has a single diode configuration with 2 pins.
Yes, it complies with RoHS environmental standards.
It is suitable for general rectification, power management, load dump protection, and voltage clamping in electronic circuits.
It features a silicon epitaxial planar structure for high reliability.
The country of origin for the ROHM RB068LAM-60TR is India.
