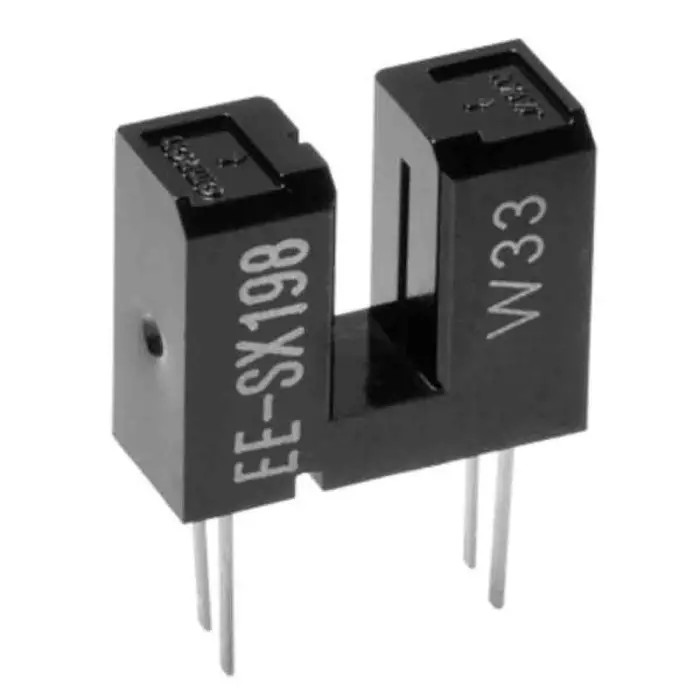

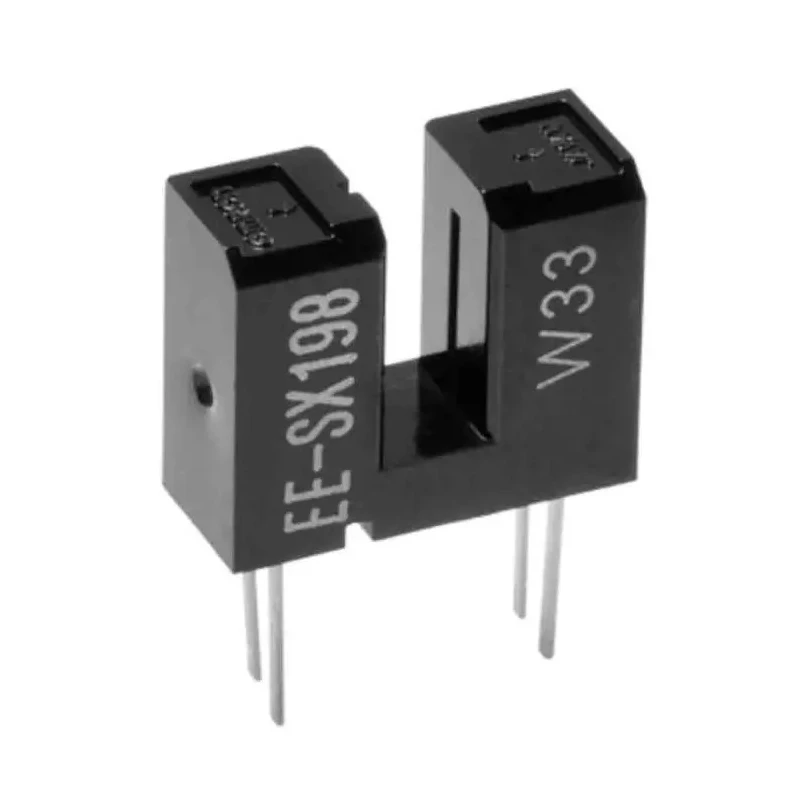

Omron EE-SX198 Through Hole Slotted Optical Switch Phototransistor Output EE-SX198
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Model | EE-SX198 |
| Mount Type | Through Hole |
| Series | EE-SX |
| Maximum Operating Temperature | 85°C |
| Package Type | Pin |
| Minimum Operating Temperature | -25°C |
| Slot Width | 3mm |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Number of Pins | 4 |
| Typical Rise Time | 4μs |
Key Features
- The phototransistor output allows for reliable and fast signal detection.
- Through hole mount type ensures sturdy PCB installation.
- Compact dimensions include a 10mm height and 4-pin package.
- Operates effectively from -25°C to 85°C for versatile environmental applications.
- Ideal for office automation, medical devices, building automation, amusement industry, and vending machine use.
- High resolution 0.5mm wide aperture enhances sensing accuracy.
- Pin package type facilitates easy electrical connection.
- Manufactured in Japan ensuring quality and reliability.
Product Description
The Omron EE-SX198 through hole slotted optical switch with phototransistor output is designed for high-precision transmissive sensing applications. Featuring a 3mm slot width and a 0.5mm wide high resolution aperture, this sensor provides exceptionally accurate detection performance with a phototransistor output configuration. Its fast typical rise and fall times of 4μs enable rapid response suitable for high-speed automation processes.
This component mounts through the PCB via its 4-pin pin-package, ensuring secure installation and reliable electrical connections. It operates efficiently across a wide temperature range from -25°C up to 85°C, making it suitable for diverse industrial and commercial environments.
Common applications include office automation equipment, medical devices, building control systems, amusement machines, and vending machines, where precise optical switching is crucial. The product is manufactured in Japan guaranteeing high manufacturing standards and product consistency.
The phototransistor output ensures quick and accurate signal conversion. Through hole mounting type integrates easily into circuit boards. Compact height of 10mm caters to space-limited designs. Wide operating temperature range enhances environmental versatility.
High resolution aperture improves sensing accuracy. Pin package with 4 pins for secure connectivity. Japanese origin ensures quality manufacturing.
This optical switch is a robust solution for various industrial, laboratory, and commercial sensing applications. Explore more Slotted Optical Switches in the Omron range at EnvMart for your automation and sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 85°C.
It features a phototransistor output, allowing for reliable and fast signal detection.
The height of the EE-SX198 is 10mm, making it compact for space-limited designs.
The slot width of this optical switch is 3mm, enhancing its sensing capabilities.
This model has a typical rise time of 4μs, suitable for high-speed automation processes.
The minimum operating temperature is -25°C, allowing for versatile environmental applications.
It has a 4-pin package type that facilitates easy electrical connection.
This model uses a through hole mount type for secure PCB installation.
Common applications include office automation, medical devices, building control systems, amusement machines, and vending machines.
The 0.5mm wide high resolution aperture enhances sensing accuracy for precise detection performance.
This optical switch is manufactured in Japan, ensuring quality and reliability in production.
It integrates easily into circuit boards through its 4-pin pin-package design, ensuring reliable electrical connections.
