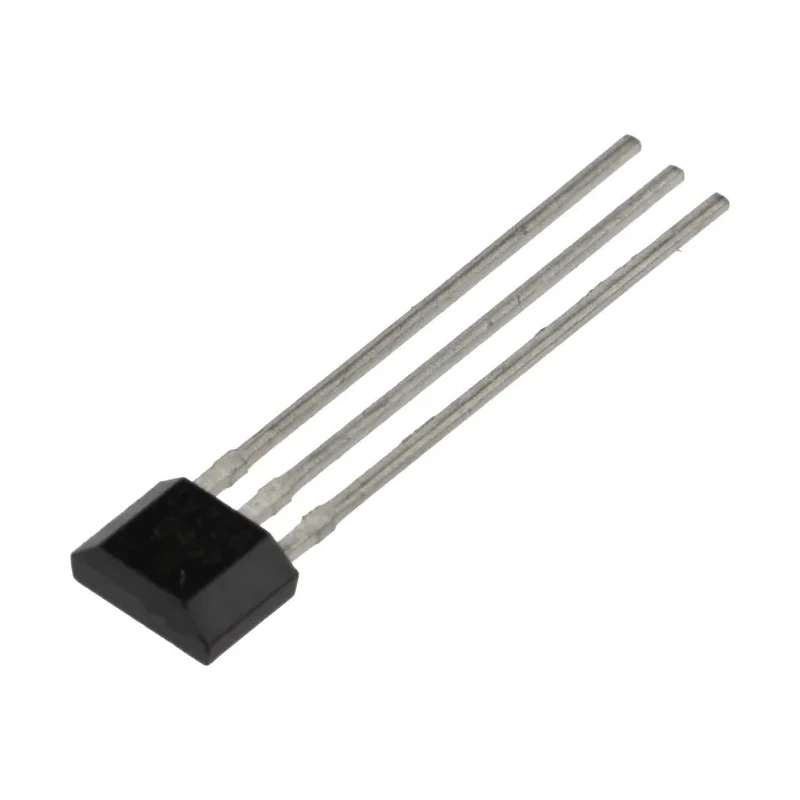

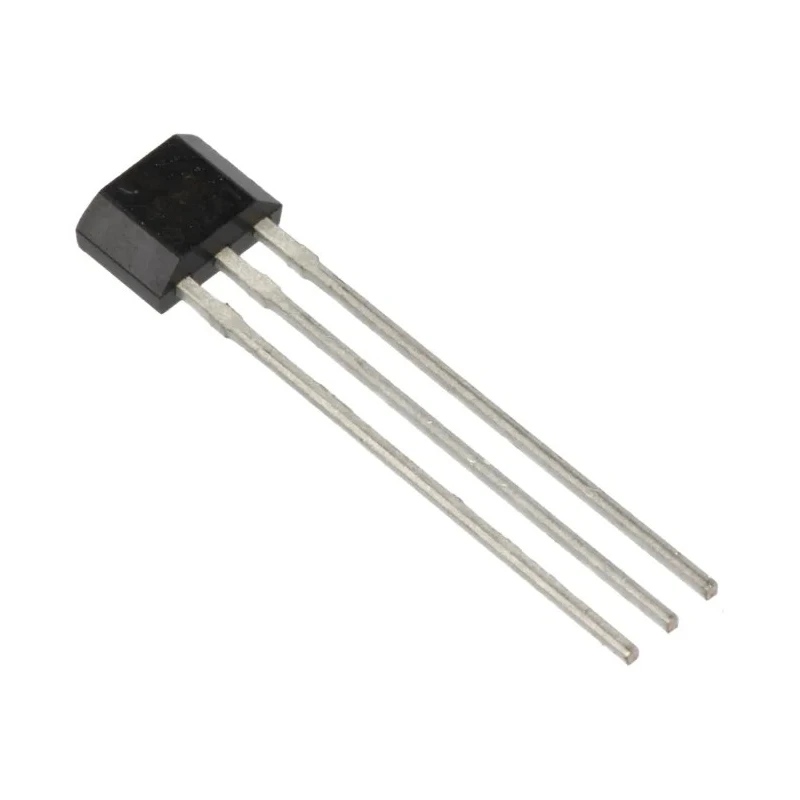

Honeywell Technologies Surface Hall Effect Sensor IC TO-92 3-Pin -4.5V to 10.5V Supply SS496B

Honeywell SS496B is a surface Hall effect sensor IC designed for industrial automation and electronic sensing applications. Packaged in a TO-92 three-pin format, it converts linear magnetic fields into electrical signals with great stability and accuracy. The sensor is powered across a supply voltage range of -4.5V to 10.5V, enabling flexible integration into diverse control and measurement systems.

The device features Quad-Hall technology, significantly reducing signal noise and variation, ensuring consistent detection performance. Its rapid 3μs response time is ideal for applications requiring quick switching and real-time monitoring of magnetic fields. With a sensitivity of 25%, it offers predictable, proportional output behavior, crucial for precise control.

The SS496B sensor operates reliably across a broad temperature span from -40°C to +150°C, making it suitable for harsh industrial environments. Its low supply current of 8.7mA minimizes power consumption, facilitating continuous sensor operation without excessive energy use.

Applications include position sensing in automated actuators, proximity detection in electrical assemblies, linear displacement monitoring in machinery, and magnetic field measurement in test rigs. The sensor package is compact and designed for surface mounting, simplifying PCB design with a vertically oriented TO-92 footprint.

Utilizes Quad-Hall sensor technology for reduced signal variation. Very fast 3 microsecond response time for prompt magnetic field detection. Wide supply voltage operating range of -4.5V to 10.5V for versatility. Compact TO-92 three-pin surface mount package.

Predictable output with 25% sensitivity proportional to magnetic field strength. Wide operating temperature range from -40°C to +150°C for industrial use. Low operating current of 8.7mA for energy efficiency. Ideal for position sensing, proximity detection, and displacement monitoring.

Reliable performance in control electronics and motion systems integration.

This Hall Effect Sensor is an essential component for designers and engineers in industrial automation, robotics, and electronic sensing sectors seeking compact and dependable magnetic field sensing solutions. Explore more Honeywell Sensors and Electronics components at EnvMart for your project requirements.
