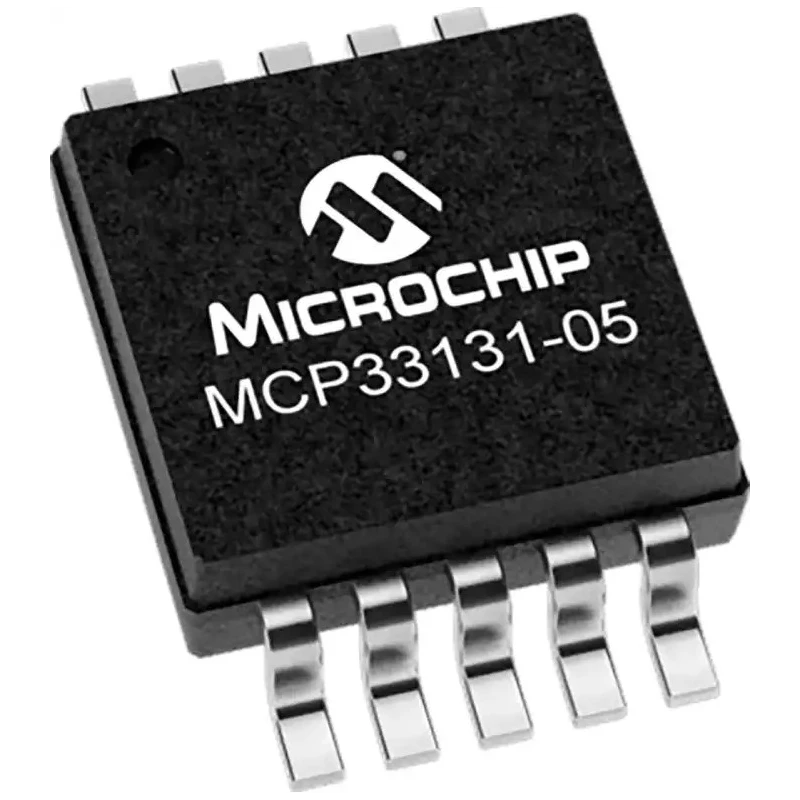

Microchip 16 bit Single-Ended Input SAR ADC 500 ksps 10-Pin MSOP MCP33131-05-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP33131-05-E/MS |
| Mount Type | Surface |
| Sampling rate | 500ksps |
| Series | MCP33131 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 10 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Number of ADCs | 1 |
Key Features
- The ADC features a high performance SAR architecture suitable for battery-powered and remote data acquisition systems.
- It provides a resolution of 16 bits and a single input channel.
- The device operates from 1.8V to 5.5V supply voltage, supporting a wide voltage range.
- It includes an SPI serial interface compatible with PIC microcontrollers for easy integration.
- Operating temperature range is from -40°C to 125°C, supporting harsh environments.
- Low power consumption with typical active current of 1.4mA and standby current of 0.8μA, ideal for low power applications.
- Compact 10-pin MSOP package with dimensions 3mm length and 1.1mm height.
- Includes automotive standard compliance with AEC-Q100 certification.
Product Description
Microchip MCP33131-05-E/MS is a high precision 16-bit Analogue to Digital Converter (ADC) designed with SAR architecture, providing efficient, low power conversion at 500 kilo samples per second (ksps). With a single-ended input and SPI interface, this ADC facilitates seamless integration into microcontroller-based systems, making it ideal for battery-operated devices, remote data acquisition, motor controls, medical instrumentation, and electric vehicle battery management systems.
The device operates across a broad supply voltage range of 1.8V to 5.5V and withstands operating temperatures from -40°C to 125°C, ensuring reliable performance in demanding industrial and automotive environments. Its low power consumption (1.4mA active typical and 0.8μA standby typical) optimizes energy efficiency for portable and embedded applications.
The MCP33131-05-E/MS comes in a compact 10-pin MSOP package (3mm length by 1.1mm height), offering a small footprint for space-constrained designs. It complies with the AEC-Q100 automotive standard, underlining its robustness and suitability for automotive-grade applications.
Applications include high-precision data acquisition systems, medical equipment, motor control, battery management systems in electric vehicles, switch-mode power supplies, and other embedded systems requiring accurate and efficient analogue-to-digital conversion.
16-bit resolution providing precise digital conversion. SAR architecture for high speed and accuracy. Single-ended input simplifies connection to sensors. SPI interface supports easy communication with microcontrollers. Wide operating temperature and supply voltage ranges.
Low power consumption ideal for battery-operated and portable devices. Compact 10-pin MSOP package for space-limited applications. Automotive AEC-Q100 standard certified for automotive reliability.
Explore our full range of semiconductor devices and Analogue to Digital Converters to find solutions tailored for industrial, automotive, medical, and consumer electronics at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a resolution of 16 bits, providing precise digital conversion of analogue signals.
The maximum sampling rate for the MCP33131-05-E/MS is 500 kilo samples per second (ksps).
It operates within a supply voltage range of 1.8V to 5.5V, accommodating various power supply configurations.
This unit supports a single-ended input type, simplifying connections to sensors.
The MCP33131-05-E/MS includes an SPI serial interface, which is compatible with PIC microcontrollers for easy integration.
It comes in a compact 10-pin MSOP package, measuring 3mm in length and 1.1mm in height.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
The typical active current consumption is 1.4mA, which is optimized for low power applications.
It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
This model integrates one ADC, designed for efficient analogue-to-digital conversion.
The device is designed for surface mounting, suitable for compact applications.
It utilizes a Successive Approximation Register (SAR) architecture, which is known for high speed and accuracy in data conversion.
