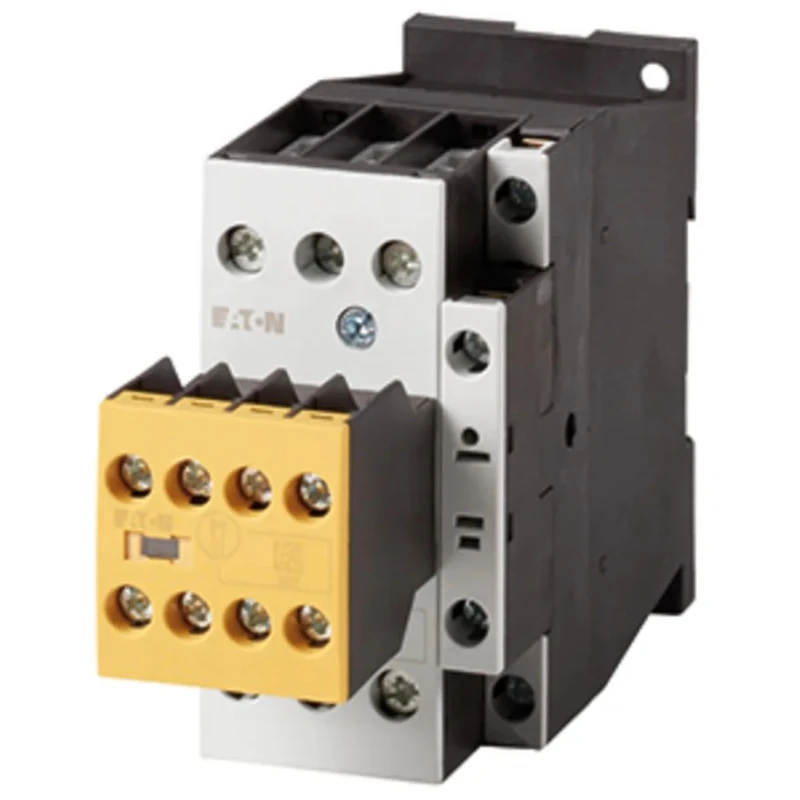

Eaton Safety Contactor 3-Pole 18A 7.5kW 230V AC Coil 3 NO 400V AC 191743 DILMS17-23(230V50HZ,240V60HZ)

Eaton 191743 DILMS17-23(230V50HZ,240V60HZ) safety contactor is a 3-pole device designed for industrial automation and control systems, with a coil voltage of 240V AC and rated contact current of 18A. It supports a power rating of 7.5 kW at 230V AC and operates with contact voltages up to 400V AC.

This contactor integrates a top-mounted, non-detachable auxiliary contact set (2 NO/3 NC), providing enhanced machine safety and reliable control functions. Its yellow (RAL1004) housing includes an inspection window directly above the switch position indicator, allowing real-time operational status monitoring and preventing unintended manual activation.

Designed specifically for safety circuit applications, the contactor features interlocked opposing contacts and mirror contacts to ensure failsafe operation. It is suitable for emergency-stop use with controlled start capability (category 4), and includes reliable screw terminal clamps for secure wiring.

The device has a mounting style of table type, dimensions of 138mm width, 85mm depth, and 56mm length, making it compact for control panels. The operational temperature range from -25°C to 60°C guarantees endurance in demanding environments. This Contactor complies with safety and quality standards: CSA, IEC, and UL.

Manufactured in Romania, this Eaton model DILMS17-23(230V50HZ,240V60HZ) is trusted for automatic motor control and machine safety in industrial, manufacturing, HVAC, and automation applications.

Equipped with a 7.5 kW power rating at 230V AC suitable for industrial applications. Includes 3 normally open (NO) contacts with an operational contact voltage of 400V AC. Contains 5 auxiliary contacts configured as 2 NO and 3 NC for enhanced control options.

Mount type is table with screw clamp terminals for reliable connections. Features a yellow cover with an inspection window for safe status monitoring and manual activation prevention. Operating temperature range from -25°C to 60°C, ensuring performance in varied environments.

Designed for safety applications with interlocked opposing contacts and mirror contacts. Compliant with CSA, IEC, and UL standards for quality and safety assurance. Manufactured in Romania, providing European quality and reliability.
