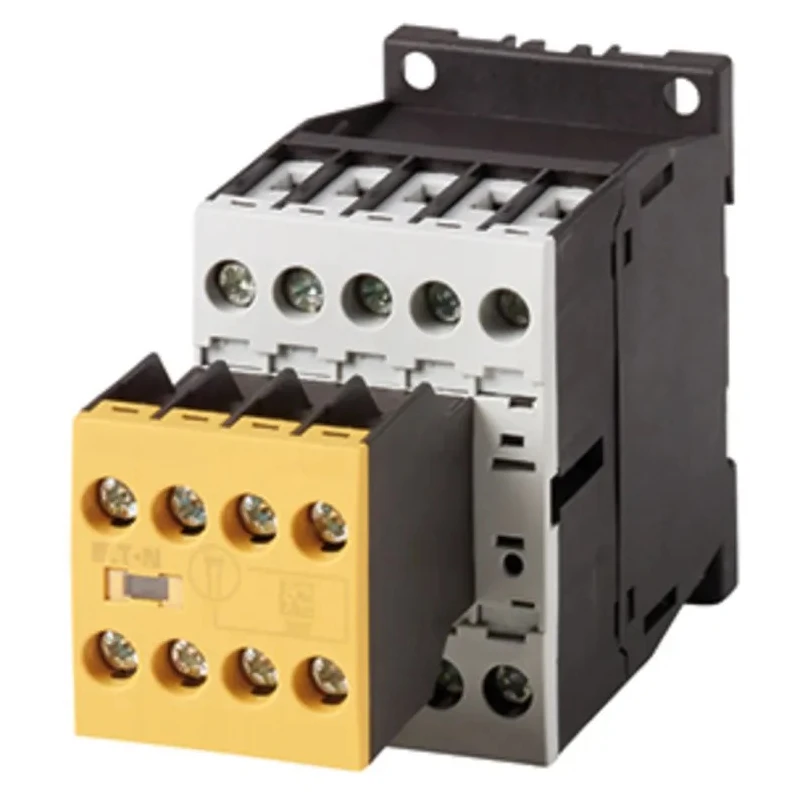

Eaton Safety Contactor 3-Pole 9A 4kW 240V AC Coil, 230V AC Control Circuit 191755 DILMS9-R23(230V50HZ,240V60HZ)

Eaton 191755 DILMS9-R23(230V50HZ,240V60HZ) Safety Contactor is designed with a 240V AC coil and a control circuit voltage of 230V AC, providing dependable switching capability for industrial safety applications.

This 3-pole contactor is rated for an operational current of 9A and can handle power up to 4kW at 400V AC contact voltage. It features three Normally Open (NO) main contacts and a combination of auxiliary contacts comprising 2 NO and 3 Normally Closed (NC) contacts, making it suitable for machine-control safety systems.

The contactor integrates a yellow cover (RAL1004) and a built-in inspection window located directly above the switch-position indicator. This facilitates safe and clear visual monitoring of the operating status, preventing manual activation and ensuring reliable safety status monitoring.

Additional features include mirror contacts and interlocked opposing contacts enhancing the safety functionality. The screw clamp type terminals provide robust and reliable electrical connections, supporting safe mounting on tables or panels within control gear assemblies.

Operating temperature spans from -25°C to 60°C, allowing this contactor to operate effectively in a wide range of industrial and manufacturing environments. Certified to UL, IEC, and CSA standards, it assures compliance with international safety and quality norms.

The compact footprint measures 117mm in width, 68mm in depth, and 45mm in length, making it suitable for space-constrained electrical panels. The DILMS series contactors cover ratings between 7A and 150A and are well-suited for emergency-stop applications with controlled start requirements under category 4 safety ratings.

Features a control circuit operating at 230V AC for reliable switching. Equipped with three Normally Open (3 NO) contacts for safety applications. Auxiliary contact configuration includes 2 Normally Open and 3 Normally Closed contacts.

Designed for a temperature range from -25°C to 60°C to suit diverse industrial environments. Constructed with screw clamp terminal type ensuring secure electrical connections. Complies with UL, IEC, and CSA standards providing industrial safety assurance.

Compact dimensions: 117mm width, 68mm depth, and 45mm length. Manufactured in Romania with robust build quality suitable for machine safety control circuits. Top-mounted, non-detachable auxiliary contact for enhanced reliability and safety monitoring.

This Eaton safety contactor is ideal for industrial, manufacturing, HVAC, and machine control applications requiring reliable emergency stop functionality with self-monitoring capability and high safety performance. It is part of the DILMS series known for its robustness and compliance with stringent standards.
