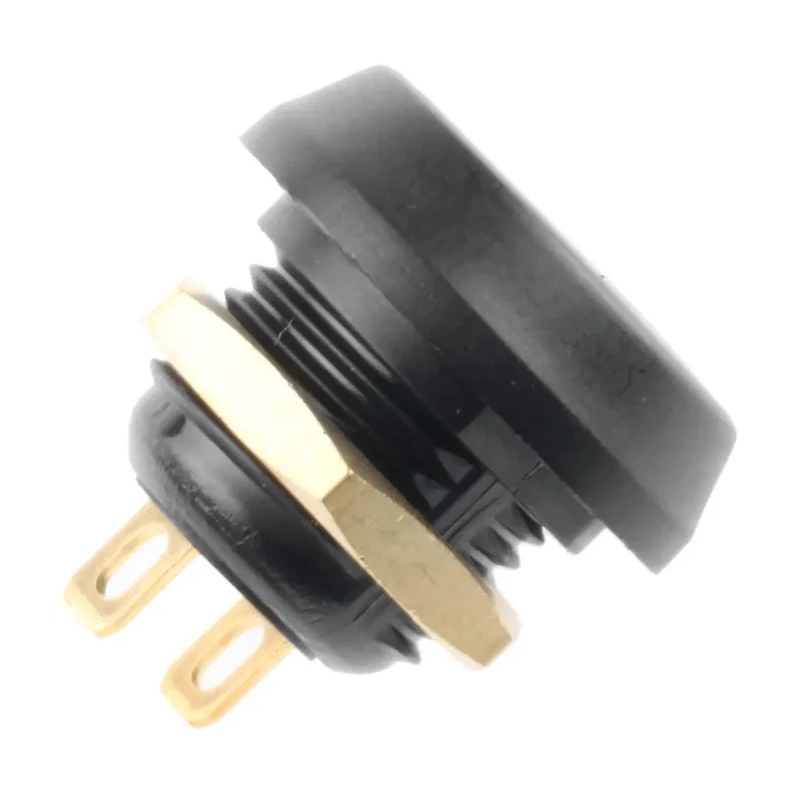

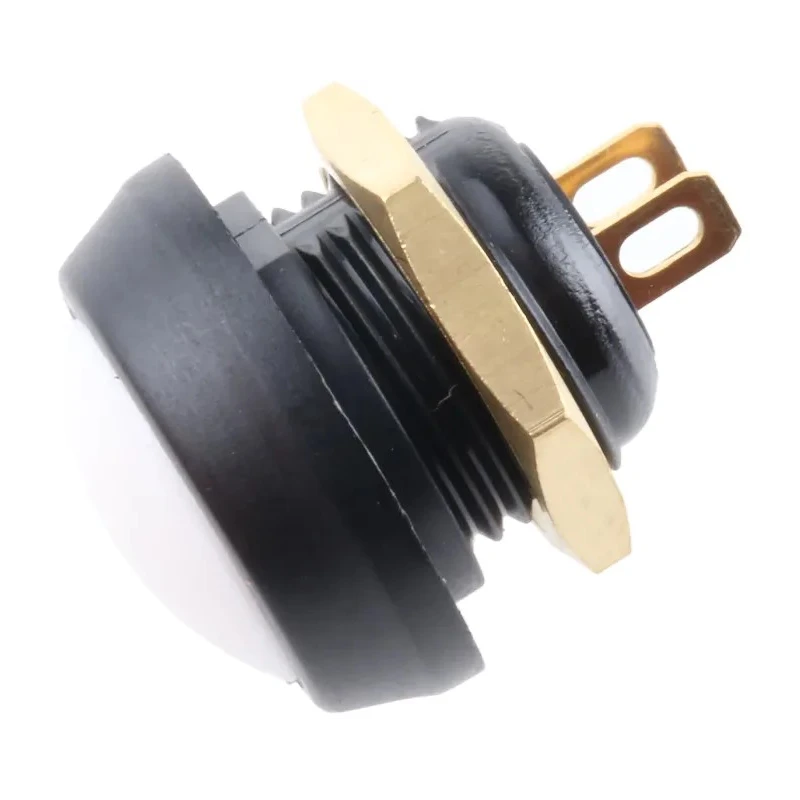

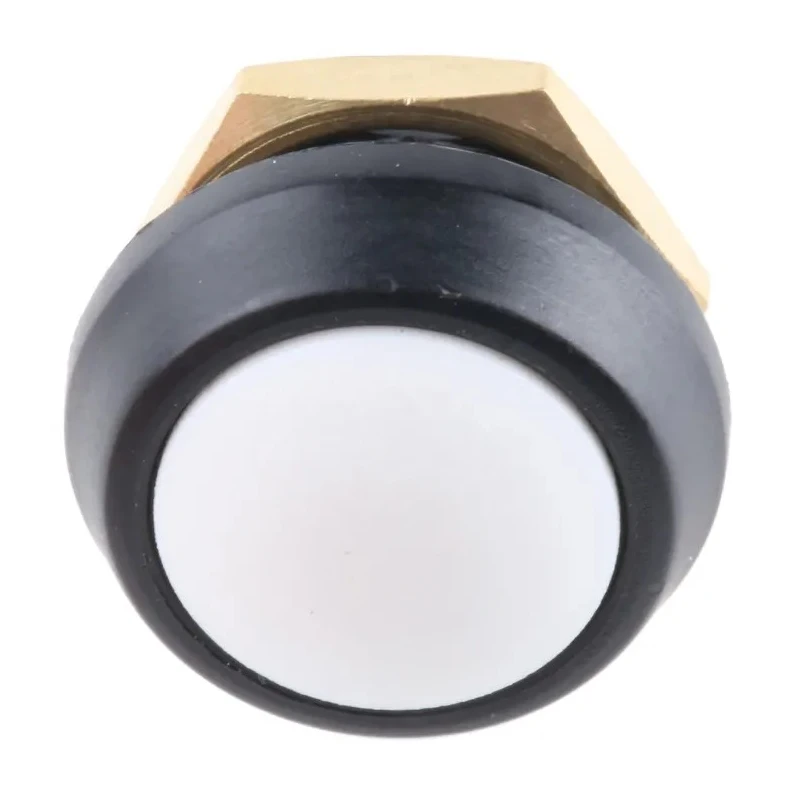

ITW Switches 59 Series Miniature Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-514

ITW Switches 59-514 is a miniature, momentary action push button switch designed for panel mounting with a 13.6 mm cutout. It features a SPST (Single Pole Single Throw) contact configuration with a clear LED and white actuator button to provide visual status indication. This rugged switch is sealed to IP67 standards, ensuring total dust protection and resistance against temporary immersion in water between 15 cm and 1 meter depth for up to 30 minutes, making it suitable for harsh and demanding environments.

The 59 series switches support contact voltages of up to 125V AC/DC and a contact current rating of 400mA. They operate effectively over a temperature range from -40°C minimum to 105°C maximum. Made with gold-plated contacts, the switch guarantees reliable electrical performance and long service life. The body is available in either non-spark zinc alloy or durable polybutylene terephthalate (PBT) material, providing corrosion resistance and mechanical robustness.

These switches are momentary with a simple on-off switch configuration, ideal for use in communications equipment, data entry systems, military environments, instrumentation, mass transport controls, and other industrial applications requiring environmentally sealed and impact-resistant keypads.

Key benefits include multiple panel bezel styles (round, round illuminated, PBT round, square), and the illuminated versions come with choices of button and high-brightness LED colors. The switch meets CSA and UL standards, ensuring compliance and safety in industrial installations.

This miniature push button switch is suitable for panel mounting with a compact 13.6 mm cutout. Momentary switch operation with on-off SPST configuration. Robust design with IP67 sealing for dust and water resistance. Wide operating temperature range from -40°C to 105°C.

Operates at 125V AC/DC with a 400mA contact current rating. Gold contacts provide enhanced electrical reliability and durability. Choice of body materials including non-spark zinc alloy and tough PBT. Approvals by CSA and UL guarantee quality and safety compliance.

Ideal for demanding industrial and military applications requiring reliable push button control. Explore further Push Button Switches and industrial automation components on EnvMart for comprehensive electrical solutions.
