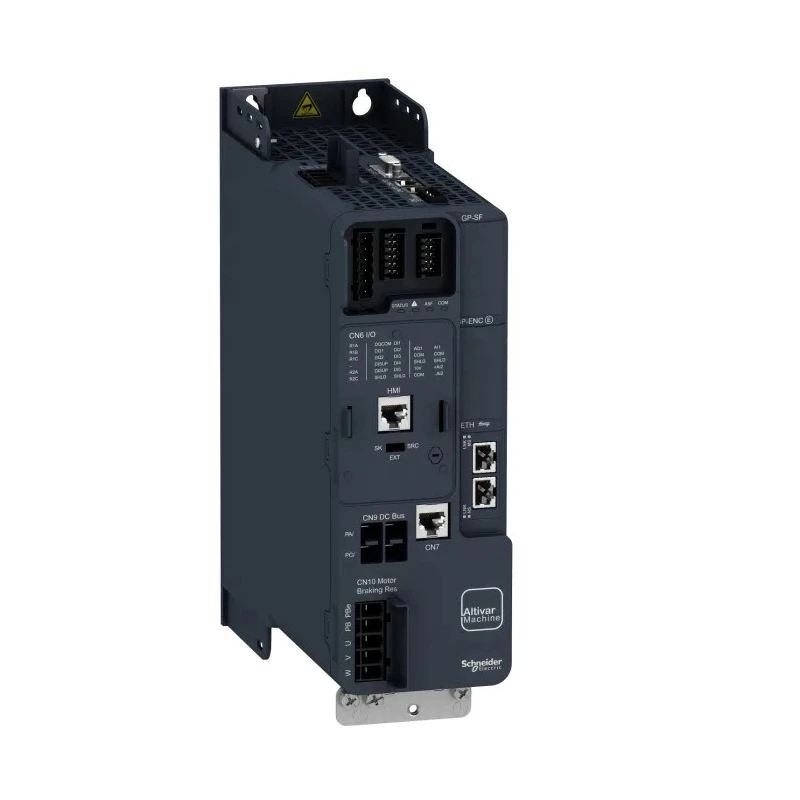

Schneider Electric Inverter Drive 3 kW 3 Phase Altivar Series 480V 8.6 A ATV340U30N4E

Schneider Electric ATV340U30N4E Inverter Drive is a high-performance variable speed drive designed for industrial automation and motor control applications. It delivers 3 kW power for 3-phase motors, supporting a maximum output current of 8.6 A at supply voltages between 380 V and 480 V. Its wide output frequency range of 0.1 to 599 Hz allows precise speed regulation for both asynchronous and synchronous motors, including reluctance and permanent magnet types.

This model features a cabinet mount type enclosure with an IP20 ingress protection rating, ensuring reliable operation in controlled environments. It can operate efficiently in temperatures ranging from 0°C to 50°C, with derating capabilities for higher temperatures up to 60°C.

The Altivar series drive incorporates advanced control functions including master/slave speed and torque coordination, embedded webserver, and expansion slots for Encoder, I/O modules, and fieldbus communications. The Ethernet option enhances connectivity for smart manufacturing and automation systems.

Built with functional safety STO embedded and designed to save energy, this drive meets multiple international standards such as EAN, RoHS, CSA, UL, EAC, TUV, REACH, CE, C-Tick, and IEC. Its compact dimensions (85 mm length, 232.5 mm width, 270 mm depth) make it suitable for cabinet installations in industrial and manufacturing settings.

Applications include automation systems, HVAC, machinery speed control, and energy-efficient motor management in various industries. It supports sustainable productivity goals with environmentally friendly claims.

Supports 3-phase motor operation with 380-480V supply voltage. Offers output frequency range from 0.1 to 599 Hz for versatile applications. Equipped with robust cabinet mount type and IP20 protection rating. Compatible with Reluctance and Permanent Magnet motors.

Features embedded Ethernet option and master/slave speed control functionality. Designed for ambient operating temperatures from 0°C to 50°C with performance derating above 50°C. Includes safety features such as functional safety STO embedded and enhanced environmental protection.

Compact dimensions of 85mm length, 232.5mm width, and 270mm depth. Explore EnvMart’s extensive range of Schneider Electric Inverter Drives and other automation gear to enhance your industrial system performance reliably and efficiently.
