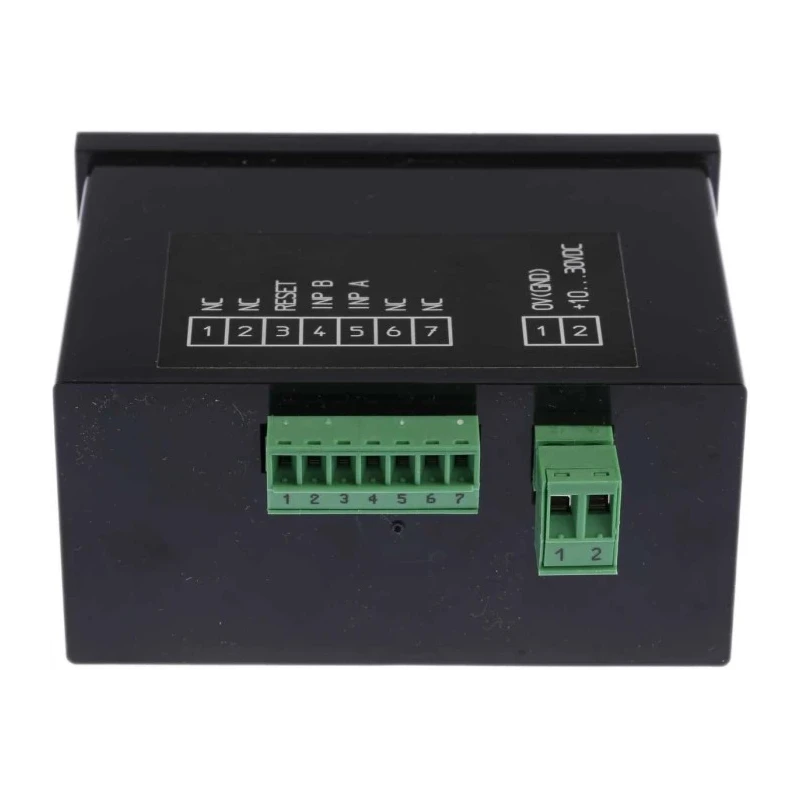

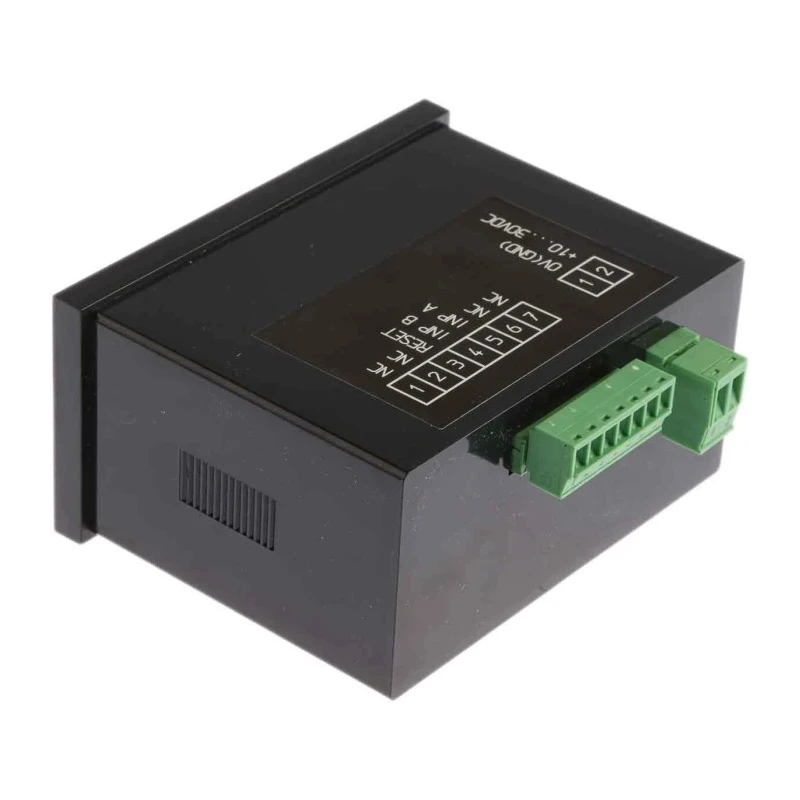

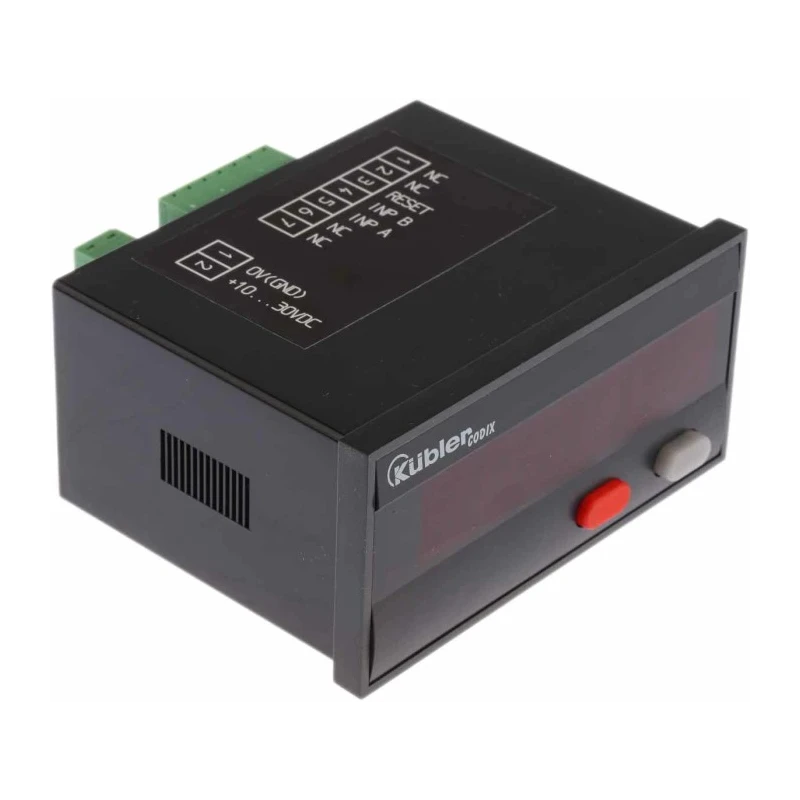

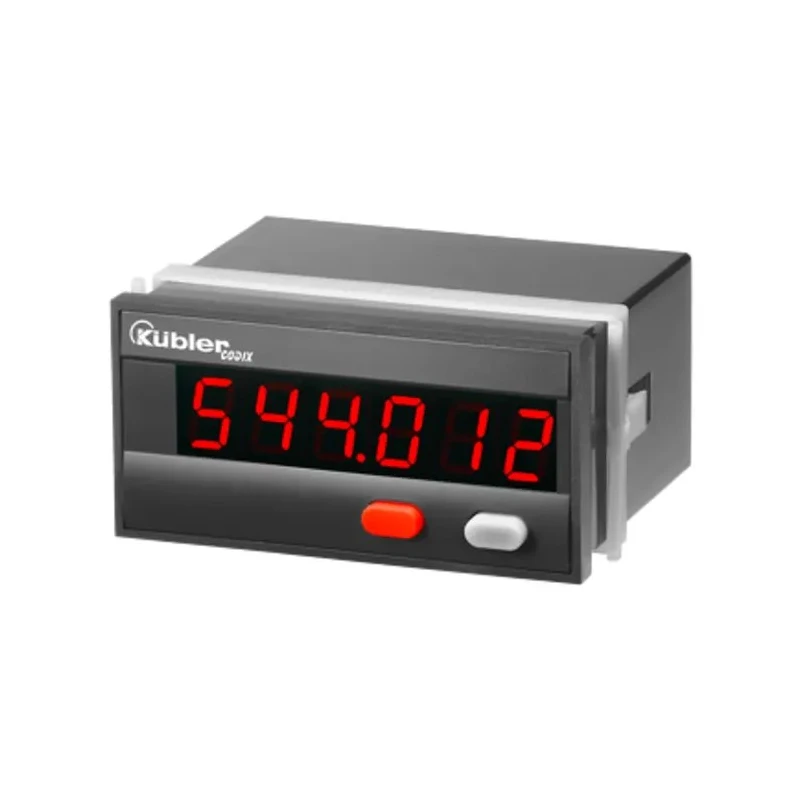

Kubler CODIX 544 6 Digit LED Counter with 14mm Digit Height and Panel Cut Out 92x45mm 6.544.012.300

Kubler 6.544.012.300 CODIX 544 6 Digit LED Counter, featuring a digit height of 14mm and panel cut out dimensions of 92 x 45 mm, offers robust and versatile counting solutions for industrial automation and process control applications.

This counter enables easy and secure programming through two accessible keys and accepts input pulses with Schmitt Trigger characteristics, enhancing signal integrity. It supports multiple counting modes including totaliser, position indicator, counting with direction input, differential counting, and quadrature inputs with pulse doubling and quadrupaling capabilities.

The CODIX 544 counter also functions as a frequency meter and tachometer with output programmable in counts per second or minute. Its hour meter and short time meter modes include an active counting indicator via a flashing decimal point, with timing resolution adjustable down to 1 millisecond.

Data retention exceeds 10 years, ensuring long-term reliability in industrial environments. Overflow conditions are indicated by displaying the count value with leading zeros. The device is resettable via the SET key which can be displayed during setup, and it is designed for panel mounting with a precise cut out size of 92 x 45 mm.

The counter operates with variable input pulse shapes featuring Schmitt Trigger characteristics. Secure and easy programming is achieved via 2 intuitive keys. Data retention exceeds 10 years, ensuring reliability. Supports totaliser and position indicator modes with overflow indication using leading zeros.

Offers multiple counting modes including directional, differential, and quadrature inputs with pulse doubling and quadrupaling. Includes frequency meter and tachometer modes with programmable indication in 1/s or 1/min. Functions as hour meter or short time meter with active counting indicated by flashing decimal point.

Programmable timing in seconds, minutes, and hours, with resolution up to 1 ms. Reset functionality is provided via SET key, displayable in setup. Designed for panel mounting with a cut out size of 92 x 45 mm.

This Kubler CODIX 544 counter is suitable for a variety of industrial automation, process control, electrical, and manufacturing systems requiring accurate counting and timing measurements.
