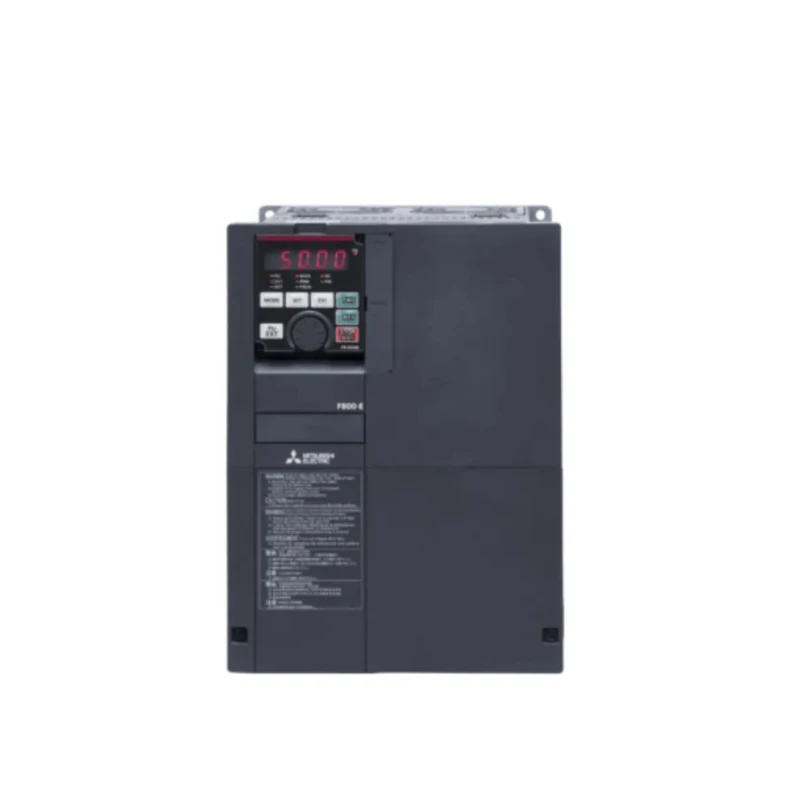

Mitsubishi Electric Inverter Drive 1.5 kW 3 Phase 400V AC 31A FR-F840-00310-E2-60
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-F840-00310-E2-60 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Wall |
| Overall Length | 220mm |
| Series | FR-F800 |
| Overall Width | 300mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 60Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | Standard USB port - for simple set-up using a memory stick |
| Number of Phases | 3 |
| Maximum Output Current | 31A |
| Standards/Approvals | CE, cUL, EC, IEC, UL |
| Overall Depth | 190mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Standard 4-Pole Motor |
Key Features
- Optimized for pump and fan control applications with maximum energy savings.
- PID control drive type ensures efficient and accurate motor speed regulation.
- Wall mount design with IP20 protection for safety and ease of installation.
- Standard 4-pole motor compatible with 60 Hz output frequency.
- Equipped with USB port for simple setup and real-time clock for event logging.
- Features load detection system to identify mechanical issues like broken belts.
- Anti-Windmill function protects motor and drive during startup.
- Wide operating temperature range from -10°C to 50°C suitable for varied environments.
Product Description
Mitsubishi Electric FR-F840-00310-E2-60 inverter drive is part of the FR-F800 series designed for pump, fan, and light constant torque load motor control in industrial and HVAC applications. It delivers 1.5 kW output power with a 3 phase 400V AC input and supports a maximum output current of 31 A, making it suitable for efficient motor speed regulation and energy savings.
The wall-mount drive features PID control and is compatible with standard 4-pole motors operating at 60 Hz frequency. The unit includes a standard USB port for straightforward setup using a memory stick and a real-time clock that timestamp trip messages, facilitating quick diagnostic checks.
A key feature is the load detection system that monitors for mechanical faults such as broken drive belts, helping to prevent costly downtime. The Anti-Windmill function smoothly controls loads already in motion before startup, protecting both the motor and the drive from damage.
The device is rated IP20 for protection and complies with international standards CE, cUL, EC, IEC, and UL, ensuring reliable and safe operation. It operates reliably over a temperature range of -10°C to 50°C, suitable for both industrial and commercial environments.
Manufactured in China, this inverter drive represents a sustainable choice through its energy-saving capabilities. Its compact dimensions of 300 mm width, 220 mm length, and 190 mm depth enable easy integration into control panels.
This Mitsubishi Electric Inverter Drive is ideal for industries requiring precise motor control, HVAC system integration, manufacturing, and water treatment plants. It supports efficient energy use while protecting equipment with advanced features for diagnostic and mechanical load management.
Optimized pump and fan VFD for maximum energy efficiency. PID control ensures precise motor speed regulation. Wall mount with IP20 rating for easy installation. Supports 3 phase 400V AC supply and 60 Hz output frequency.
USB port for simple setup and diagnostics. Load detection system for mechanical fault monitoring. Anti-Windmill function protects during startup. Complies with CE, cUL, EC, IEC, UL certifications. Operating temperature from -10°C to 50°C for versatile applications.
Explore the full range of Mitsubishi Electric automation and control gear at EnvMart for advanced industrial and HVAC system solutions.
