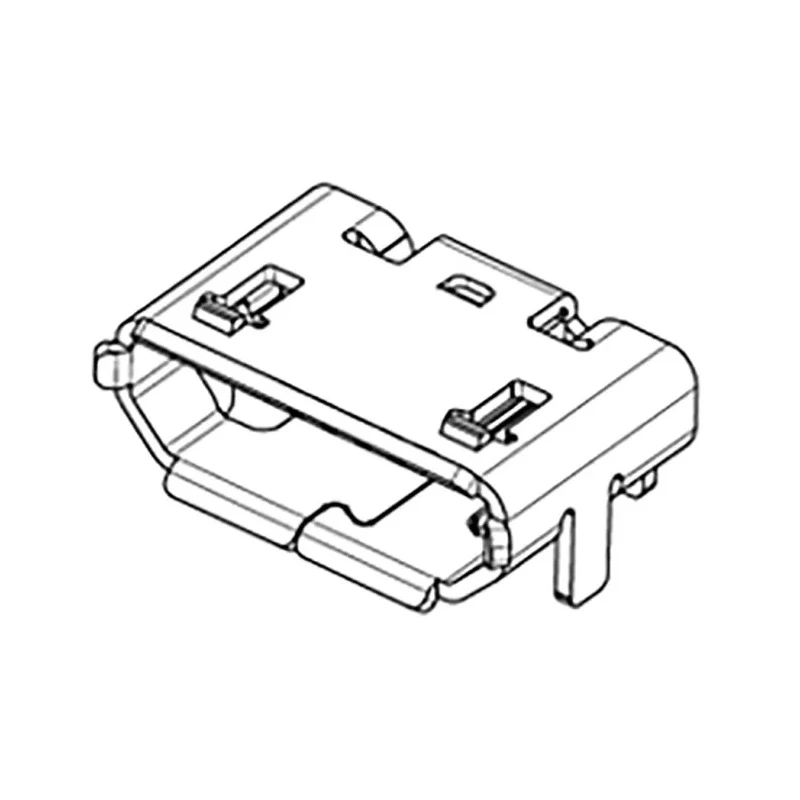

Molex Right Angle Surface Mount Female USB Type B Connector USB 2.0 30V 1.8A 105017-1001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.8A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 1050 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- The connector features a surface mount design suitable for PCB assembly.
- Rated for a voltage of 30V and a current of 1.8A ensuring efficient performance.
- Constructed with copper alloy contacts for durability and electrical conductivity.
- Operates reliably within a wide temperature range from -30°C to 85°C.
- The right-angle orientation facilitates compact PCB layout designs.
- Provides a single port USB Type B female interface for USB 2.0 devices.
- Termination is by solder ensuring secure and stable electrical connections.
- Manufactured to series 1050 standards, originating from China.
Product Description
Molex 105017-1001 is a right-angle, surface mount USB connector designed for female USB Type B ports, compliant with USB 2.0 specification, operating at 30 volts and 1.8 amps current capacity. This component is tailored for electronics applications where space-saving connector solutions on PCBs are required.
The connector features copper alloy contacts that provide excellent electrical conductivity and durability for long-term use. Its surface mount termination ensures easy soldering and robust mechanical stability.
Rated for operation between -30°C to 85°C, this connector is suitable for a broad range of industrial, laboratory, and commercial electronic devices. The right-angle orientation allows more compact designs in circuit boards where space constraints exist.
Surface mount type for PCB usage. Single USB Type B female port compliant with USB 2.0 standards. Copper alloy contact material for reliable electrical performance. Voltage rating of 30V and current rating of 1.8A for stable operation.
Operating temperature range from -30°C to 85°C for versatile applications. Solder termination for secure connectivity. Series 1050 model from Molex with proven quality.
Commonly used in electronic component manufacturing, data communication equipment, and industrial control systems, this USB connector delivers dependable performance within compact and rugged electrical assemblies.
Product origin is China. The Molex brand ensures consistency in quality and engineering excellence for demanding environments. Explore more Molex USB Connectors and related electronics components at EnvMart for your professional assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a voltage of 30V and a current of 1.8A, ensuring stable operation for connected devices.
This model is a USB Type B female connector, compliant with USB 2.0 specifications.
The connector features a right-angle orientation, which allows for more compact PCB layout designs.
It operates reliably within a temperature range of -30°C to 85°C, making it suitable for various applications.
The termination type for this connector is solder, ensuring secure and stable electrical connections.
The contacts are made from copper alloy, which provides durability and good electrical conductivity.
This connector has a single port, designed for USB Type B female connections.
It features a surface mount design, suitable for PCB assembly.
This connector is part of the Molex series 1050.
It is commonly used in electronic component manufacturing, data communication equipment, and industrial control systems.
The connector is manufactured in China.
USB 2.0 compliance ensures compatibility with a wide range of devices and supports data transfer rates typical of this standard.
