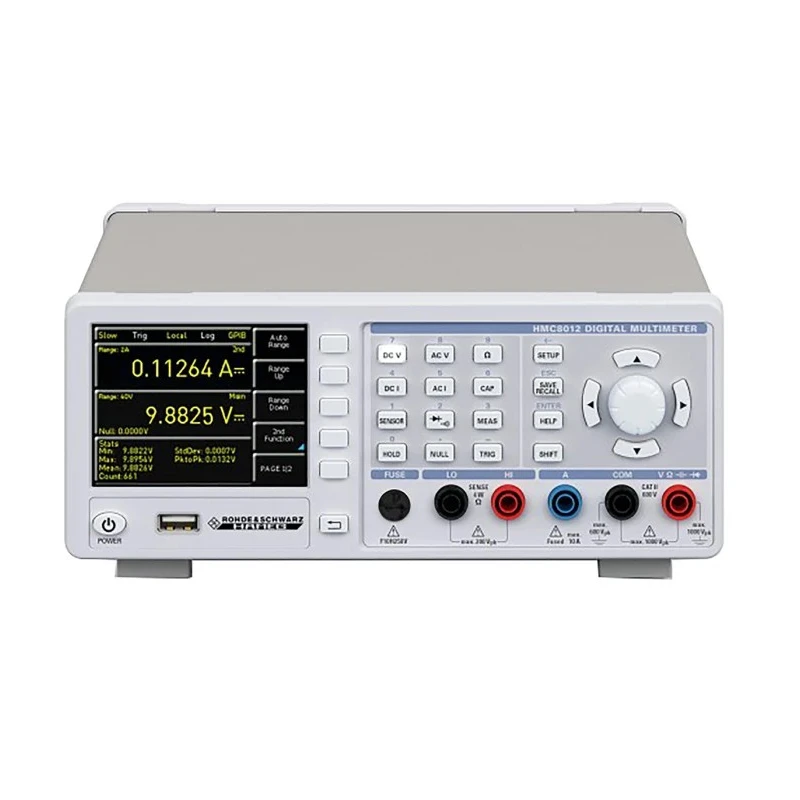

Rohde & Schwarz Bench Multimeter True RMS 10 A AC, 10 A DC, 750 V AC HMC8012

Free Delivery in India | Lowest Global Shipping Charges

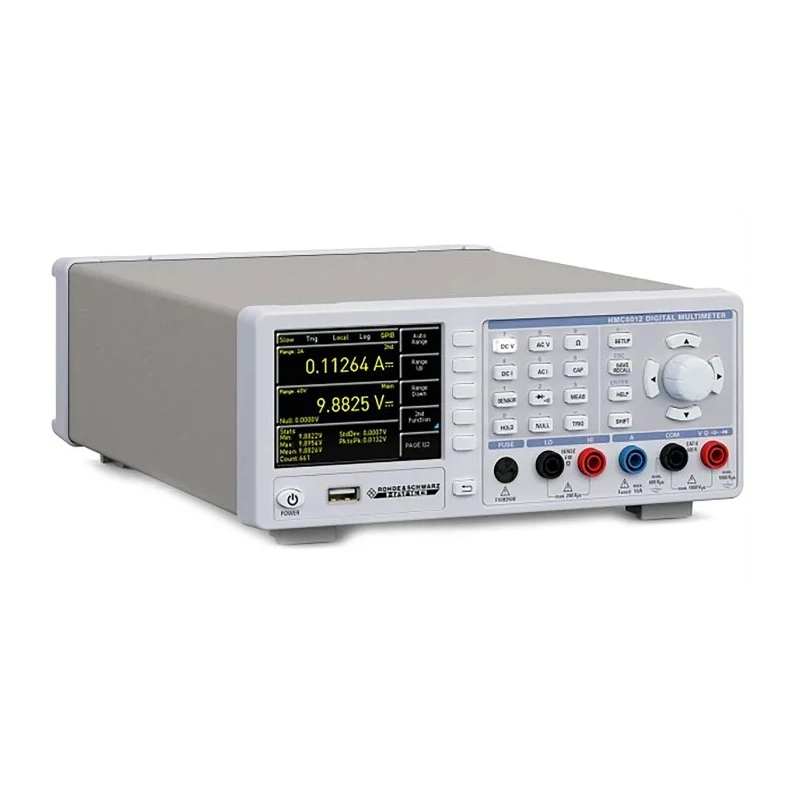

Rohde & Schwarz Bench Multimeter True RMS 10 A AC, 10 A DC, 750 V AC HMC8012

Name: Rohde & Schwarz Bench Multimeter True RMS 10 A AC, 10 A DC, 750 V AC HMC8012
Brand: Rohde & Schwarz
SKU: 301808
Price: 1749.24 USD
Availability: InStock



Category Digital Multimeter Brand Rohde & Schwarz Condition New

Specifications

Country of Origin	Czech Republic
Resolution	1 μV, 100 nA, 1 mΩ, 1 pF, 1 Hz, 0.1 °C/F
Display Type	Digital
Measurement Range	DC to 100 kHz
Brand	Rohde & Schwarz
Height	88mm
Length	222mm
Model	HMC8012
Measurement Rate	up to 200 values/s
Gross Weight	2.7kg
Width	280mm
Maximum Operating Temperature	55°C
Basic accuracy	0.015 % (DC)
Minimum Operating Temperature	0°C
DC Current Accuracy	±0.05 % rdg + 0.01 range
Interfaces	USB flash drive in CSV format
Measurement Functions	V (DC), I (DC), V (AC), I (AC), frequency, DC power, resistance (two and four wire), temperature (PT100/PT500/PT1000), capacitance, diode and continuity test
Resistance Measurement Accuracy	±0.015 % rdg + 0.002 % range
AC Current Accuracy	±0.05 % rdg + 0.05 % Range
Resistance Resolution	1mΩ
AC Current Resolution	100nA ac
DC Current Resolution	100nA dc
Multimeter Type	Bench
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance
Maximum Resistance Measurement	250mΩ
Maximum AC Current Measurement	10A ac
Maximum DC Voltage Measurement	1kV dc
Maximum DC Current Measurement	10A dc
Maximum AC Voltage Measurement	750V ac
Maximum Frequency	999.9kHz
Safety Category Level	CAT I, CAT II
Safety Category Voltage	1kV
Mathematic functions	limit testing, min./max., average, offset, DC power, dB, dBm
HMC8012-G	HMC8012 incl. IEEE-488 (GPIB) interface

Key Features

Features a 5 3/4 digit digital display with 480,000 counts for accurate readings.
Measures AC/DC current up to 10 A and AC voltage up to 750 V.
Offers high resolution with 1 μV voltage and 100 nA current detection.
Equipped with multiple measurement functions including frequency, capacitance, and temperature.
Includes USB, Ethernet, LXI, and IEEE-488 (GPIB) interfaces for versatile connectivity.
Allows data logging to internal memory or USB flash drive in CSV format.
Supports advanced mathematic and statistical functions such as limit testing, min/max, and averages.
Built for industrial, laboratory, and manufacturing test applications with a robust design.

Product Description

Rohde & Schwarz HMC8012 bench multimeter is a high-precision digital test instrument designed for comprehensive electrical measurements requiring true RMS accuracy. Featuring a 5 3/4 digit display with 480,000 counts, it provides extensive measurement ranges without manual range switching. Its capability to measure AC and DC current up to 10 A and voltages to 750 V AC makes it reliable for diverse industrial and laboratory environments.

The instrument supports up to 999.9 kHz frequency measurements and offers resolutions down to 1 μV and 100 nA. With multifunctional measurement capabilities including resistance, capacitance, frequency, and temperature, it serves well for thorough testing scenarios. Connectivity options include USB-TMC, USB-VCP, Ethernet, LXI, and IEEE-488 (GPIB), enabling seamless integration into automated test setups.

Innovative features such as simultaneous display of three measurement functions, integrated watt meter for DC power measurements, and advanced mathematic functions like limit testing and offset enhance its usability in manufacturing, quality control, and maintenance laboratories.

Data logging to internal memory or USB flash drives in CSV format supports detailed record-keeping and analysis. The device is certified for safety with category CAT I and CAT II protection and operates reliably within 0 to 55°C ambient temperature. Lightweight at 2.7 kg and compact dimensions make it suitable for benchtop use across various industrial, electronic, and laboratory applications.

Offers 5 3/4 digit display with 480,000 counts for high accuracy. Measures AC/DC current and AC voltage up to 10 A and 750 V respectively. Supports wide frequency range up to 999.9 kHz. Includes multiple connectivity interfaces for versatile application.

Enables data logging in CSV format via internal or USB memory. Provides comprehensive measurement functions including temperature sensors. Designed with safety category CAT I, CAT II rated for 1 kV operation. Equipped with advanced statistical and mathematic functions.

Compact and portable with 2.7 kg weight and benchtop form factor.

This robust bench multimeter is ideal for industrial, manufacturing, electronic testing, and laboratory measurement applications. Discover a wide range of precision measurement solutions among EnvMart's Digital Multimeter category to complement this instrument.
