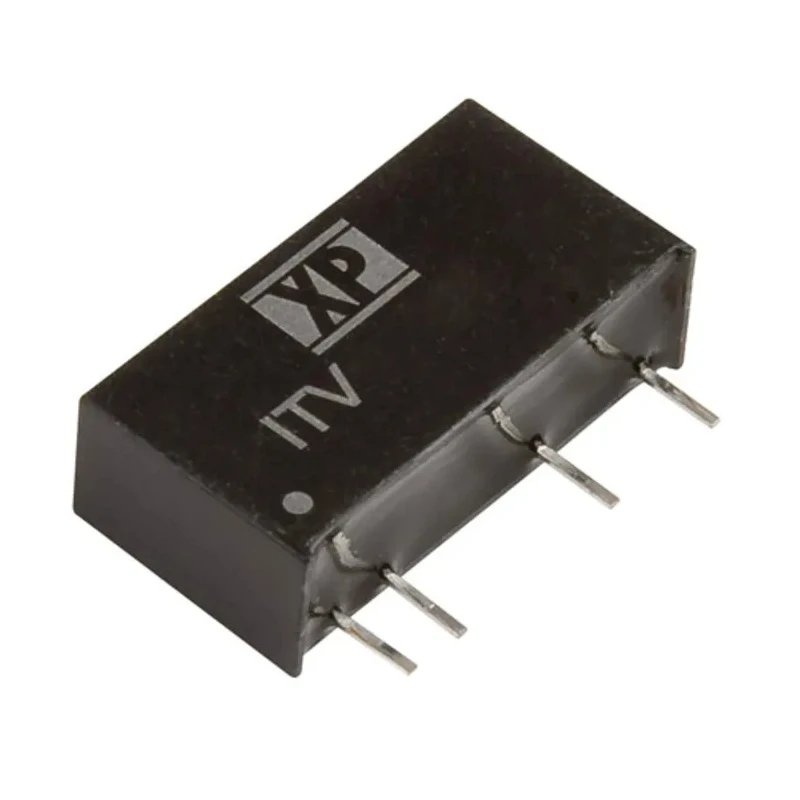

XP Power Isolated SIP DC/DC Converter 12V DC Output, 83.3 mA, 13.2V DC Maximum Input, 1 W Power, Through Hole Mount ITV1212SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ITV DC/DC Converter, 12V dc/ 83 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 19.5mm |
| Model | ITV1212SA |
| Depth | 10mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | ITV |
| Maximum Operating Temperature | +105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3500000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 12.8V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 83.3mA |
| Output Voltage Adjustment Range | 18/75 V |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Isolated SIP package DC/DC converter designed for reliability and robust performance.
- Supports a wide input voltage range from 12.8V to 13.2V DC.
- Maximum output current of 83.3 mA at 12V DC output voltage.
- Operating temperature range from -40°C to +105°C for harsh environments.
- Offers 3 kV DC isolation voltage for enhanced electrical safety.
- High MTBF of 3,500,000 hours indicating excellent reliability.
- Compact SIP package with dimensions 19.5mm x 6mm x 10mm (LxWxD).
- Industry-standard pinout with 8 pins ensuring compatibility.
Product Description
XP Power ITV1212SA is an isolated single-output DC/DC converter with a SIP package designed to deliver 12V DC output at a maximum current of 83.3 mA and power rating of 1W. It supports a narrow input voltage range between 12.8V and 13.2V DC, suitable for stable DC sources requiring voltage conditioning and isolation.
This converter is mounted via through-hole technology, featuring 8 pins with an industry-standard pinout that simplifies PCB integration. The compact size (19.5mm length, 6mm width, and 10mm depth) makes it ideal for space-constrained applications.
The unit provides electrical isolation up to 3 kV DC, enhancing safety in sensitive circuits by preventing high voltage transfer and reducing noise interference. It complies with RoHS directives, ensuring it meets environmental standards.
Its wide operating temperature range of -40°C to +105°C allows application in demanding industrial, medical, telecommunications, and power supply equipment environments where extended temperature tolerance is crucial.
With an impressive Mean Time Between Failures (MTBF) of 3,500,000 hours, the ITV1212SA ensures long-term reliability and performance stability in mission-critical systems. Typical use cases include isolated power management in electronic instrumentation, industrial automation, telecom systems, and embedded control applications.
Isolated SIP package DC/DC converter designed for reliability and robust performance. Supports a wide input voltage range from 12.8V to 13.2V DC. Maximum output current of 83.3 mA at 12V DC output voltage. Mount type: Through Hole for secure PCB installation.
Operating temperature range from -40°C to +105°C for harsh environments. Offers 3 kV DC isolation voltage for enhanced electrical safety. High MTBF of 3,500,000 hours indicating excellent reliability. Compact SIP package with dimensions 19.5mm x 6mm x 10mm (LxWxD).
Industry-standard pinout with 8 pins ensuring compatibility. RoHS compliant ensuring environmental safety. Explore more high-quality DC/DC Converters and isolated power supplies at EnvMart for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ITV1212SA provides a 12V DC output with a maximum output current of 83.3 mA.
It supports a narrow input voltage range between 12.8V and 13.2V DC.
The converter offers an isolation voltage of 3 kV DC, enhancing electrical safety.
This model operates within a temperature range of -40°C to +105°C, suitable for harsh environments.
The dimensions of this converter are 19.5mm in length, 6mm in width, and 10mm in depth.
It features a through-hole mount type for secure installation on PCBs.
The efficiency of the ITV1212SA is rated at 80%.
This model has a single output channel.
The MTBF for the ITV1212SA is 3,500,000 hours, indicating high reliability.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It comes in a compact SIP package, which is standard for this type of converter.
This model is suitable for isolated power management in electronic instrumentation, industrial automation, and telecom systems.
