Omron Monitoring Relay 3 Phase SPDT Contact Configuration DIN Rail Mount 200, 480V AC K8DT-PH1CN

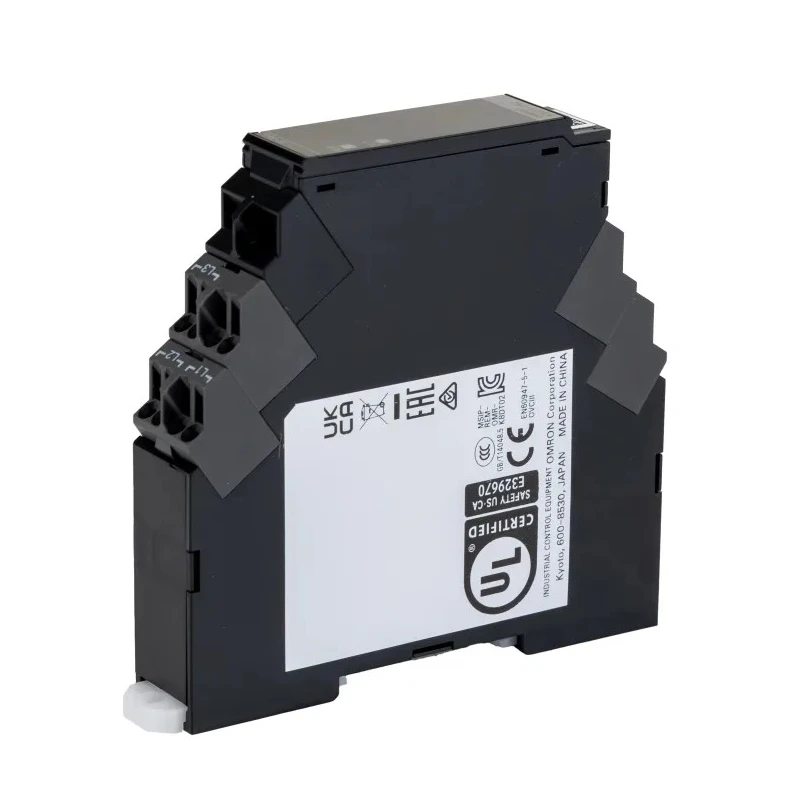

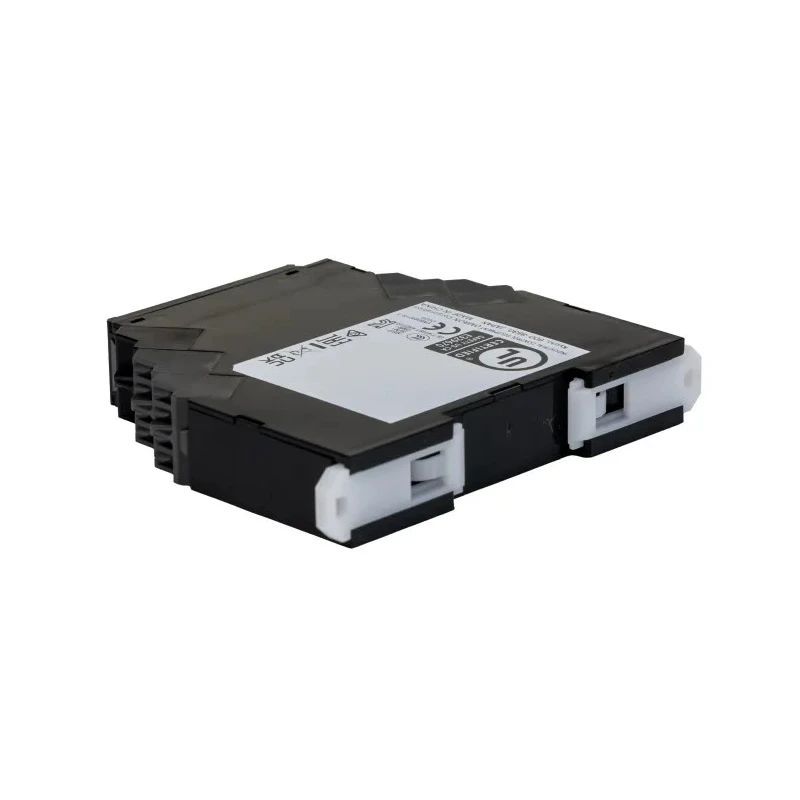

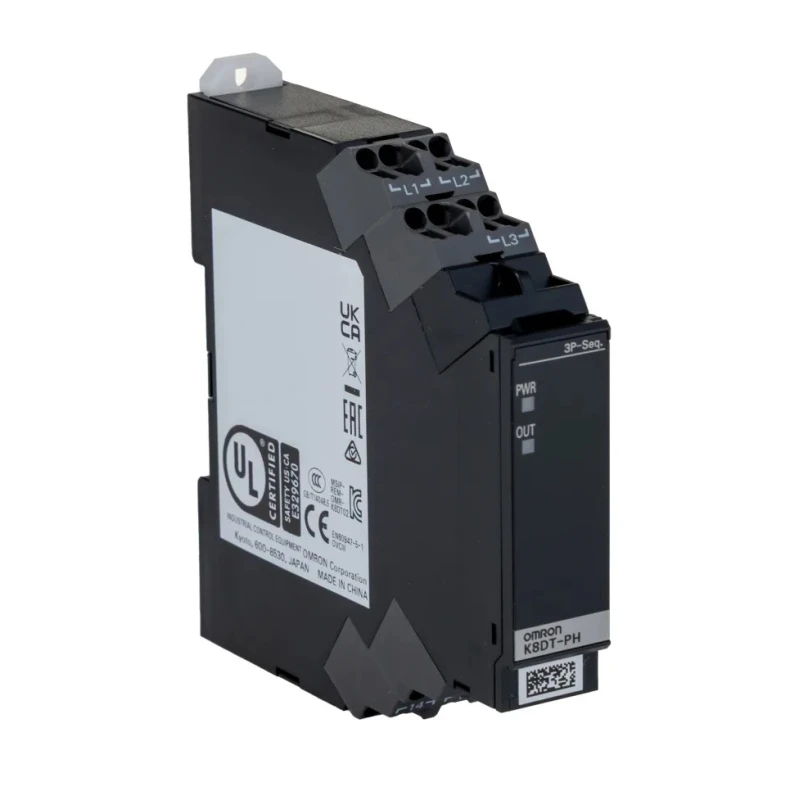

Omron K8DT-PH1CN Monitoring Relay is a robust device designed for continuous monitoring of three-phase electrical supply systems, providing phase sequence verification and protection. The relay features a single-pole double-throw (SPDT) contact configuration and is mounted conveniently on standard DIN rails, making it suitable for integration into existing electrical control panels and automation systems.

Operating at supply voltages of 200 and 480 volts AC, it monitors phase conditions with high sensitivity to detect phase loss, sequence faults, and frequency variations within the 45 to 65 Hz range. Push-in terminals enable quick and secure wiring, reducing setup time without specialized tools. The IP20 rating ensures that terminals are touch-safe, enhancing operator safety.

This device operates within a wide temperature range of -20°C to +60°C, making it suitable for demanding industrial environments where thermal conditions vary significantly. Its compact dimensions - 90 mm length, 17.5 mm width, and 90 mm height - allow efficient space utilization within electrical enclosures.

Common applications include industrial automated machinery, electrical panels requiring phase monitoring, and systems demanding reliable phase sequence verification to prevent equipment damage or failure due to phase issues. The product meets CE and UL certification standards, aligning with international safety and performance benchmarks.

Designed for three-phase electrical supply phase sequence monitoring. Reliable SPDT contact configuration for precise control. Compact DIN rail mounting simplifies integration and maintenance. Wide operating temperature range suitable for industrial settings.

Push-in terminals provide fast and secure wiring installation. Supports 200 and 480 V AC supply voltages, adaptable to various systems. IP20 touch-safe terminals enhance operator safety during handling. Frequency monitoring range of 45 to 65 Hz facilitates phase condition detection.

Compact size optimizes space usage in control panels. Compliance with CE and UL certifications ensures quality and reliability.

Omron K8DT-PH1CN is essential for safeguarding sensitive industrial equipment from phase irregularities and ensuring operational continuity. It is ideal for use in electrical control panels of manufacturing plants, HVAC systems, water treatment facilities, and other industrial automation applications.
