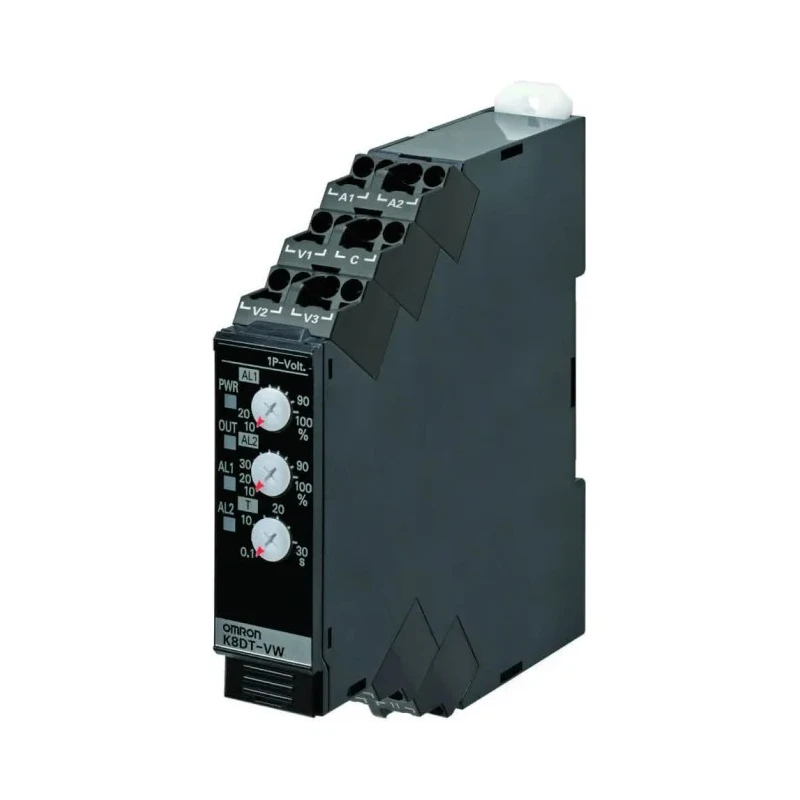

Omron Single Phase Monitoring Relay SPST Contact DIN Rail Mount 26.4V AC, 20.4 - 26.4V DC K8DT-VW3TD

Omron K8DT-VW3TD Monitoring Relay is a high-quality industrial component designed for single-phase voltage supervision in automation and electrical control systems. The device features an SPST contact configuration and is mounted securely on standard DIN rails for compact and efficient panel integration. With a supply voltage range of 20.4 to 26.4 V DC and a nominal 26.4 V AC rating, the relay offers precise overvoltage and undervoltage detection to protect equipment from harmful supply variations.

Constructed with push-in terminals, the K8DT-VW3TD enables quick and tool-free wiring, reducing installation times and errors. It handles moderate contact currents up to 10 amperes, allowing direct control of relevant electrical loads in control circuits. The relay is housed in an IP20 enclosure, ensuring protection against fingers and external contact, suitable for protected indoor environments.

This relay complies with internationally recognised standards EN 60947-5-1 and UL 60947-5-1 and meets RoHS regulations, guaranteeing safety and environmental responsibility. It operates efficiently with a 1.8 VA power consumption, maintaining performance across an ambient temperature range from -20 to 60 °C, which suits diverse industrial settings.

Typical applications include voltage monitoring in motor starters, PLC input supply supervision to prevent brownouts, and auxiliary transformer output monitoring. Its compact dimensions of 90 mm height, 90 mm length, and 17.5 mm width make it ideal for retrofit into existing DIN rail control panels to enhance control reliability and operational safety.

Set contains one Omron K8DT-VW3TD Monitoring Relay ready for installation in electrical control and automation systems. Provides reliable voltage monitoring for single-phase electrical systems. Equipped with a 10 A contact rating for moderate load control.

Push-in terminals facilitate tool-free and rapid wiring connections. Compact DIN rail mount design saves panel space and simplifies installation. Protected by an IP20 rated enclosure for indoor industrial use. Meets EN 60947-5-1, UL 60947-5-1, and RoHS compliance standards.

Operation temperature range suitable for various industrial environments from -20 to 60 °C. Consumes low power with 1.8 VA supply consumption during operation.
