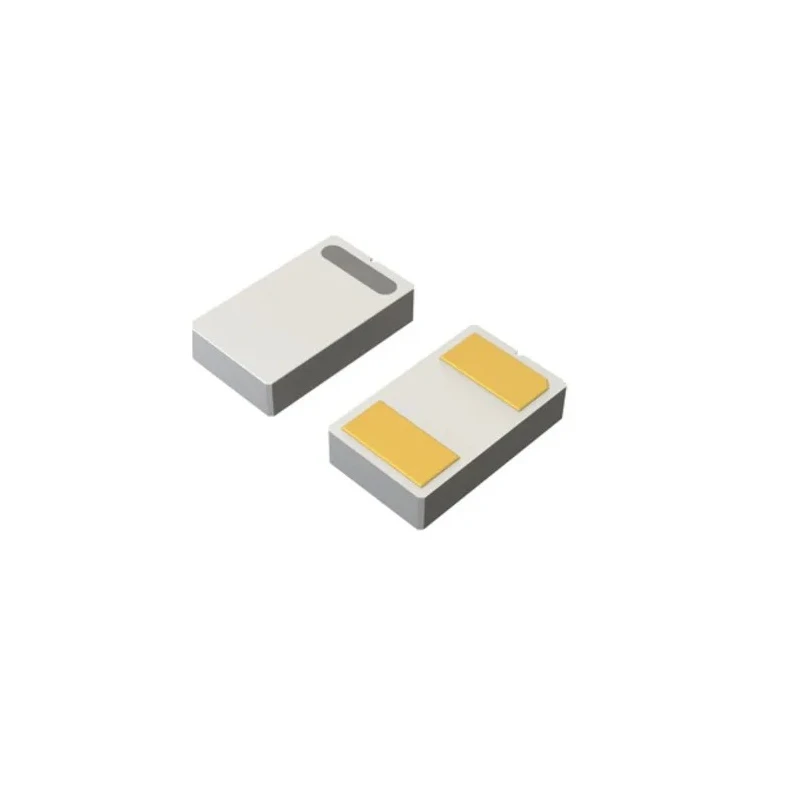

ROHM 40 V 1 A Surface Mount Schottky Barrier Diode SOD-882 (DSN1006-2) RB161QS-40T18R
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB161QS-40T18R |
| Mount Type | Surface |
| Series | RB161QS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-882 (DSN1006-2) |
| Minimum Operating Temperature | -55°C |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 7A |
| Maximum Forward Voltage Vf | 600mV |
Key Features
- Compact SOD-882 (DSN1006-2) package facilitates space-saving PCB designs.
- Maximum continuous forward current of 1 ampere ensures reliable current handling.
- Maximum forward voltage drop of 600 millivolts reduces power loss.
- Operating temperature range from -55°C to 150°C supports harsh environments.
- Peak non-repetitive forward surge current rating of 7 amperes for transient robustness.
- Single diode configuration ideal for rectification in power supplies and switching circuits.
- Halogen-free construction supports environmentally friendly applications.
- Not compliant with automotive standards; suitable for general industrial and electronic applications.
Product Description
ROHM RB161QS-40T18R is a Schottky barrier diode with a maximum repetitive peak reverse voltage of 40 volts and a maximum forward current of 1 ampere. It is housed in the ultra-small SOD-882 (DSN1006-2) surface mount package which is suitable for compact electronic designs.
This diode provides low forward voltage drop at 600 millivolts, which enhances efficiency in power rectification applications. The operating temperature range from -55°C to 150°C enables the diode to function reliably in industrial, electronic, and power management circuits with temperature extremes.
Its peak non-repetitive forward surge current of 7 amperes affords protection against transient current spikes often encountered during power switching. The single diode configuration implies usage in standard rectifier circuits, power supply units, and other discrete semiconductor applications.
ROHM's Schottky Barrier Diode is halogen-free, aligning with green manufacturing protocols.
This product is not designed to meet automotive standards but is well-suited for general-purpose electronic and industrial applications including power supply designs, signal processing, and energy-saving circuit implementations.
Compact SOD-882 surface mount package reduces board space requirements. Low forward voltage minimizes conduction losses. Wide operating temperature range allows flexible deployment. High surge current capacity ensures durability under transient conditions.
Environmentally compliant with halogen-free materials. Reliable single diode configuration for rectification and switching. Not suitable for automotive-grade implementations. Robust design meets industrial electronic component demands.
Explore more semiconductor and Schottky diode products in the Electronics & Electricals category on EnvMart for diverse industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of the RB161QS-40T18R is 40 volts.
This diode has a maximum continuous forward current of 1 ampere.
The maximum forward voltage drop is 600 millivolts, which helps reduce power loss.
It operates within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The peak non-repetitive forward surge current rating is 7 amperes, providing robustness against transient conditions.
The diode is housed in a compact SOD-882 (DSN1006-2) surface mount package, which is designed for space-saving PCB layouts.
This model is suitable for general industrial and electronic applications, including power supply designs and switching circuits.
No, this diode is not compliant with automotive standards; it is intended for general-purpose applications.
The diode has a single configuration, making it ideal for standard rectification in various circuits.
The RB161QS-40T18R is halogen-free, supporting environmentally friendly applications.
The country of origin for this diode is India.
This diode is part of the RB161QS series.
