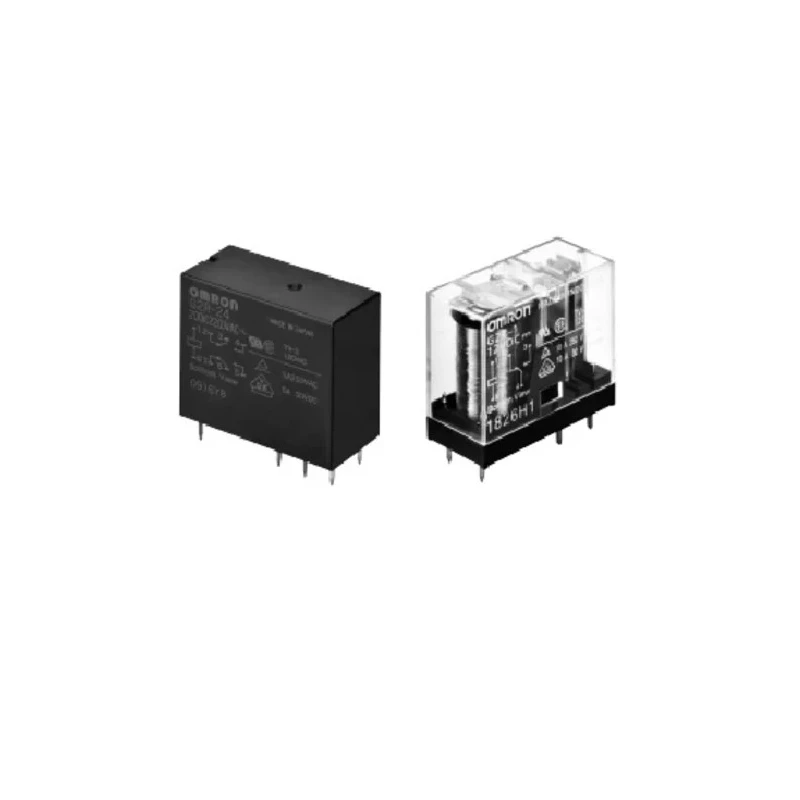

Omron Power Relay SPDT PCB Mount 24V AC Coil 8A Switching Current G2R-1 AC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G2R-1 AC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 260Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 900mW |
Key Features
- Coil resistance of 260 ohms ensures efficient operation.
- Suitable for switching AC voltage up to 240V and DC voltage up to 60V.
- Contact material made of silver alloy offering reliable conductivity.
- Operating temperature range from -40°C to 70°C for versatile applications.
- Screw terminal type for secure and robust electrical connections.
- Low contact resistance of 100mΩ to minimize energy loss.
- Compliance with RoHS standards for environmental safety.
- Ideal for industrial, automation, electrical, and PCB applications.
Product Description
Omron G2R-1 AC24 is a high-quality power relay designed for PCB mounting with a 24V AC coil and a switching current capacity of 8A. It features a single pole double throw (SPDT) contact configuration and is part of the reliable G2R series known for durability and consistent performance.
The relay's compact size with dimensions 50mm in length, 15mm height, and 10mm width makes it suitable for tight PCB spaces. The coil resistance of 260 ohms and coil power consumption of 900mW ensures energy-efficient operation, while the coil current is approximately 46.5 mA.
It supports switching AC voltage up to 240V and DC voltage up to 60V, making it versatile for different electrical loads. The contact material is silver alloy, chosen for excellent conductivity and durability, with a low contact resistance of 100mΩ to reduce power losses during switching.
Operable in a temperature range from -40°C to 70°C, this relay is suitable for various industrial and automation environments. It utilizes screw terminals to guarantee stable and secure connections which are critical in maintaining circuit integrity under vibration or mechanical stresses.
The relay complies with RoHS standards, ensuring it meets environmental and safety regulations. Applications include industrial automation systems, control units, electrical equipment, and general PCB relay needs where stable switching and reliability are essential.
Compact footprint ideal for PCB installation. Energy-efficient coil with 260Ω resistance. High switching capacity with 8A current rating. Silver alloy contact material for durability. Wide operating temperature range from -40°C to 70°C.
Screw terminal type ensures secure connections. Meets RoHS environmental compliance standards. Suitable for industrial, automation, and electrical applications. Designed for general purpose power relay usage. Find this Omron power relay and more reliable electrical components at EnvMart for your industrial automation and PCB relay requirements.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 8A, making it suitable for various electrical loads.
The coil voltage for this relay is 24V AC, which is essential for its operation.
The dimensions of this relay are 50mm in length, 15mm in height, and 10mm in width, allowing for compact PCB installation.
It features a single pole double throw (SPDT) contact configuration, providing versatile switching options.
The contact material is made of silver alloy, which offers reliable conductivity and durability.
This model operates within a temperature range of -40°C to 70°C, making it suitable for various environments.
It utilizes screw terminals, ensuring secure and robust electrical connections.
The coil resistance is 260 ohms, which contributes to its energy-efficient operation.
This relay can switch AC voltage up to 240V, making it versatile for different applications.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The contact resistance is low at 100mΩ, which helps minimize energy loss during switching.
It is suitable for industrial automation systems, control units, electrical equipment, and general PCB relay needs.
