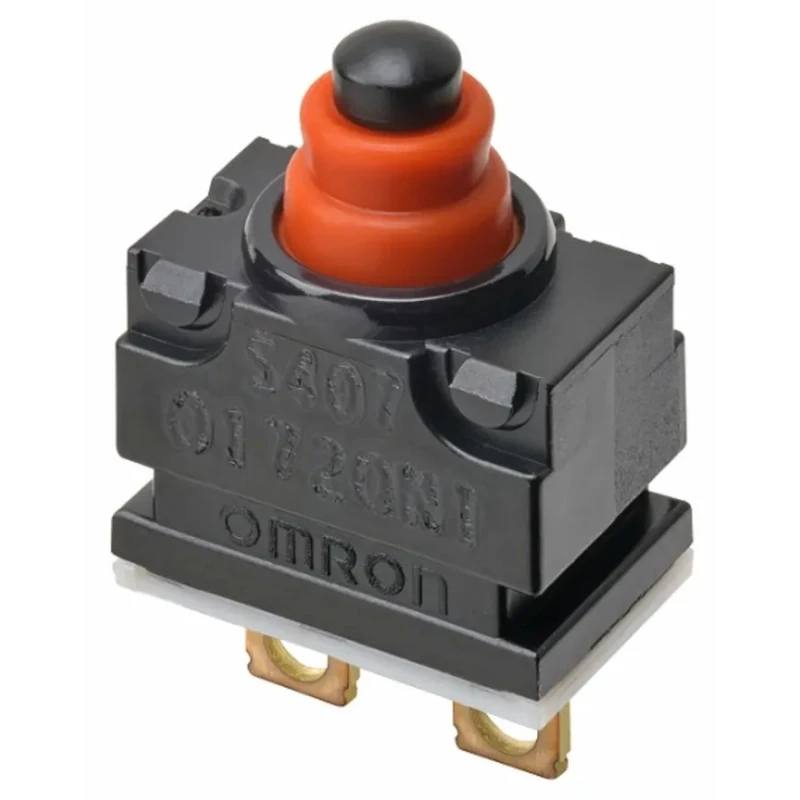

Omron Pin Plunger Subminiature Micro Switch, Solder Terminal, 1mA, 13.5V DC, SPST-NC, IP67 D2GW-A03F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-A03F |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NC |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- The actuator type is a precise pin plunger.
- This switch supports solder terminal connections.
- It offers reliable micro-load operation with high contact reliability.
- The symmetrical design enables versatile actuator variations and simpler design integration.
- It operates within a temperature range of -40°C to 85°C.
- The device features a sliding structure ensuring quiet operation.
- It is RoHS compliant and offers an IEC IP67 degree of protection.
- The compact form factor contributes to space-saving applications.
Product Description
Omron D2GW-A03F Pin Plunger Subminiature Micro Switch is a compact, sealed ultra subminiature switch designed for precise control in electronic and industrial automation applications. Featuring a pin plunger actuator and solder terminal type, this switch supports a contact current of 1mA and a DC voltage rating of 13.5 V. The SPST-NC contact configuration ensures normally closed operation, suitable for control and signal circuits requiring reliable switching.
The switch has a symmetrical shape that simplifies design integration and supports actuator variations to accommodate various operating mechanisms with diverse shapes and materials. Its sliding structure provides quiet operation, reducing noise in sensitive environments. The D2GW series delivers micro-load support thanks to its high contact reliability, making it suitable for sensitive circuits.
Engineered for durability, the device holds an IP67 protection rating, which ensures resistance against dust and water ingress, making it ideal for industrial, laboratory, HVAC, manufacturing, and electronic equipment where environmental protection is critical. The operating temperature range from -40°C to 85°C extends the usability to harsh operating environments.
The actuator type is a precise pin plunger for accurate switch activation. Solder terminal type allows robust, soldered connections for secure electrical contacts. Contact current rating is 1mA suitable for micro-load applications.
Contact configuration is SPST-NC to support normally closed operation. The switch is RoHS compliant, ensuring it meets environmental safety standards. IEC IP67 rated for dust tight and water immersion protection. Symmetrical design and slim form factor optimize space usage in tight assemblies.
Quiet sliding operation helps reduce operating noise in sensitive setups. Manufactured in China under Omron quality standards ensuring reliability and performance.
This micro switch is ideal for use in electronic instrumentation, precision control systems, household appliances, industrial control equipment, and HVAC devices requiring a compact, reliable switching solution with high durability and environmental protection.
For specialized applications requiring highly reliable, sealed Micro Switches with tight specifications, the Omron D2GW-A03F offers a versatile and trusted solution. Explore the full range of Omron switches on EnvMart for intricate electrical and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is SPST-NC, which means it is a normally closed switch.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The maximum contact current rating for this switch is 1mA, suitable for micro-load applications.
This switch features solder terminal connections, allowing for robust and secure electrical contacts.
The device has an IP67 rating, ensuring it is dust-tight and protected against water immersion.
It utilizes a pin plunger actuator type, which allows for precise switch activation.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The specific dimensions and weight are not provided in the available information.
This micro switch is suitable for use in electronic instrumentation, precision control systems, household appliances, and HVAC devices.
The D2GW-A03F is manufactured in China.
The series name for this model is D2GW.
The sliding structure provides quiet operation, reducing noise in sensitive environments.
