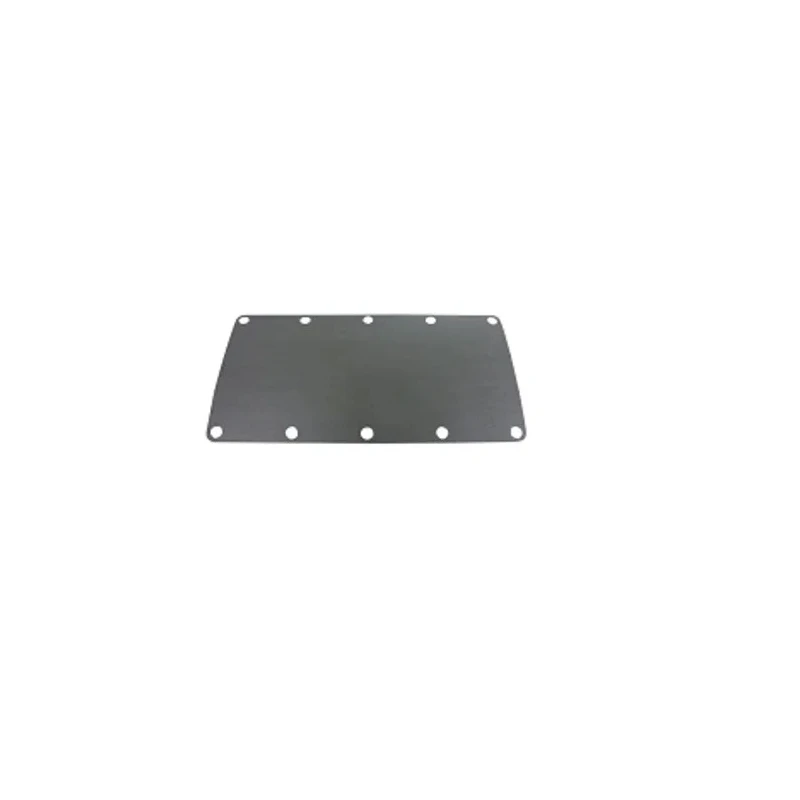

Panasonic EYGR Series Self-Adhesive Thermal Interface Pad Graphite TIM 0.35 mm Thick 180 mm x 180 mm EYGR1818ZRX2

Panasonic EYGR1818ZRX2 self-adhesive thermal interface pad uses graphite TIM for superior thermal conductivity and compressibility, enabling effective heat management in electronic, electrical, and HVAC applications.

This 180 mm x 180 mm sheet has a thickness of 0.35 mm and a thermal conductivity rating of 200 W/mK, allowing it to reduce thermal resistance caused by surface gaps, warpage, and distortions efficiently.

The self-adhesive nature simplifies installation processes, eliminating the need for extra attachment materials. Its robust thermal tolerance spans a wide temperature range from -55°C up to 400°C, making it suitable for harsh operating conditions.

The grey graphite colour indicates the high-quality conductive material providing reliability and extended service life in critical thermal management settings. Thickness of 0.35 mm for optimized thermal contact. Sheet size of 180 mm by 180 mm supports diverse electronic component layouts.

Thermal conductivity rated at 200 W/mK for efficient heat transfer. Self-Adhesive backing for secure and easy mounting. Wide operating temperature range from -55°C to 400°C. RoHS compliant ensuring environmentally friendly material usage.

Manufactured in Japan to high quality standards.

This thermal interface pad is ideal for industrial, laboratory, electronics manufacturing, HVAC cooling systems, and other applications requiring effective heat dissipation and thermal stability.
