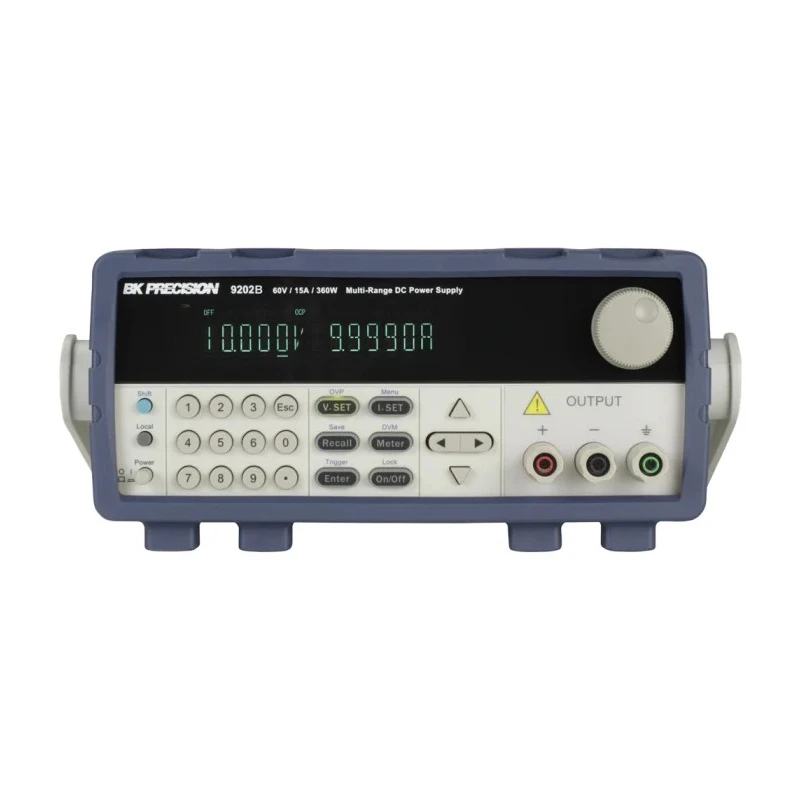

BK Precision Analogue Bench Power Supply 1-Output 0 V to 60 V 360 W 15 A Max BK9202B

BK Precision BK9202B analogue bench power supply provides precise and flexible DC power source within a wide range of voltage and current settings. This 1-output power supply supports output voltage from 0 V up to 60 V, delivering up to 360 W total power and a maximum current of 15 A, making it suitable for various industrial, laboratory, construction, and electronics testing applications.

The 9200B Series model BK9202B features multi-ranging operation that dynamically recalculates voltage and current limits per the selected set point to provide maximum possible power output. Its analogue output is supported by high programming and read-back resolution of 1 mV and 0.1 mA respectively, allowing for fine control and measurements.

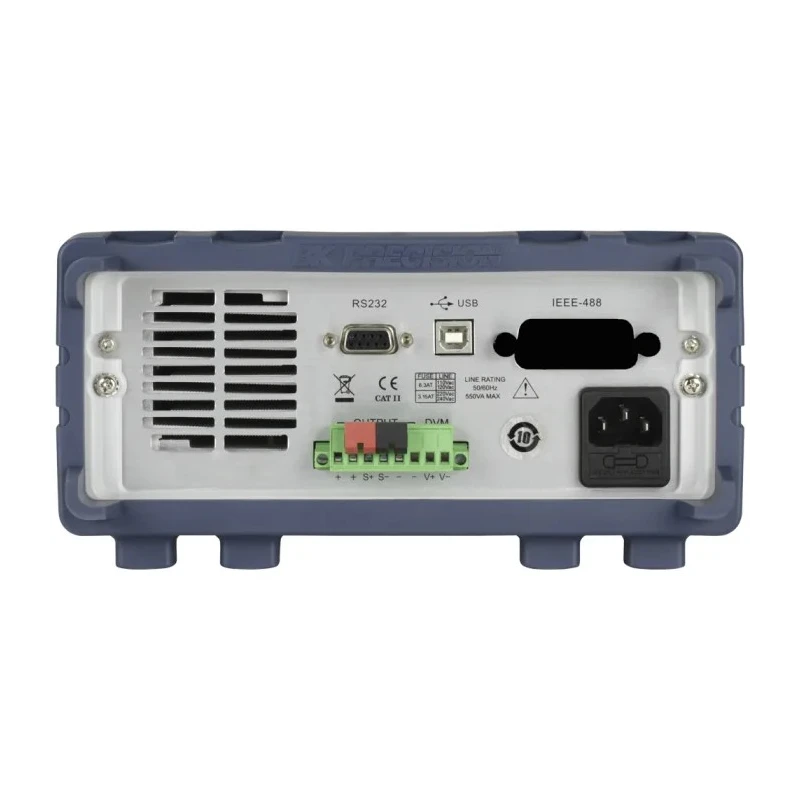

This power supply includes a convenient output timer function and list mode programming, enhancing operational flexibility. It is equipped with standard USB (USBTMC-compliant) and RS232 interfaces compatible with SCPI commands for seamless integration into automated test systems.

Calibration is certified with UKAS, recognized internationally for measurement traceability and quality assurance. The unit's compact form factor with 214.5 mm width, 88.2 mm height, and 354.6 mm depth facilitates easy bench or rack mounting setups while operating reliably within specified temperature limits of 0°C to 40°C.

Manufactured in China and compliant with ISO 16750, this BK Precision power supply is ideal for powering and simulating electrical loads in design validation, repair, and testing environments across industrial machines, electrical engineering, and laboratory instrumentation applications.

Provides maximum output current of 15 A with 360 W power output. Supports 0 V to 60 V programmable output voltage with analogue control. Enhanced precision with 1 mV / 0.1 mA programming and read-back resolution. Includes USBTMC-compliant USB and RS232 interfaces supporting SCPI protocol.

Equipped with UKAS calibration for accuracy and traceable quality assurance. Compact bench or rack-mountable design with dimensions 214.5x88.2x354.6 mm. Compatible with operating temperatures from 0°C to 40°C. Designed for industrial, laboratory, construction, electronics testing & measurement fields.

Find this BK Precision analogue Bench Power Supply and similar high-quality test equipment in the EnvMart Measuring & Testing Instruments category for your professional requirements.
