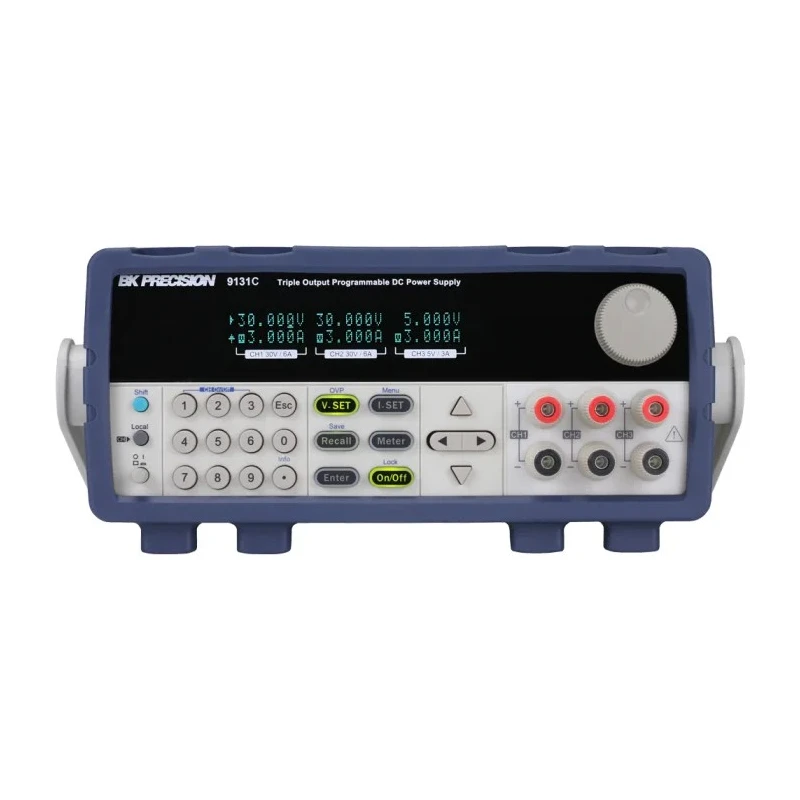

BK Precision Analogue Bench Power Supply 3-Output 0 V to 5 V 375 W 3 A Max BK9131C

The BK Precision BK9131C analogue bench power supply offers three independent and electrically isolated linear programmable DC outputs with a maximum power rating of 375 W. This model supports output voltages from 0 V up to 5 V and currents up to 3 A per channel, suitable for a range of industrial, laboratory, construction, and testing applications.

The power supply allows outputs to be adjusted individually or combined in series and parallel configurations, providing increased voltage or current as required. The tracking mode enables users to set program ratios between channels for synchronized output management. Its analog interface includes a rotary knob and dedicated keys with cursors to easily and precisely modify voltage and current values.

Designed to operate in environments from 0°C to 40°C, it incorporates low noise linear regulation ensuring clean, stable output power. Enhanced safety features include overvoltage protection, overtemperature protection, and keylock capability to prevent accidental adjustments.

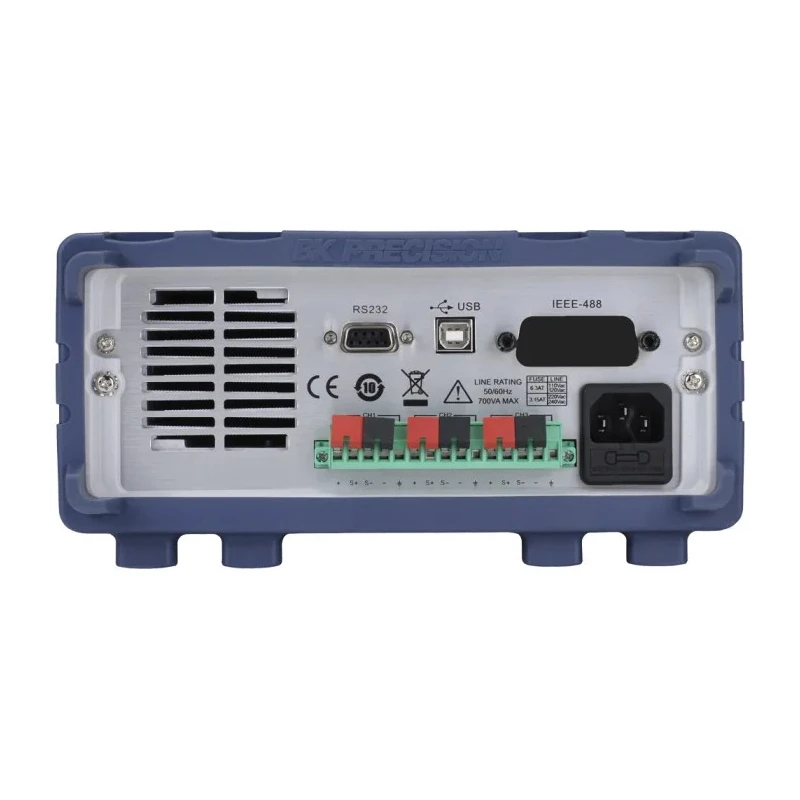

Remote control capabilities are provided through USB (USBTMC-compliant) and RS232 ports that support SCPI command sets for integration with PC-based control and automation systems. Additionally, users have access to an NI certified LabVIEW driver and softpanel, facilitating remote control, test sequence creation, and data logging.

The supply's compact half-rack 19-inch form factor allows easy installation in test benches or rack systems. This makes it ideal for electronics manufacturing, repair, research laboratories, HVAC systems testing, and water treatment facility control panels.

Provides three independent and electrically isolated outputs, each adjustable. Maximum output voltage of 5 V and maximum output current of 3 A. Supports series and parallel modes to combine outputs for higher voltage or current.

Features tracking mode allowing user-configurable ratios between channels for enhanced flexibility. Equipped with a timer-controlled output adjustable from 0.1 to 99999.9 seconds. Front panel with rotary knob and keys for quick and precise voltage and current setting.

Low noise linear regulation ensures clean and stable power output. Remote control via standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands. Includes overvoltage and overtemperature protection along with keylock function for user safety.

Compact half-rack 19-inch form factor suitable for side-by-side rack mounting. Explore the full range of industrial Bench Power Supplies at EnvMart for reliable and precise DC power solutions.
