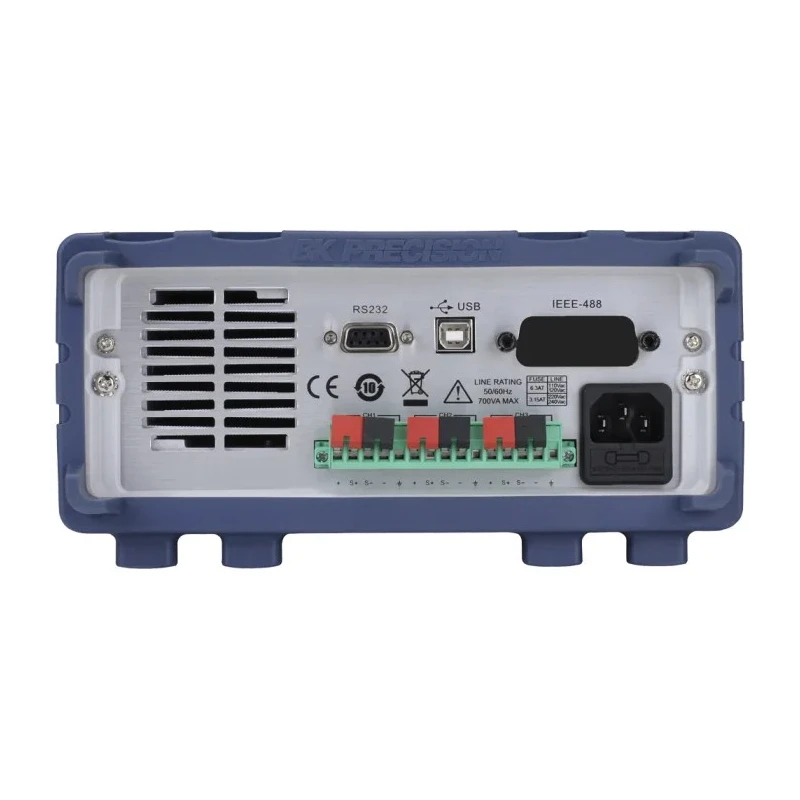

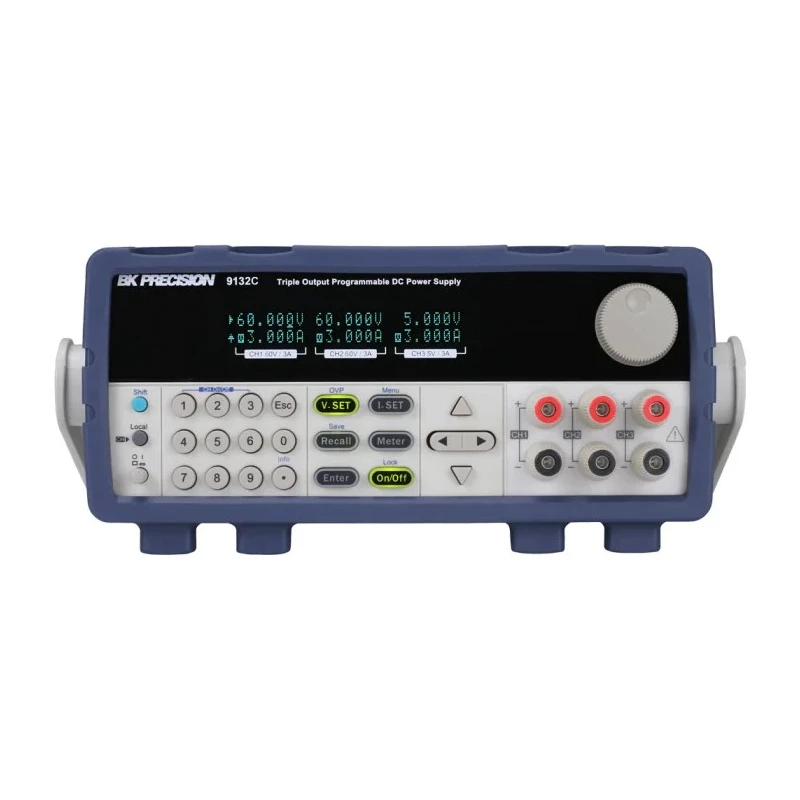

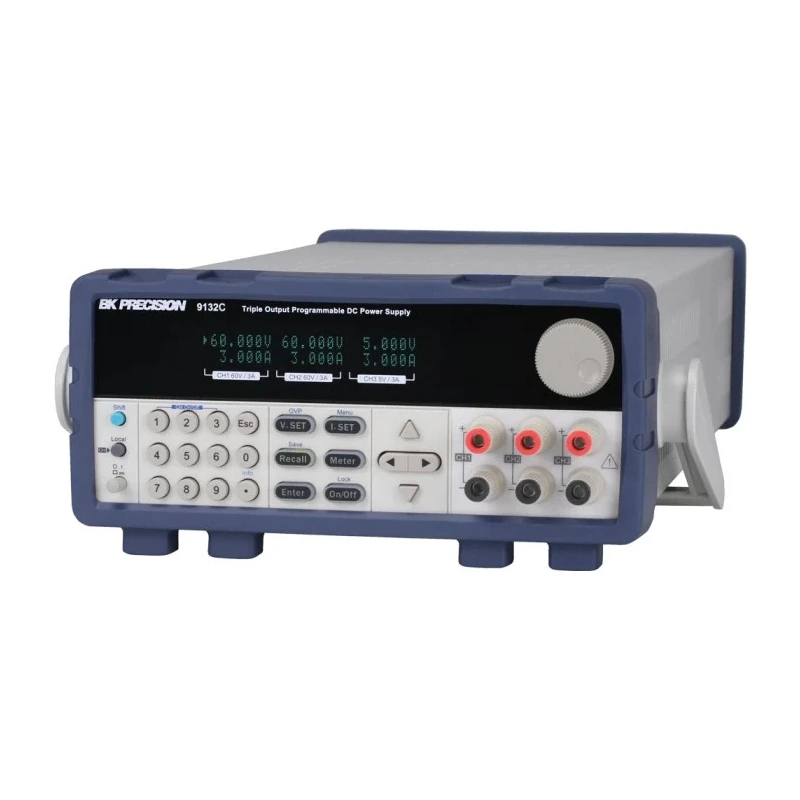

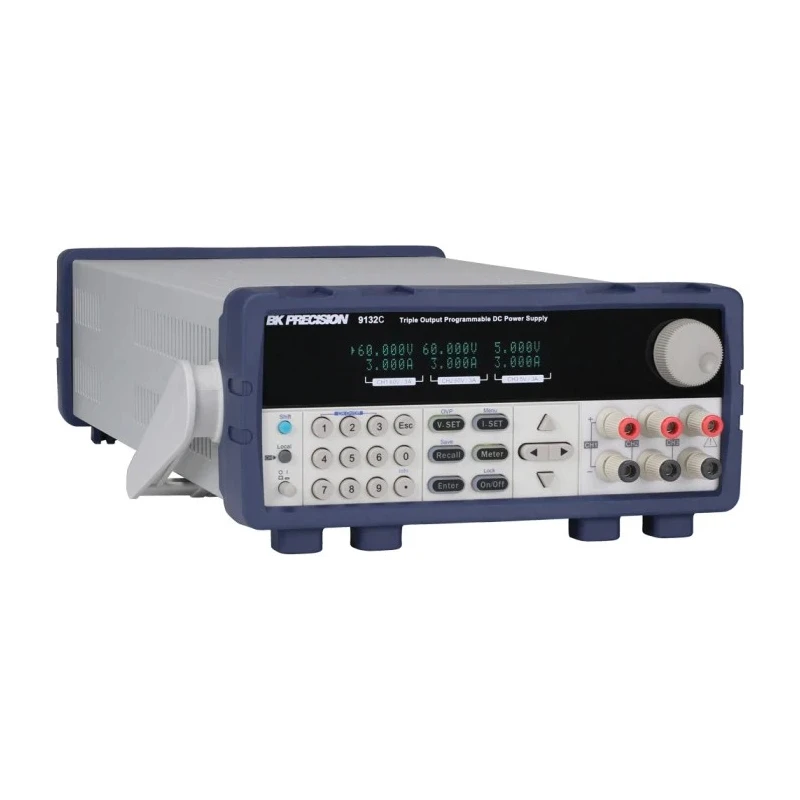

BK Precision Analogue Bench Power Supply 3-Output 0 V to 5V 375 W 3 A Max RSCAL BK9132C
Specifications
| Country of Origin | China |
|---|---|
| Brand | BK Precision |
| Power | 375W |
| Height | 88.2mm |
| Model | BK9132C |
| Depth | 445mm |
| Width | 214.5mm |
| Output type | Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Standard USB (USBTMC-compliant), RS232 supporting SCPI commands for remote control |
| Number of outputs | 3 |
| Maximum Output Current | 3A |
| Standards/Approvals | ISO 16750 |
| Calibrated | RSCAL |
| Maximum Output Voltage | 5V |
| Maximum Supply Voltage | 80V |
| Minimum Supply Voltage | 0V |
| Digital/Analogue | Analogue |
| Minimum Output Current | 0A |
Key Features
- Features three isolated outputs adjustable independently or combined in series or parallel.
- Supports tracking mode with user-configurable ratios between channels.
- Equipped with front panel keys and rotary knob for precise voltage and current settings.
- USB (USBTMC-compliant) and RS232 interfaces enable remote control with SCPI commands.
- Provides low noise linear regulation and high resolution of 1 mV and 1 mA.
- Includes overvoltage and overtemperature protection plus a keylock function for safety.
- Compact 19-inch half-rack form allows rack mounting of two units side-by-side.
- Calibrated with RS Calibration to ensure accuracy and reliability.
Product Description
BK Precision BK9132C is a versatile analogue bench power supply designed for industrial, laboratory, and manufacturing applications requiring precise and reliable DC power with three independent outputs. The outputs offer 0 V minimum to 5 V maximum voltage range, with maximum current up to 3 A and power rating of 375 W, suitable for powering a wide range of electronic devices and test circuits.
Each of the three outputs is electrically isolated, allowing flexible combinations either independently, in series for higher voltage, or in parallel for higher current delivery. The unit supports tracking mode with user-configurable ratios between channels, facilitating complex power sequencing and testing scenarios.
User operation is streamlined through front panel keys and a rotary knob with cursor display, enabling rapid and accurate setting of voltage and current values. The device features low noise linear regulation, ensuring stable and clean DC outputs critical for sensitive test and measurement tasks.
Remote control capabilities include standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands, allowing integration into automated test setups and PC-based control software. A certified LabVIEW driver and softpanel software are also available for test sequence generation and data logging.
Safety is paramount with built-in overvoltage protection and overtemperature protection circuits, alongside a keylock function to prevent unauthorized changes during operation. Three independent and electrically isolated outputs with flexible configuration.
High programming and readback resolution of 1 mV and 1 mA for precision. Standard USB and RS232 interfaces for remote control and automation. Compact half-rack form factor suitable for rack mounting. Calibrated with RS Calibration ensuring traceability and accuracy.
This Bench Power Supply is ideal for industrial testing, electronics R&D, production line power supply, laboratory instruments powering, and educational electronics labs requiring stable and programmable DC power. It combines flexibility, safety, and precision in a compact and robust instrument.
Explore more from BK Precision and other high-quality bench power supplies on EnvMart for your precision power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 5V.
It features three independent outputs.
Each output can deliver a maximum current of 3A.
The power rating of this bench power supply is 375W.
The dimensions are 214.5mm in width, 445mm in depth, and 88.2mm in height.
The operating temperature range is from 0°C to 40°C.
It supports standard USB (USBTMC-compliant) and SCPI commands for remote control.
It includes overvoltage protection, overtemperature protection, and a keylock function for safety.
Yes, the outputs can be combined in series for higher voltage or in parallel for higher current delivery.
The programming and readback resolution is 1 mV for voltage and 1 mA for current.
It complies with ISO 16750 standards.
