| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B27-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 27V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 300Ω |
| Typical Voltage Temperature Coefficient | 21.4mV/K |

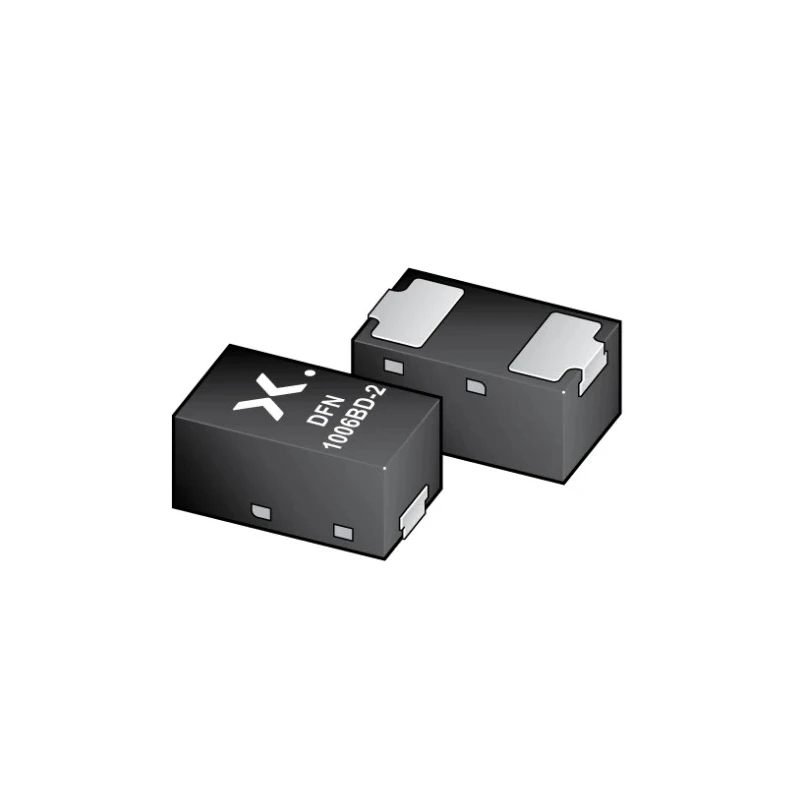

Nexperia BZX884S-B27-QYL is a general purpose Zener diode designed for voltage regulation in electronic circuits with a nominal Zener voltage of 27 V and a maximum power dissipation of 365 mW. It is housed in a compact DFN1006BD-2 2-pin surface mount package that measures 1 mm in length and 0.47 mm in height, ideal for high-density PCB layouts.
The diode features a voltage tolerance of ±2 % ensuring reliable voltage regulation within critical parameters. It supports a test current of 5 mA and offers a maximum reverse leakage current of only 50 nA, maintaining circuit efficiency and minimizing power loss.
Operating temperature ranges from -55°C to 150°C, making it suitable for demanding industrial, automotive, and commercial electronic applications. The diode complies with RoHS standards and the AEC-Q101 automotive qualification, endorsing its robustness and quality for use in automotive electronics systems.
This Zener diode has a maximum Zener impedance of 300 Ω and a typical voltage temperature coefficient of 21.4 mV/K, providing stable operation over temperature variations. Its single diode configuration with surface mount 2-pin design offers easy installation and reliability with side-wettable flanks for enhanced solder joint strength.
This component is widely used in electronic regulation circuits, power supplies, voltage reference circuits, and automotive electronics for protecting components by maintaining stable reference voltages.
Nominal 27 V Zener voltage with 2 % tolerance for precise regulation. 365 mW power dissipation rating for handling moderate power loads. Compact 2-pin DFN1006BD-2 surface mount package streamlines PCB design. Wide operating temperature range from -55°C to 150°C suitable for harsh environments.
Low maximum reverse leakage current of 50 nA enhances efficiency. RoHS compliant and certified to AEC-Q101 automotive standard. Stable voltage with 300 Ω maximum Zener impedance. Typical voltage temperature coefficient of 21.4 mV/K ensures thermal stability.
Single diode configuration suitable for voltage regulation and protection circuits. Explore more Electronics & Electricals components like Zener Diodes at EnvMart to meet your industrial, automotive, and electronic circuit design requirements.
