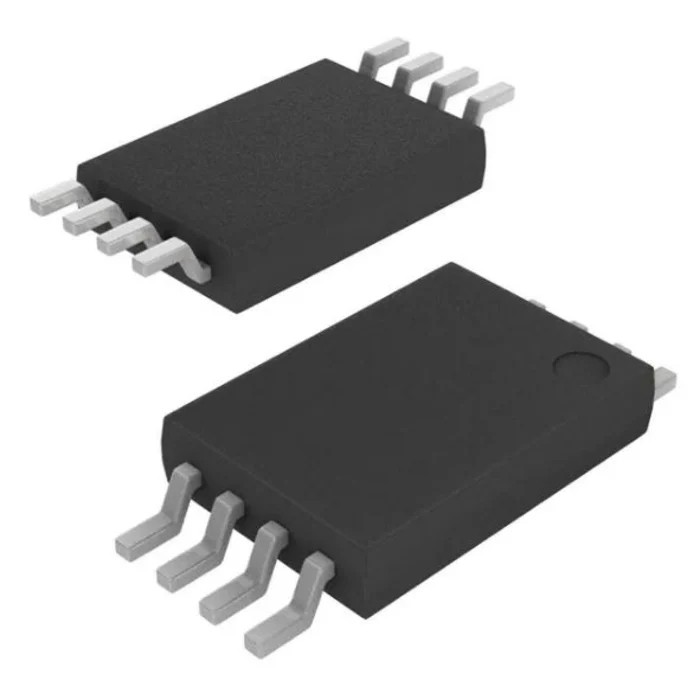

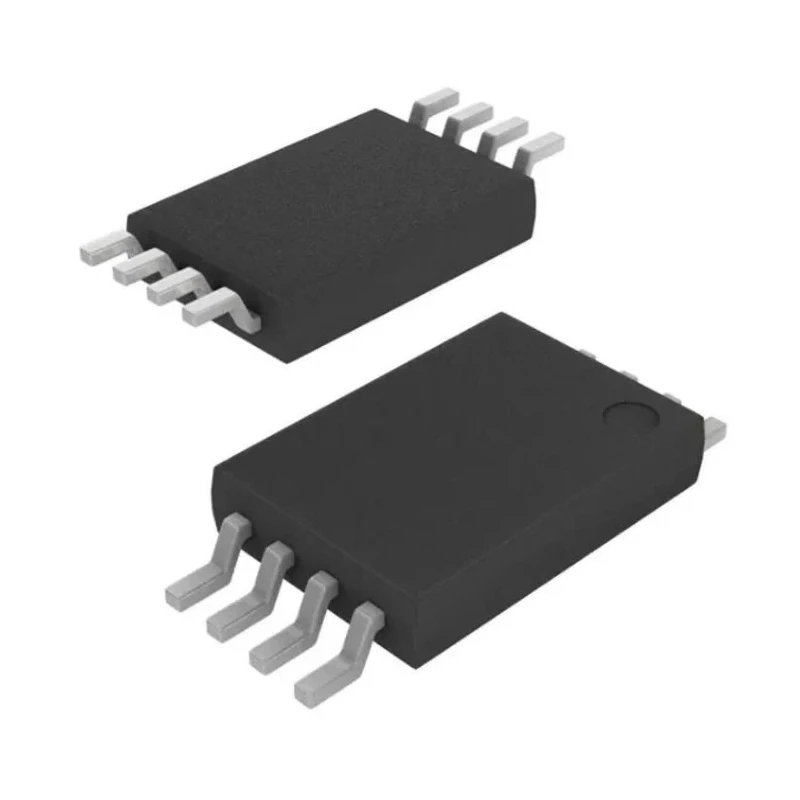

STMicroelectronics 4 kB Serial EEPROM 8-Pin TSSOP-8 Serial-I2C Memory M24C04-RDW6TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 550μm |
| Length | 3.1mm |
| Model | M24C04-RDW6TP |
| Width | 6.6mm |
| Mount Type | Surface |
| Series | M24C04-R |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP-8 |
| Minimum Operating Temperature | -40°C |
| Memory size | 4kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Page Size | 16 byte |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Maximum Clock Frequency | 400kHz |
| Organisation | 512 k x 8 Bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 512K |
| M24C04-W | 2.5 V to 5.5 V |
| M24C04-R | 1.8 V to 5.5 V |
Key Features
- 512 x 8-bit memory organized as 4 Kbit EEPROM.
- Supports I2C interface with up to 400 kHz clock frequency.
- Operates over a supply voltage range of 1.8 V to 5.5 V.
- Endurance exceeds 4 million write cycles with 40 years data retention.
- Wide operating temperature from -40°C to +85°C.
- Surface mount package suitable for automated PCB assembly.
- Automotive grade with AEC-Q100 standard qualification.
- Page write and byte write within 5 ms operation timing.
Product Description
STMicroelectronics M24C04-RDW6TP is a 4 kB (512 x 8-bit) Serial EEPROM memory chip designed for high reliability and efficient serial I2C communication. Its compact 8-Pin TSSOP-8 surface mount package integrates seamlessly into automotive, industrial, and consumer electronic applications requiring non-volatile memory with fast access and extended endurance.
This EEPROM operates over a broad voltage range from 1.8 V to 5.5 V and supports an I2C bus interface up to 400 kHz, enabling quick data transfers and compatibility with various embedded system architectures. The device guarantees data retention of up to 40 years and supports more than 4 million write cycles, ensuring long-term durability in critical applications.
The memory is organized as 512 words of 8 bits each with a 16-byte page size, allowing efficient memory management with both byte and page write operations completed within 5 ms. Enhanced ESD and latch-up protections safeguard the device from electrical disturbances. The device is qualified to meet the automotive AEC-Q100 industry standard, making it suitable for robust automotive electronic systems.
The M24C04-RDW6TP device features a wide operating temperature range from -40°C to +85°C, making it dependable in harsh environmental conditions. Its small dimensions (6.6 mm width, 3.1 mm length, 550 μm height) enable space-saving designs without compromising performance. This EEPROM is RoHS compliantly manufactured and halogen-free, promoting environmentally responsible usage.
512 x 8-bit (4Kbit) memory size organized as 512 words. Compatible with I2C bus modes including 100 kHz and 400 kHz. Wide supply voltage range: 1.8 V to 5.5 V. Extended endurance with over 4 million write cycles. Long data retention for up to 40 years.
Automotive qualified with AEC-Q100 certification. Compact 8-Pin TSSOP package suitable for surface mounting. Operating temperature range from -40°C to +85°C.
This EEPROM memory chip is ideal for industrial, automotive, consumer electronics, manufacturing equipment, and embedded control systems requiring non-volatile, reliable, and fast-access memory. Explore more STMicroelectronics memory products on EnvMart to find the best solution tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M24C04-RDW6TP has a memory size of 4 kB, organized as 512 words of 8 bits each.
It operates over a supply voltage range from 1.8 V to 5.5 V.
The maximum clock frequency supported by the I2C interface is 400 kHz.
The device supports more than 4 million write cycles, ensuring extended endurance.
It has a wide operating temperature range from -40°C to +85°C.
The M24C04-RDW6TP is packaged in a compact 8-Pin TSSOP-8 surface mount package.
Both byte and page write operations can be completed within 5 ms.
It is qualified to meet the AEC-Q100 automotive standard.
The maximum random access time is 900 ns.
The memory is organized as 512 words of 8 bits each, with a page size of 16 bytes.
The dimensions of this model are 6.6 mm in width, 3.1 mm in length, and 550 μm in height.
It is suitable for automotive, industrial, consumer electronics, and embedded control systems requiring non-volatile memory.
