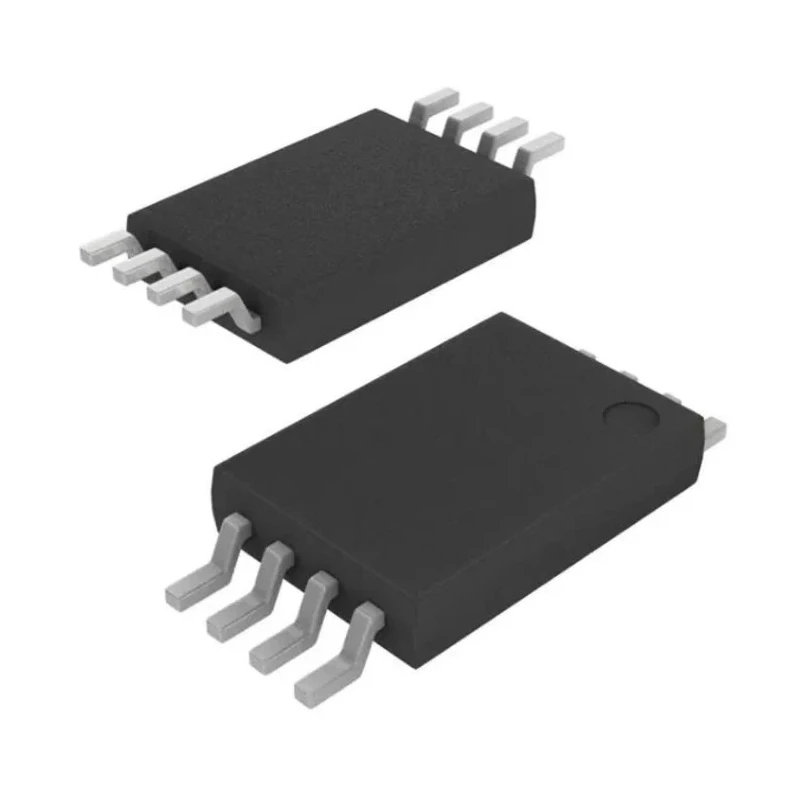

STMicroelectronics 4 kB Serial I2C EEPROM 900 ns 8-Pin TSSOP-8 M24C04-RDW6TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 550μm |
| Length | 3.1mm |
| Model | M24C04-RDW6TP |
| Width | 6.6mm |
| Mount Type | Surface |
| Series | M24C04-R |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP-8 |
| Minimum Operating Temperature | -40°C |
| Memory size | 4kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Page Size | 16 byte |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Maximum Clock Frequency | 400kHz |
| Organisation | 512 k x 8 Bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 512K |
| M24C04-W | 2.5 V to 5.5 V |
| M24C04-R | 1.8 V to 5.5 V |
Key Features
- Compatible with I2C bus modes up to 400 kHz for fast communication.
- Operates over a wide supply voltage range of 1.8 V to 5.5 V.
- Provides 4 Kbit memory organized as 512 x 8 bits with 16-byte page size.
- Supports data retention of 40 years and more than 4 million write cycles.
- Functions within ambient temperatures from -40 °C up to +85 °C for industrial applications.
- Includes enhanced ESD and latch-up protection for durability.
- Complies with automotive standard AEC-Q100 for stringent quality.
- Surface mountable device with a compact TSSOP-8 package measuring 6.6 mm by 3.1 mm, height 550 μm.
Product Description
STMicroelectronics M24C04-RDW6TP is a 4 kB Serial EEPROM designed for integrated circuit memory storage with I2C compatibility. It features an 8-pin TSSOP-8 surface mount package and provides a high maximum clock frequency of 400 kHz allowing rapid data transfer in embedded and industrial electronics.
This EEPROM is organized as 512 x 8 bits and supports byte and page write operations within 5 ms. The device operates effectively across a supply voltage range of 1.8 V to 5.5 V and withstands environmental conditions from -40 °C to 85 °C, making it ideal for automotive, industrial, and consumer electronics applications.
Designed for reliability, the M24C04-RDW6TP offers data retention of 40 years, more than 4 million write cycles, and includes enhanced electrostatic discharge (ESD) and latch-up protection. It meets the automotive industry standard AEC-Q100, assuring performance and quality under rigorous conditions.
The compact TSSOP-8 package with dimensions 6.6 mm width, 3.1 mm length, and 550 µm height supports high-density PCB layouts and surface mount technology for automated assembly lines, enhancing manufacturing efficiency.
Fast data access with 900 ns maximum random access time. Supports 16-byte page writes for efficient memory utilization. Robust ESD and latch-up protections improve device longevity. Wide operating temperature and voltage ranges ensure versatile application usage.
Automotive grade component suitable for harsh environments. Compact size facilitates space-saving PCB design. Ideal for power management, embedded systems, and data logging devices. This memory chip is widely used in Industrial, Laboratory, Automotive, and Consumer Electronics fields where reliable and durable non-volatile memory is required.
Explore more semiconductor components and memory solutions available at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a memory size of 4 kB, organized as 512 x 8 bits.
The maximum clock frequency is 400 kHz, allowing for fast communication.
It operates over a supply voltage range of 1.8 V to 5.5 V.
The maximum random access time is 900 ns.
The package measures 6.6 mm in width, 3.1 mm in length, and has a height of 550 μm.
It functions within an ambient temperature range from -40 °C to +85 °C.
It supports more than 4 million write cycles, ensuring longevity in applications.
It complies with the automotive standard AEC-Q100, ensuring stringent quality.
It uses a Serial I2C interface for communication.
The EEPROM supports a page size of 16 bytes for efficient memory utilization.
It is designed for surface mounting, suitable for high-density PCB layouts.
The country of origin for this EEPROM is India.
