STMicroelectronics 128 kB Serial EEPROM 450 ns 1MHz 5-Pin UFDFPN Surface Mount M24128-BFMH6TG

STMicroelectronics M24128-BFMH6TG is a high-performance 128-Kbit serial EEPROM designed for reliable and fast data storage with an I2C bus interface. Featuring a 5-pin UFDFPN surface mount package, this device operates at a clock frequency of up to 1 MHz and supports a supply voltage range from 1.7 V to 5.5 V, making it suitable for a variety of power-sensitive applications. It delivers a maximum random access time of 450 ns and provides robust performance over a temperature range from -40 °C to +85 °C.

The memory is organized as 16 K x 8 bits with a page size of 64 bytes supporting both random and sequential read modes. It includes advanced features such as write protection capabilities, enhanced ESD and latch-up protection, and an extended data retention time of 200 years, ensuring data integrity over long periods. The device also meets the stringent automotive standard AEC-Q100, qualifying it for automotive-grade system requirements.

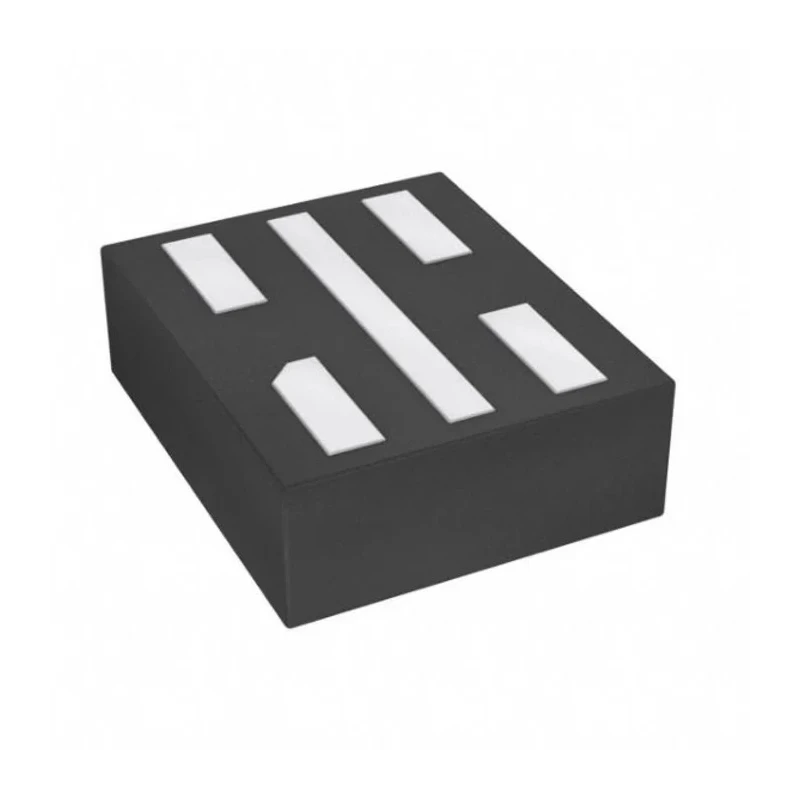

The compact and low-profile UFDFPN 5-pin package measures 1.7 mm in length, 1.4 mm in width, and 550 microns in height, enabling integration into space-constrained designs. This EEPROM is ideal for embedded systems in industrial, automotive, consumer electronics, and other applications requiring non-volatile memory storage with high reliability and endurance.

128 Kbit I2C-compatible serial EEPROM memory. Clock frequency up to 1 MHz for high-speed operation. Wide supply voltage range from 1.7 V to 5.5 V supporting versatile power environments. Robust operating temperature range between -40 °C and +85 °C suitable for harsh environments.

Compact 5-pin UFDFPN surface-mount package. 16k x 8 bits memory organization with 64-byte page write capability. Data retention for over 200 years and more than 4 million write cycles ensure long-term reliability. Compliance with automotive standard AEC-Q100 for automotive applications.

Enhanced write protection, ESD, and latch-up protections safeguard memory integrity. Applications include industrial systems, automotive electronics, consumer devices, and embedded memory solutions. Explore more electronic components, semiconductors, and memory chips with EnvMart's comprehensive industrial catalog for your design and manufacturing needs.
