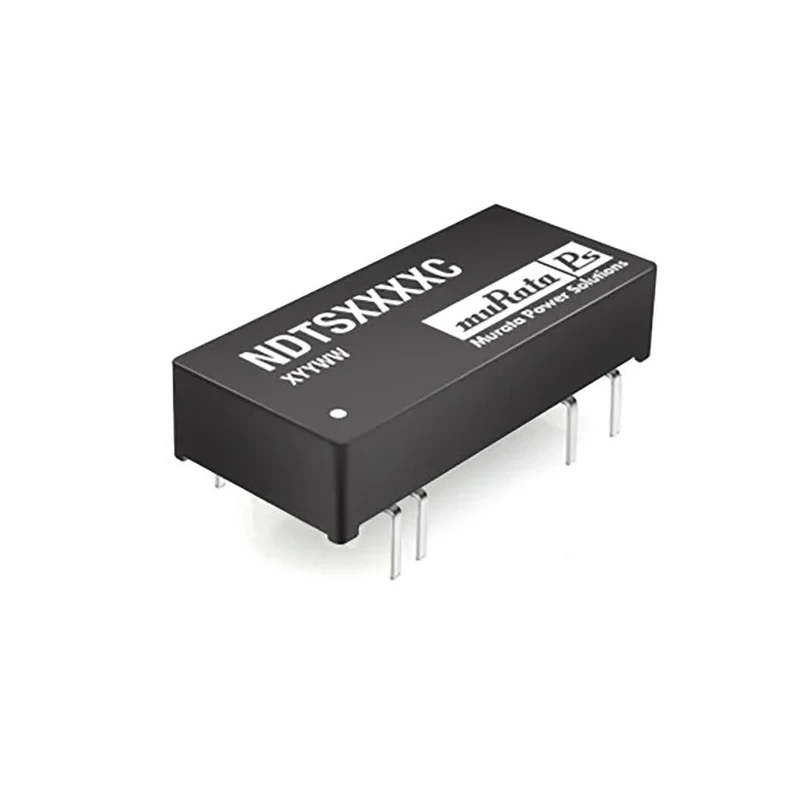

Murata Power Solutions DC/DC Converter 5V dc Output 600 mA 9V dc Input 4.5V Input 3W Through Hole NDTS0505C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDTS DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 71% |
| Length | 32.26mm |
| Model | NDTS0505C |
| Depth | 7mm |
| Gross Weight | 6.2g |
| Width | 32.26mm |
| Mount Type | Through Hole |
| Series | NDTS |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 9V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Supports wide input voltage range from 4.5V to 9V DC for flexible operation.
- Provides 1kV DC isolation between input and output for safety.
- Compact DIP package with dimensions 32.26mm x 32.26mm x 7mm.
- High efficiency of 71% ensures low power loss and thermal stability.
- Robust design includes continuous short circuit protection and no heatsink requirement.
- Operates reliably between -40°C to 85°C maximum ambient temperature.
- Ideal for industrial and electronic equipment power supply applications.
- RoHS compliant ensuring environmental sustainability.
Product Description
Murata Power Solutions NDTS0505C is a high-performance DC/DC Converter designed for regulated isolated power conversion. It offers a 5V DC output at 600 mA from an input voltage range of 4.5V to 9V DC with a maximum output power of 3W. The device features a 1kV DC isolation voltage between input and output, ensuring safety and noise isolation in sensitive electronic circuits.

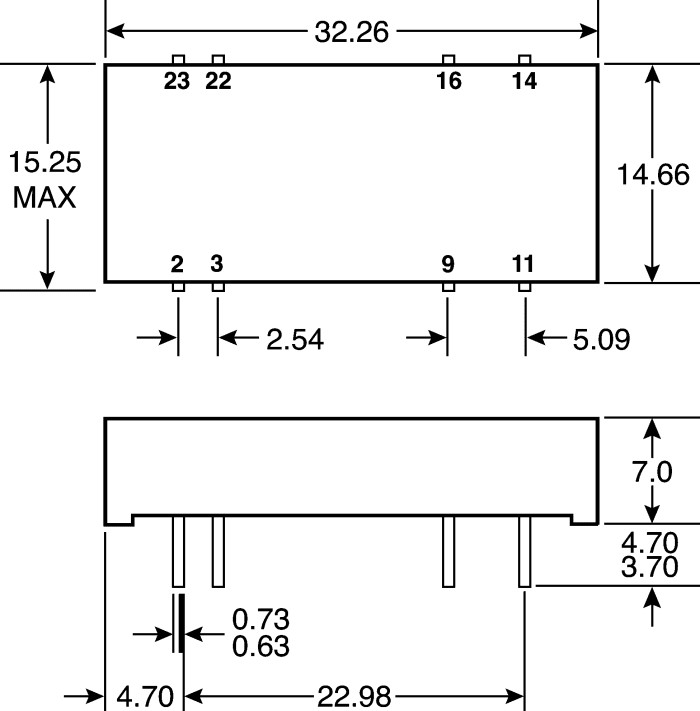

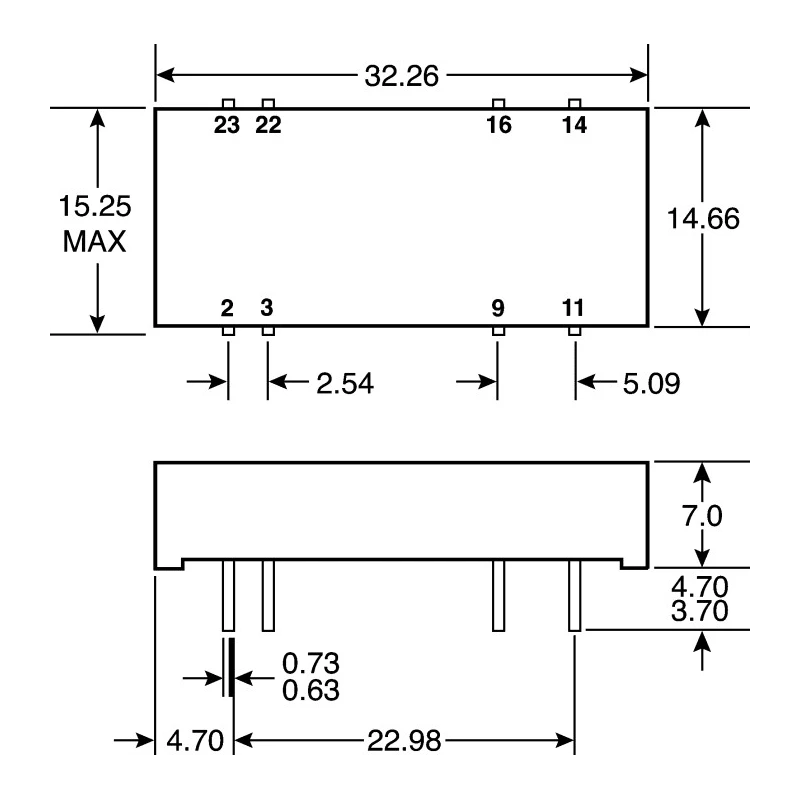

This converter is housed in a compact DIP24 plastic package measuring 32.26mm in length and width, with a depth of just 7mm. The design employs internal surface-mounted device construction and requires no additional heatsink due to efficient internal thermal management.
Its robust continuous short circuit protection enhances reliability, making it suitable for demanding industrial, laboratory, manufacturing, and power supply applications that require stable isolated power sources.
With an efficiency of 71%, the NDTS0505C minimizes energy loss and heat generation. It operates over a wide temperature range from -40°C to a maximum of 85°C, allowing usage in harsh environmental conditions.
The unit complies with RoHS standards, making it an environmentally conscious choice for modern electronic equipment. Wide 2:1 input voltage range supporting 4.5V to 9V DC input operation. Regulated 5V DC output voltage at 600 mA current.
1kV DC isolation voltage for safety and noise suppression. Compact DIP24 package measuring 32.26mm x 32.26mm x 7mm. Continuous short circuit protection for enhanced reliability. No heatsink necessary due to efficient thermal design.
Operating temperature range from -40°C to 85°C. RoHS compliant for environmental safety. This DC/DC converter is ideal for various industrial electronics, power supplies, instrumentation, and control systems requiring isolated and stable low power DC sources.
Explore the full Murata Power Solutions range of DC/DC Converters and power management components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a maximum output current of 600 mA.
It supports a wide input voltage range from 4.5V to 9V DC, allowing for flexible operation.
This unit features a 1kV DC isolation voltage between input and output, ensuring safety and noise isolation.
The converter is housed in a compact DIP24 package measuring 32.26mm in length and width, and 7mm in depth.
It has an efficiency of 71%, which minimizes energy loss and heat generation during operation.
This converter operates reliably in ambient temperatures ranging from -40°C to 85°C.
This model utilizes a through hole mounting type for installation.
No, it does not require an additional heatsink due to its efficient internal thermal management design.
It includes continuous short circuit protection to enhance reliability during operation.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The ripple and noise for this converter is specified at 150mV peak-to-peak.
It is ideal for various industrial electronics, power supplies, instrumentation, and control systems requiring stable isolated power sources.
