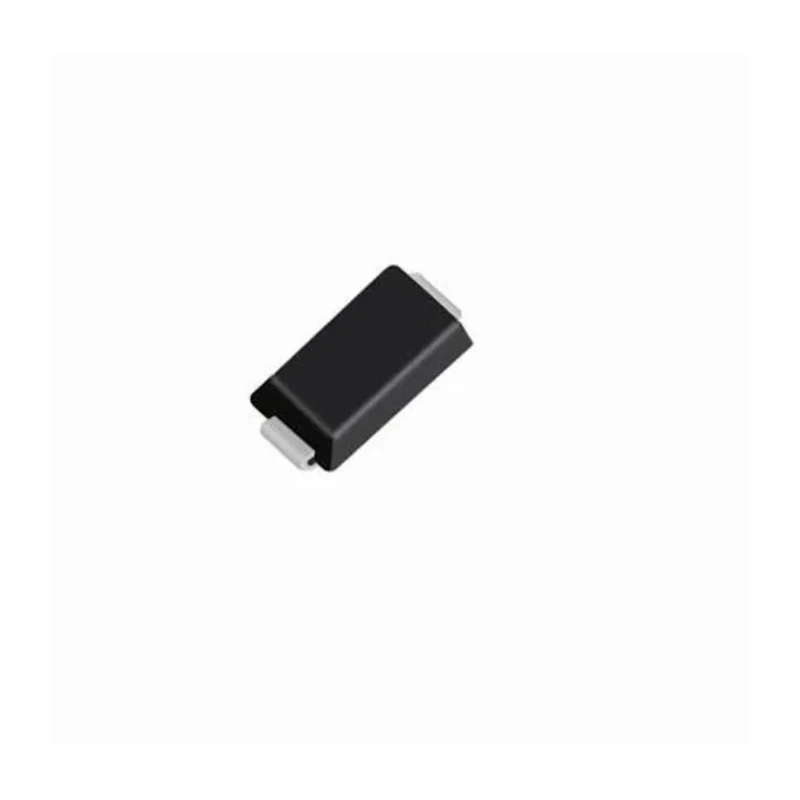

DiodesZetex 200 V 2 A Fast Recovery Surface Mount Diode DO-219AA FES2DE-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 200 V 2 A Fast Recovery Surface Mount Diode DO-219AA FES2DE-7

Name: DiodesZetex 200 V 2 A Fast Recovery Surface Mount Diode DO-219AA FES2DE-7
Brand: DiodesZetex
SKU: 291629
Price: 0.1 USD
Availability: InStock



Category Semiconductor Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.2mm
Length	3.9mm
Model	FES2DE-7
Width	2mm
Mount Type	Surface
Series	FES2DE
Maximum Operating Temperature	105°C
Package Type	DO-219AA
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q200, AEC-Q100, AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Single
Rectifier Type	Fast Recovery
Peak Reverse Current Ir	350μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	0.92V
Peak Reverse Recovery Time trr	25ns

Key Features

Supports maximum continuous forward current of 2 A.
Features fast recovery time of 25 ns for efficient switching.
Compact DO-219AA surface mount package measuring 3.9 mm by 2 mm by 1.2 mm.
Capable of withstanding peak reverse repetitive voltage up to 200 V.
Operates in temperature range from -55°C to 105°C.
Low peak reverse current of 350 μA enhances performance.
Constructed with glass passivated die for durability.
Ideal for use in AC-AC and DC-DC converters requiring ultrafast switching.

Product Description

DiodesZetex FES2DE-7 is a high-performance fast recovery diode rated for 200 volts and 2 amps in a surface mount DO-219AA package. Designed for use in power factor correction and secondary rectification, it excels in ultrafast switching speed environments typical of AC-AC and DC-DC converters.

This single 2-pin Semiconductor Diode features a compact low profile with dimensions of 3.9 mm length, 2 mm width, and 1.2 mm height, allowing integration into compact PCB designs. It exhibits a low leakage current due to its glass passivated die construction and supports a peak reverse repetitive voltage up to 200 V along with a maximum continuous forward current of 2 A.

The diode’s fast recovery time of 25 nanoseconds minimizes power losses in switching applications, improving overall circuit efficiency. It operates reliably over a wide temperature range from -55°C to 105°C, meeting automotive quality and reliability standards including AEC-Q200, AEC-Q100, and AEC-Q101.

Typical use cases include secondary rectification and freewheeling functions in high temperature consumer electronics and automotive power modules that demand quick switching and durability. Its peak non-repetitive forward surge current rating of 50 A and low peak reverse current of 350 μA further enhance its applicability in demanding environments.

Supports maximum continuous forward current of 2 A. Features fast recovery time of 25 ns for efficient switching. Compact DO-219AA surface mount package measuring 3.9 mm by 2 mm by 1.2 mm. Capable of withstanding peak reverse repetitive voltage up to 200 V.

Operates in temperature range from -55°C to 105°C. Low peak reverse current of 350 μA enhances performance. Constructed with glass passivated die for durability. Ideal for use in AC-AC and DC-DC converters requiring ultrafast switching.

Meets automotive standards including AEC-Q200, AEC-Q100, and AEC-Q101. Single diode configuration with 2 pins enables easy PCB mounting.

This product is ideal for industrial, automotive, and consumer electronics applications requiring reliable fast recovery diodes with surface mount packaging. For related power electronics components and advanced semiconductor devices, explore the Electronics & Electricals category at EnvMart.
