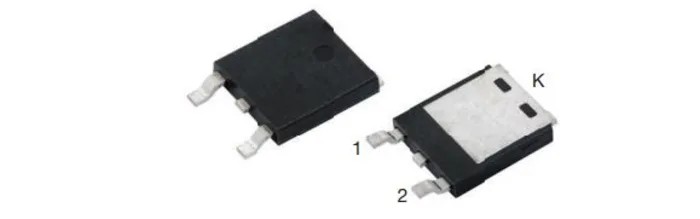

Vishay 100 V 35 A Surface Mount Rectifier and Schottky Diode TO-252 Package V35PWM10HM3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay 100 V 35 A Surface Mount Rectifier and Schottky Diode TO-252 Package V35PWM10HM3/I

Name: Vishay 100 V 35 A Surface Mount Rectifier and Schottky Diode TO-252 Package V35PWM10HM3/I
Brand: Vishay
SKU: 290784
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.4mm
Length	9.4mm
Model	V35PWM10HM3/I
Width	6.32mm
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	175°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, UL 94 V-0, AEC-Q101, JESD 201 Class 2 whisker test
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	35A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	800μA
Peak Non-Repetitive Forward Surge Current Ifsm	260A
Maximum Forward Voltage Vf	0.9V

Key Features

Features trench MOS Schottky technology ensuring low forward voltage drop for high efficiency operation.
Designed with a TO-252 DPAK surface mount package offering a compact form factor of 9.4 mm length, 6.32 mm width, and 1.4 mm height.
Supports high peak non-repetitive forward surge current of 260 A for robust transient conditions.
Operates reliably from -40°C up to 175°C maximum operating temperature suitable for automotive and industrial applications.
Complies with RoHS, UL 94 V-0, AEC-Q101, and JESD 201 Class 2 whisker test standards, ensuring quality and automotive-grade reliability.
Ideal for low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection applications.

Product Description

Vishay V35PWM10HM3/I is a high current density surface-mount rectifier and Schottky diode in a low-profile TO-252 DPAK package measuring 9.4 mm by 6.32 mm with a 1.4 mm height. It is designed for applications requiring a peak repetitive reverse voltage of 100 V and a maximum continuous forward current of 35 A.

This diode features advanced trench MOS Schottky technology that delivers a low forward voltage drop of 0.9 V, which translates to high efficiency and minimized power losses during operation. Its peak non-repetitive forward surge current rating of 260 A enables it to withstand transient surge events common in industrial and automotive environments.

With a robust operating temperature range from -40°C to 175°C and automotive AEC-Q101 qualification, this component is suitable for demanding environments including automotive, power supply, and industrial electronics. It meets multiple standards such as RoHS, UL 94 V-0 for flammability, and JESD 201 Class 2 whisker test to ensure long-term reliability.

Common use cases include use as freewheeling diodes in DC/DC converters, polarity protection devices in powering circuits, and other power management applications requiring rapid switching and high current capacity. The surface mount TO-252 package facilitates automated assembly and efficient heat dissipation.

The product offers a combination of high performance, durability, and compatibility with automotive and industrial standards, making it an ideal choice for engineers designing efficient power electronic systems.

Trench MOS Schottky technology for low voltage drop and efficient operation. TO-252 (DPAK) surface mount package with compact dimensions. High current rating with 35 A continuous forward current and 260 A surge current. Wide operating temperature range from -40°C to 175°C.

Automotive qualified with AEC-Q101 compliance. Meets RoHS and UL 94 V-0 flammability standards. Explore a comprehensive range of Vishay semiconductor components on EnvMart for your industrial, electronic, automotive, and manufacturing needs.
