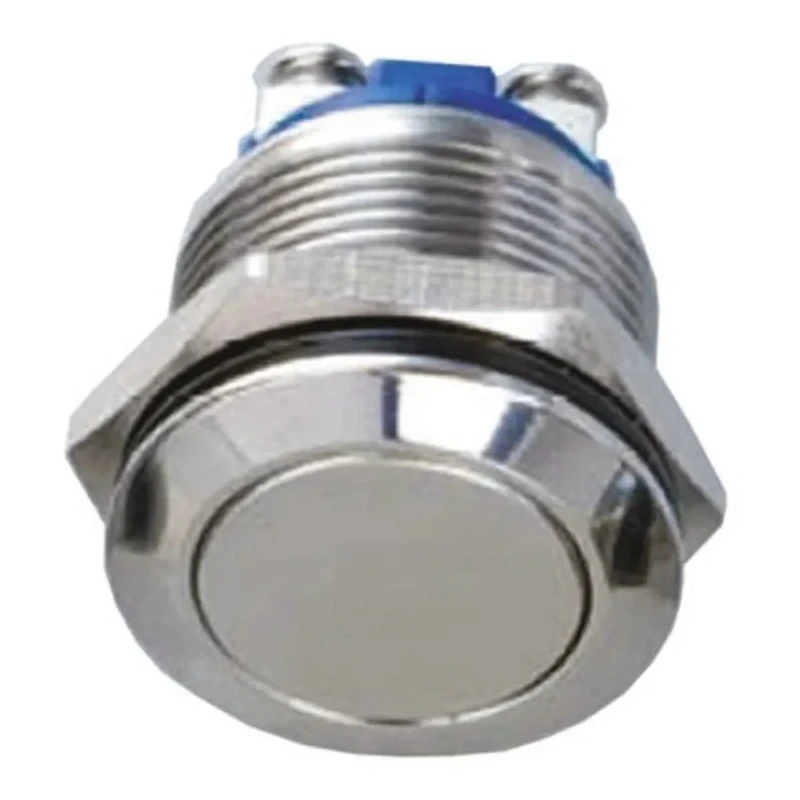

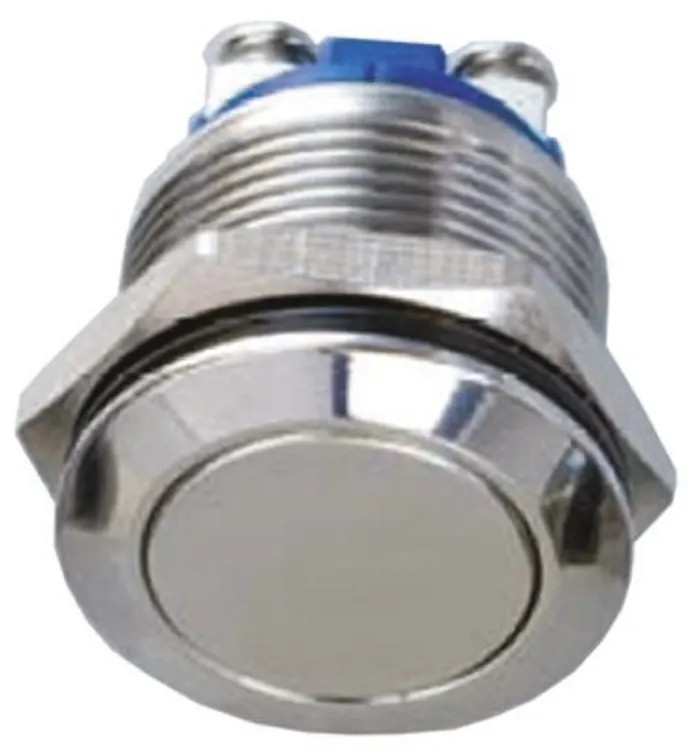

EOZ R Series Momentary Panel Mount Push Button Switch SPST 19.2 mm Cutout IP65 36 V dc R19DFGSTAG
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19DFGSTAG |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Button |
| Switch Contact Current | 2A |
Key Features
- Designed for momentary push button switch operation.
- Panel mounting with a 19.2 mm cutout size.
- Single Pole Single Throw (SPST) contact configuration.
- Screw terminal type ensures secure electrical connections.
- Rated for 36 V dc contact voltage.
- Ingress protection rating of IP65 protects against dust and water jets.
- Shock resistant IK09 rated for industrial environments.
- Operating temperature range from -20°C to 55°C.
Product Description
The EOZ R19DFGSTAG is a high-quality momentary push button switch designed for panel mounting with a standard 19.2 mm cutout. Featuring a Single Pole Single Throw (SPST) contact configuration and screw terminals, this switch is ideal for industrial and commercial applications requiring reliable momentary operation.
This product provides robust ingress protection with an IP65 rating, making it dust-tight and protected against low-pressure water jets from any direction. The actuator style is a durable button designed for frequent use.
Designed to operate at a contact voltage of 36 V dc and rated at 2 Amperes switching current, it supports a broad range of electrical control requirements. Its shock resistance is certified at IK09, capable of withstanding impacts equivalent to a 5 kg mass dropped from 200 mm height, making it suitable for exposed and demanding environments.
The operational temperature range from -20°C to +55°C ensures dependable performance across diverse climate conditions. This EOZ R series switch is compliant with RoHS directives emphasizing environmental safety by restricting hazardous substances.
Designed for momentary push button switch operation. Panel mounting with a 19.2 mm cutout size. Single Pole Single Throw (SPST) contact configuration. Screw terminal type ensures secure electrical connections. Rated for 36 V dc contact voltage.
Ingress protection rating of IP65 protects against dust and water jets. Shock resistant IK09 rated for industrial environments. Operating temperature range from -20°C to 55°C. Switch contact current rated at 2 Amperes. Complies with RoHS standards.
This push button switch finds applications in access control systems, machinery and factory equipment, exposed public areas such as ticket machines, kiosks, vending machines, and other industrial automation settings.
Explore further products in the EOZ Push Button Switch range or browse the Electronics & Electricals category at EnvMart for more quality industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, allowing for momentary operation.
It has an ingress protection rating of IP65, making it dust-tight and protected against low-pressure water jets from any direction.
The operational temperature range is from -20°C to +55°C, ensuring reliable performance in various climate conditions.
This push button switch is rated for a contact voltage of 36 V dc.
It utilizes screw terminals, which ensure secure electrical connections during installation.
The switch has a rated switching current of 2 Amperes, suitable for various electrical control applications.
The required panel cutout size for this switch is 19.2 mm.
Yes, it complies with RoHS standards, emphasizing environmental safety by restricting hazardous substances.
The actuator style is a button designed for frequent use in momentary applications.
It is shock resistant with an IK09 rating, making it suitable for industrial environments and exposed public areas.
This model is suitable for applications such as access control systems, machinery, ticket machines, kiosks, and industrial automation settings.
The country of origin for this push button switch is France.
