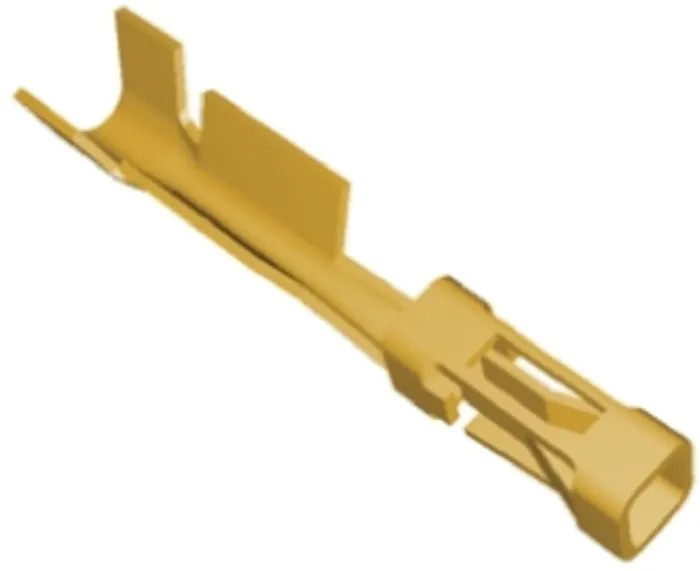

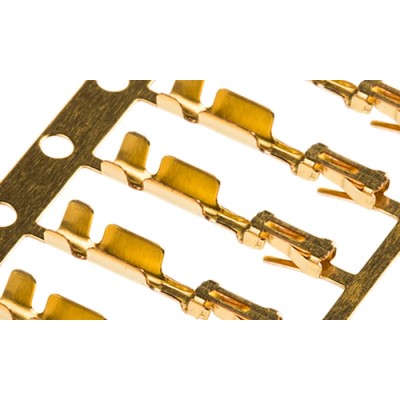

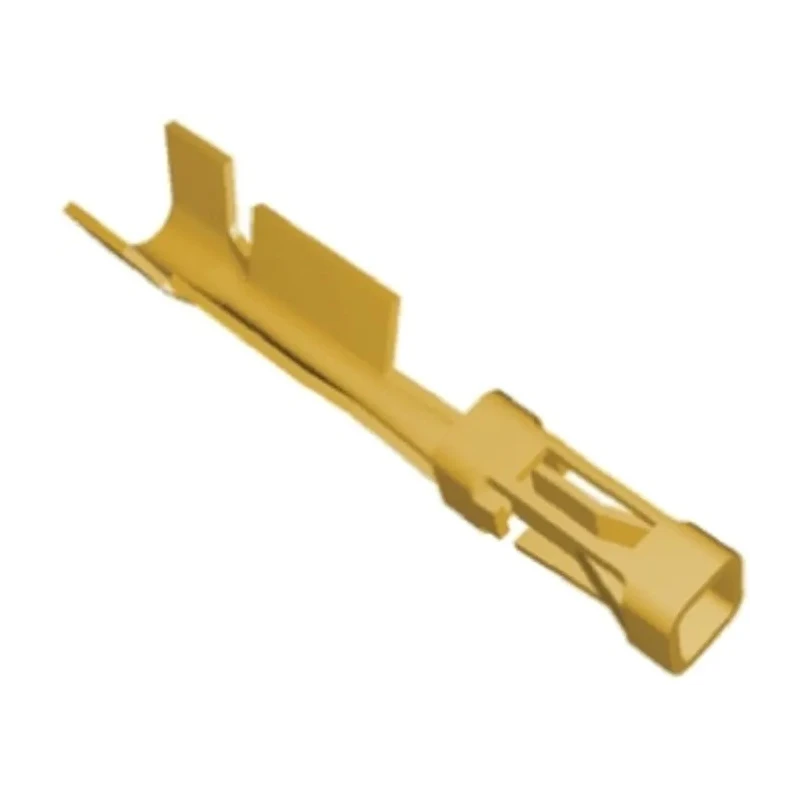

TE Connectivity AMPMODU Mod IV Series Female Crimp Terminal 3A 24-20 AWG Gold Plated Phosphor Bronze Contacts 2-167301-4

TE Connectivity 2-167301-4 AMPMODU Mod IV series female crimp terminal is engineered to provide durable and reliable electrical connections for wires ranging from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²). This crimp contact supports a maximum current of 3A, optimized for low voltage applications in electronics and electrical systems.

Made from high-quality phosphor bronze material, the contact features a gold-plated surface to ensure excellent conductivity and corrosion resistance over the product's operational life. The terminal length is 11.9 mm, aligning with the AMPMODU MOD IV standard for consistent mechanical fit and reliable mating with compatible connector housings.

Suitable for harsh operating environments, the component endures temperatures from -65°C to 105°C, making it applicable for diverse industrial, manufacturing, and electronics assembly tasks. The crimp termination method facilitates straightforward and secure attachment of conductor wires, enhancing manufacturing efficiency.

Compliance with EU ELV 2000/53/EC and EU RoHS 2011/65/EU ensures the product meets stringent environmental and safety regulations. The contacts are packaged on reels, designed to streamline integration into automated insertion machinery for mass production environments.

This terminal is ideal for use in electrical connectors for industrial automation systems, electronic devices, and other applications requiring compact, reliable wire terminations. Integration with TE Connectivity's AMPMODU MOD IV connector system guarantees compatibility and standardized connectivity.

Constructed from phosphor bronze with gold plated contact surfaces for durability and low resistance. Supports wire sizes 24 AWG (0.2 mm²) minimum to 20 AWG (0.6 mm²) maximum. Designed for a current rating of 3A and operating temperature range from -65°C to 105°C.

Crimp type termination facilitates secure and repeatable wire connections. Meets EU ELV and RoHS compliance standards for environmental safety. 11.9 mm contact length for precise fitting in AMPMODU MOD IV connectors. Packaged on reels for automated insertion processes to boost manufacturing throughput.

Application suitable across electronics, industrial, manufacturing, and electrical sectors. Standardized design compatible with AMPMODU MOD IV connector housings. Browse EnvMart Electronics & Electricals categories for similar Crimp Terminals and connectors to complement assembly requirements.
