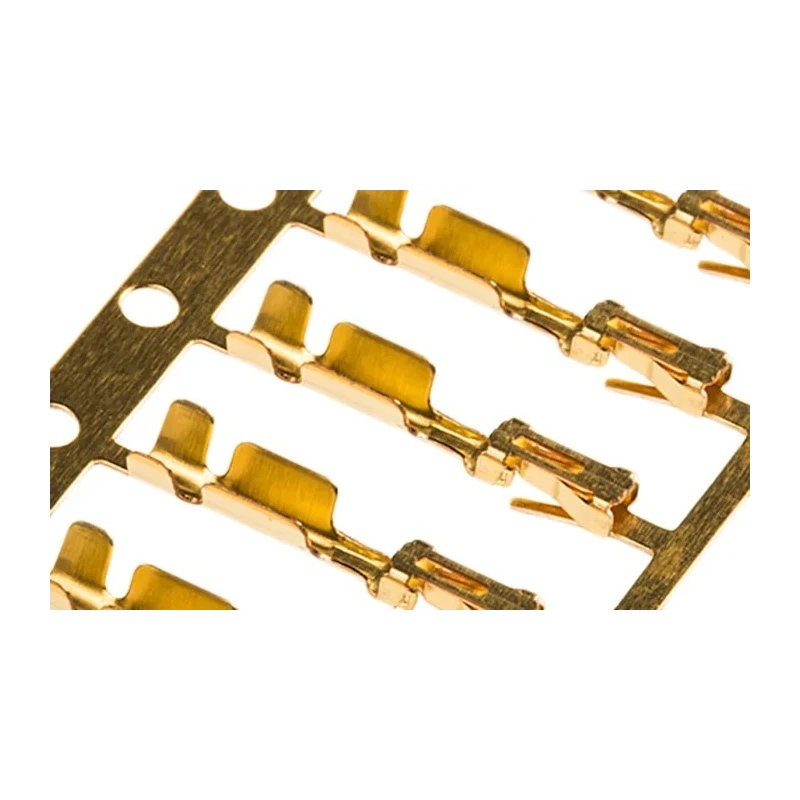

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal 24 AWG Min, 20 AWG Max, 5A Current, Gold Plated 167301-4

TE Connectivity 167301-4 AMPMODU MOD IV Series Female Crimp Terminal is engineered for reliable and efficient wire-to-board connections using 24 to 20 AWG wires. With a current rating of 5A and gold-plated phosphor bronze contacts, this crimp terminal ensures excellent electrical conductivity, corrosion resistance, and mechanical strength.

Designed as a receptacle crimp contact for AMPMODU MOD IV connector housings, it supports a wire cross-section from 0.2 mm² to 0.6 mm² (24 to 20 AWG). The terminal length of 11.9 mm allows for compact assembly in high-density electronic applications.

The crimp termination type provides a secure and robust connection of wires, improving production efficiency by being supplied on a reel ready for insertion into machinery.

Suitable for use in industrial, electronic, power connectors, and automation sectors, this terminal operates reliably in a temperature range between -65°C and 105°C, meeting demanding environmental conditions.

This product complies with UL 94V-0, UL94-HB, and UL 94V-1 fire safety standards ensuring user safety and product reliability. Compatible with AMPMODU MOD IV Connector Housing. Wire size range: 24 AWG minimum, 20 AWG maximum.

Gold plating enhances corrosion resistance and conductivity. Phosphor Bronze contact material for durability. Maximum contact resistance of 15 mΩ ensures signal integrity. Temperature rating from -65°C up to 105°C for diverse environments.

Crimp termination for secure wire attachment. Compact length of 11.9 mm suitable for high-density connectors. Meets UL 94V-0, UL94-HB, and UL 94V-1 standards.

This AMPMODU MOD IV female Crimp Terminal from TE Connectivity is ideal for applications in electronics manufacturing, industrial automation, and power connector assemblies. Browse EnvMart for more high-quality connector solutions and technical components to suit your project needs.
