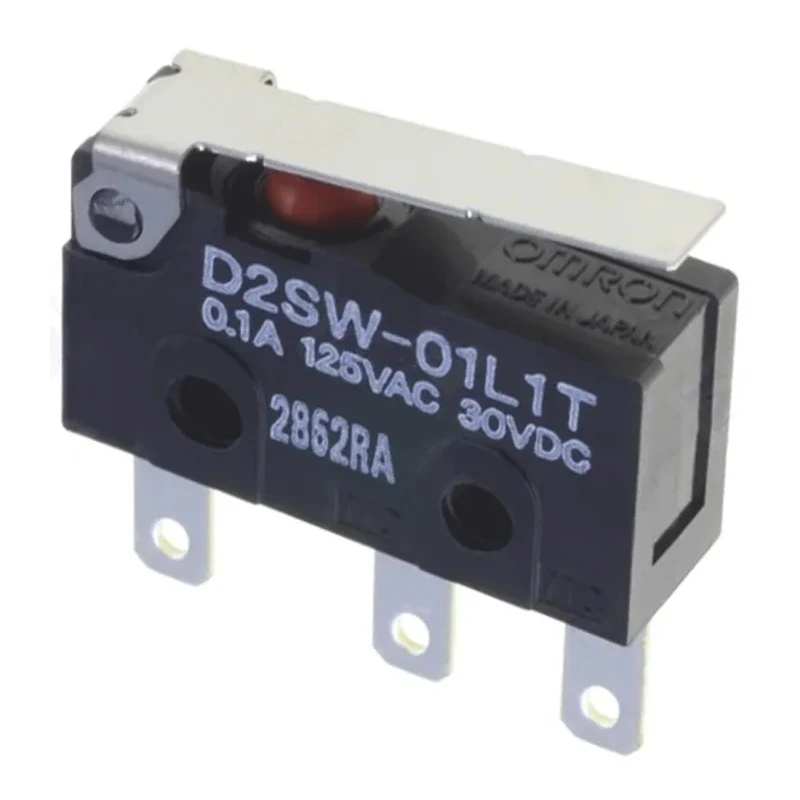

Omron Sealed Subminiature Hinge Lever Micro Switch, Tab Terminal, 100mA, 30 V dc, SPDT, IP67 D2SW-01L1T
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Operating Temperature Range | -40 to +80°C |
| Length | 19.8mm |
| Model | D2SW-01L1T |
| Depth | 6.4mm |
| IP Rating | IP67 |
| Series | D2SW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Contact Rating | 3A@30Vdc/125Vac, 2A@250Vac |
| Minimum Operating Temperature | -40°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.59N |
| Mechanical Life | 5000000Operations |
| Microswitch Type | Sealed Subminiature |
| Omron Hinge Lever Microswitch, Tab Terminal, 100 mA @ 30 V dc, SPDT, IP67Brand | Omron |
Key Features
- Sealed construction provides reliable operation in dusty and wet environments.
- Hinge lever actuator offers precise switching action with 0.59N operating force.
- Rated for mechanical life of 5,000,000 operations ensuring durability.
- Wide operating temperature range from -40 to 85°C suitable for harsh conditions.
- Compact dimensions with length 19.8mm and depth 6.4mm for space-saving installations.
- Compliant with RoHS standards for environmental safety.
- Contact rating supports 3A at 30V DC and 125V AC, 2A at 250V AC.
- Ideal for industrial automation, electrical control panels, and instrumentation applications.
Product Description
Omron D2SW-01L1T is a high-quality sealed subminiature micro switch featuring a hinge lever actuator and tab terminal connections. Designed for reliable performance, it supports an electrical contact current of 100mA at 30V DC with a single-pole double-throw (SPDT) configuration.
The micro switch's sealed construction offers exceptional protection against dust and water, rated at IP67 when used with wire leads, making it suitable for demanding industrial and automation environments.
The actuator requires a low operating force of 0.59N, enabling precise actuation. It is engineered to withstand a mechanical life of up to 5,000,000 operations, ensuring long-term durability.
Operating across a broad temperature range (-40 to 85°C), this micro switch is well-suited for applications in electrical controls, instrumentation, HVAC systems, and industrial machinery. Its compact size (19.8mm length, 6.4mm depth) facilitates easy integration in tight spaces.
Sealed construction provides high environmental protection for reliable switching. Hinge lever actuator enables consistent performance with low actuation force. Long mechanical lifespan of 5 million cycles ensures durability in continuous use.
Wide temperature tolerance supports operation in harsh environments. Complies with RoHS directives, supporting green manufacturing standards. Contact rating allows operation with moderate voltage and current loads. Compact size and tab terminal ease installation in electrical assemblies.
It is ideal for use in industrial automation, electrical equipment control, and safety devices requiring reliable, compact, and durable switching components. Explore more advanced Micro Switch solutions and related industrial electrical components to optimize your automation and control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating supports 3A at 30V DC and 125V AC, and 2A at 250V AC.
It operates within a temperature range of -40 to 85°C, making it suitable for harsh conditions.
This model features a hinge lever actuator, which allows for precise switching action with a low operating force of 0.59N.
It has an IP67 rating, providing excellent protection against dust and water when used with wire leads.
The dimensions are 19.8mm in length and 6.4mm in depth, allowing for compact installations.
It is rated for a mechanical life of up to 5,000,000 operations, ensuring long-term durability.
It features tab terminal connections, facilitating easy installation in electrical assemblies.
Yes, it complies with RoHS standards, supporting environmental safety in manufacturing.
It is ideal for use in industrial automation, electrical control panels, and instrumentation applications.
The switch contact current is rated at 100mA at 30V DC.
This micro switch belongs to the D2SW series.
The sealed construction provides reliable operation in dusty and wet environments, enhancing its suitability for demanding applications.
