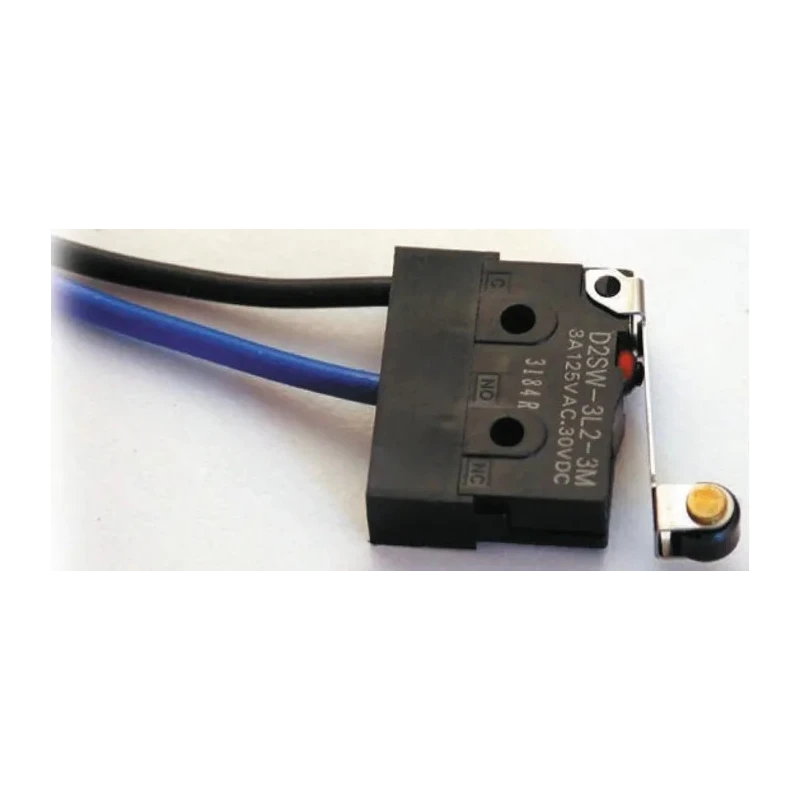

Omron Sealed Subminiature Roller Lever Micro Switch, Pre-Wired Terminal, 100mA, 30 V dc, SPDT, IP67 D2SW-01L2M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Operating Temperature Range | -40 to +80°C |
| Length | 19.8mm |
| Model | D2SW-01L2M |
| Depth | 6.4mm |
| IP Rating | IP67 |
| Series | D2SW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Contact Rating | 3A@30Vdc/125Vac, 2A@250Vac |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.59N |
| Mechanical Life | 5000000Operations |
| Microswitch Type | Sealed Subminiature |
Key Features
- The actuator type is a roller lever for precise switching action.
- Pre-wired terminals allow easy connection without soldering.
- Rated for 100mA contact current with SPDT contact configuration.
- Durable sealed subminiature design ensures protection against dust and water.
- IP67 rating guarantees robustness in harsh environments.
- Operating force is low at 0.59N for sensitive actuation.
- Suitable for operating temperature range from -40°C to 85°C.
- Mechanical life rated for 5,000,000 operations providing long-term reliability.
Product Description
Omron D2SW-01L2M is a sealed subminiature roller lever micro switch featuring a pre-wired terminal suitable for industrial, automation, and electrical applications requiring precise, reliable switching. This micro switch supports a contact current of 100mA with a contact configuration of SPDT, and is designed to withstand harsh environments with an IP67 ingress protection rating. Its durable sealed construction ensures resistance against dust and water, making it ideal for demanding settings in manufacturing, HVAC controls, and instrumentation.
The roller lever actuator provides sensitive and precise actuation, operating at a low force of 0.59N, accommodating various control and detection applications. With a compact size of 19.8mm in length and 6.4mm depth, it offers easy integration in tight spaces. Its robust mechanical life expectancy of up to 5 million operations guarantees long-term performance, reducing maintenance needs.
Operating temperature margins from -40°C to 85°C allow it to function reliably under diverse environmental conditions. The contact rating of 3A at 30V dc and 125V ac extends its utility across a broad range of control scenarios. The pre-wired terminal simplifies installation, saving time in assembly processes.
The actuator is a roller lever type designed for efficient mechanical switching. Pre-wired terminals eliminate the need for soldering, reducing installation complexity. Low operating force enhances sensitivity for quick response.
The sealed subminiature construction protects against environmental contaminants. IP67 protection rating ensures dust-tight and water immersion resistance. Mechanical life rated at five million operations increases reliability and durability.
Compact dimensions aid installation in space-constrained applications. Suitable for temperatures ranging from -40°C to 85°C for wide industrial applicability. Contact configuration is Single Pole Double Throw (SPDT) for versatile switching.
Contact rating supports loads up to 3A at 30V dc or 125V ac.
This micro switch is manufactured in Japan, adhering to RoHS standards for environmental compliance. It is widely used in industrial controls, HVAC systems, automation equipment, and electrical devices requiring precise Micro Switch functionality. Omron's D2SW series switches are recognized for quality and reliable performance.
Explore the Electronics & Electricals category at EnvMart for more advanced switches and electrical components to support your projects and operations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 3A at 30V dc or 125V ac, and it also supports 2A at 250V ac.
It operates within a temperature range of -40°C to 85°C.
This model features a roller lever actuator type for precise switching action.
The switch has an IP67 rating, ensuring protection against dust and water immersion.
It has a mechanical life rated for up to 5,000,000 operations.
The operating force is low at 0.59N, allowing for sensitive actuation.
The dimensions are 19.8mm in length and 6.4mm in depth, making it compact for installation.
It features pre-wired terminals for easy connection without soldering.
The contact configuration is Single Pole Double Throw (SPDT).
It adheres to RoHS standards for environmental compliance.
This micro switch is manufactured in Japan.
It is suitable for industrial controls, HVAC systems, automation equipment, and electrical devices requiring precise switching functionality.
