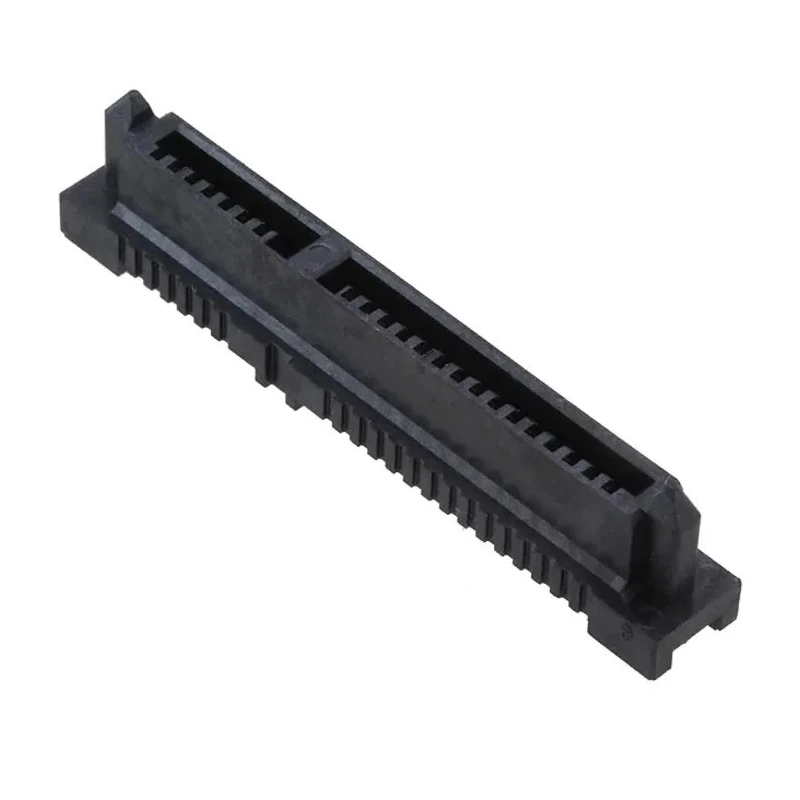

Molex Vertical Surface Mount PCB Connector, 22-Contact, 1 Row, 1.27 mm Pitch, 30V, 1.5A, High Temperature 877131006

Molex 877131006 is a high quality vertical surface mount PCB connector designed for electronic signal board-to-board connections. This connector features 22 contacts arranged in a single row with a fine 1.27 mm pitch enabling compact and efficient circuit layouts. The high temperature thermoplastic housing provides excellent mechanical strength and thermal resistance, suitable for harsh industrial environments.

The contacts are constructed from a copper alloy and plated with 0.76 μm gold, providing outstanding electrical conductivity and long-term corrosion protection. With a current rating of 1.5A and voltage rating of 30V, this connector meets the requirements of low power electronic applications.

Its vertical orientation with surface mounting technology allows easy integration on printed circuit boards. The termination type is solder, ensuring reliable and permanent attachment to PCB pads. It is specifically made as a receptacle type connector, compatible with the Molex 87713 series, facilitating flexible system design options.

The Molex connector operates over a wide temperature range from -40°C to 105°C, making it suitable for use in industrial, manufacturing, electronic diagnostic, and laboratory equipment. It is manufactured in Singapore, underscoring quality assurance for global electronics markets.

The connector supports 22 contacts in 1 row with 1.27 mm pitch. High temperature thermoplastic housing ensures durability in demanding environments. Gold-plated copper alloy contacts provide superior conductivity and corrosion resistance.

Rated for 1.5A current and 30V operating voltage. Designed for vertical orientation and surface mount on PCB. Termination via solder method offers secure PCB attachment. Suits industrial, electronics manufacturing, and laboratory applications.

Produced under Molex 87713 series standards with proven reliability.

This Molex 877131006 PCB Connector is ideal for applications requiring robust electrical connections and space-saving assembly. For more specialized connectors and components, explore our range in the Electronics & Electricals Connectors category on EnvMart.
