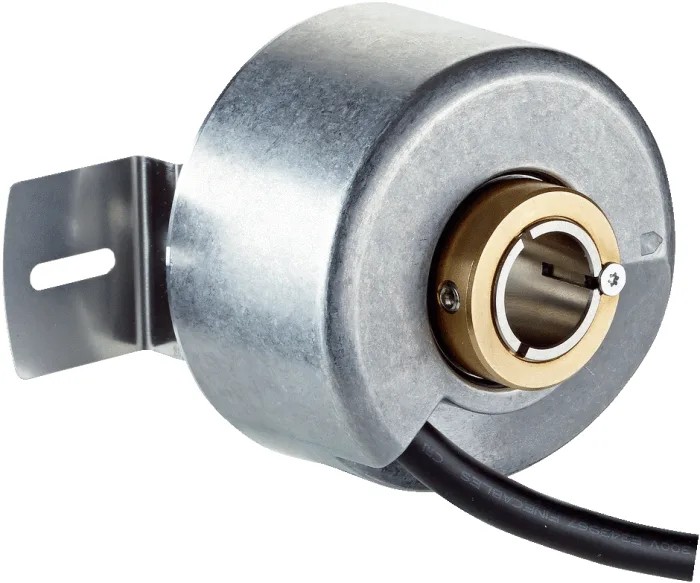

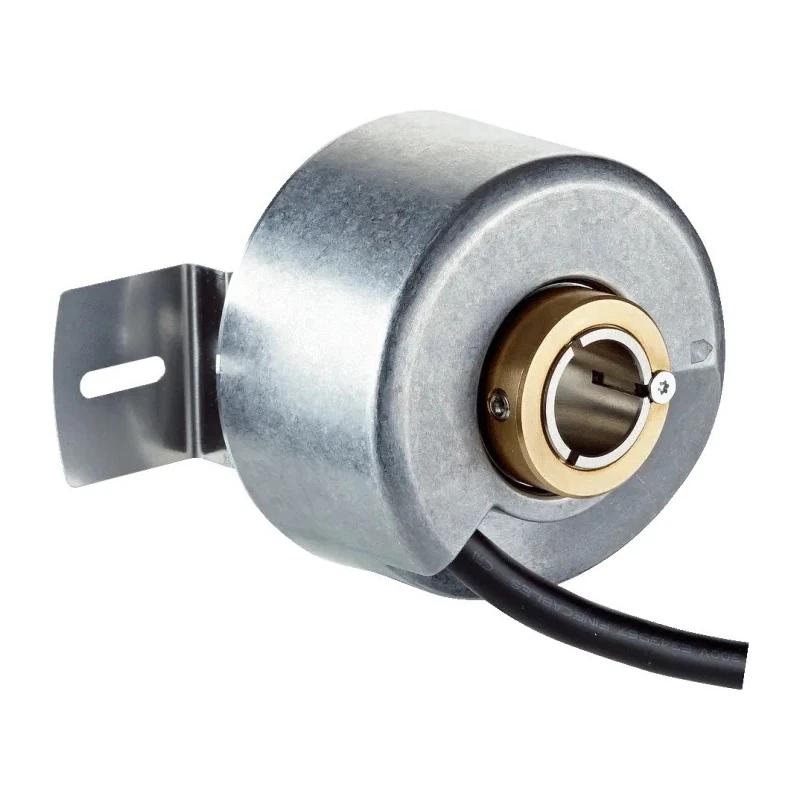

SICK DBS60 Core Series Incremental Encoder 30V, 1024 ppr, TTL, HTL Signal, Hollow Shaft 15.87 mm DBS60

The SICK DBS60 Core Series Incremental Encoder DBS60 is a robust industrial sensor designed for position, speed, and distance measurement in automation and control systems. This encoder features a hollow shaft with a diameter of 15.87 mm and supports 1024 pulses per revolution, providing precise incremental output signals compatible with TTL and HTL interfaces. It operates reliably with a supply voltage up to 30 V and is built to withstand temperatures from -30°C up to 100°C, making it suitable for harsh industrial environments.

The compact housing of 58 mm diameter and 43.8 mm depth allows easy integration into existing systems while saving valuable space. With an IP65 rating, this encoder is protected against dust ingress and water jets, ensuring durability in demanding applications such as factory automation, packaging machines, elevators, and logistics systems.

The DBS60 offers flexible mounting options including face mount and servo flange configurations with various hole patterns. Its hollow shaft is optionally insulated, with front and rear clamping features for secure installation. The device supports a switching frequency of 300 kHz, allowing for high-resolution signal output with minimal signal loss.

This encoder complies with EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility, ensuring reliable operation in electrically noisy environments. The rugged design includes a large bearing distance, providing enhanced shaft load capacity and extended service life.

Multiple connection types such as cable connection, M12, and M23 male connectors provide versatile cabling options. The encoder is engineered to reduce storage costs through minimized product variants by supporting standard interfaces TTL and HTL with a broad voltage range.

Applications include precise speed measurement on conveyor belts, position monitoring on transfer systems, and jerk-free control of elevator car acceleration and deceleration.

This product is manufactured in Malaysia and represents a reliable choice for automation, manufacturing, and industrial motion control applications. Explore more sensors and encoders in the Electronics & Electricals category at EnvMart.
