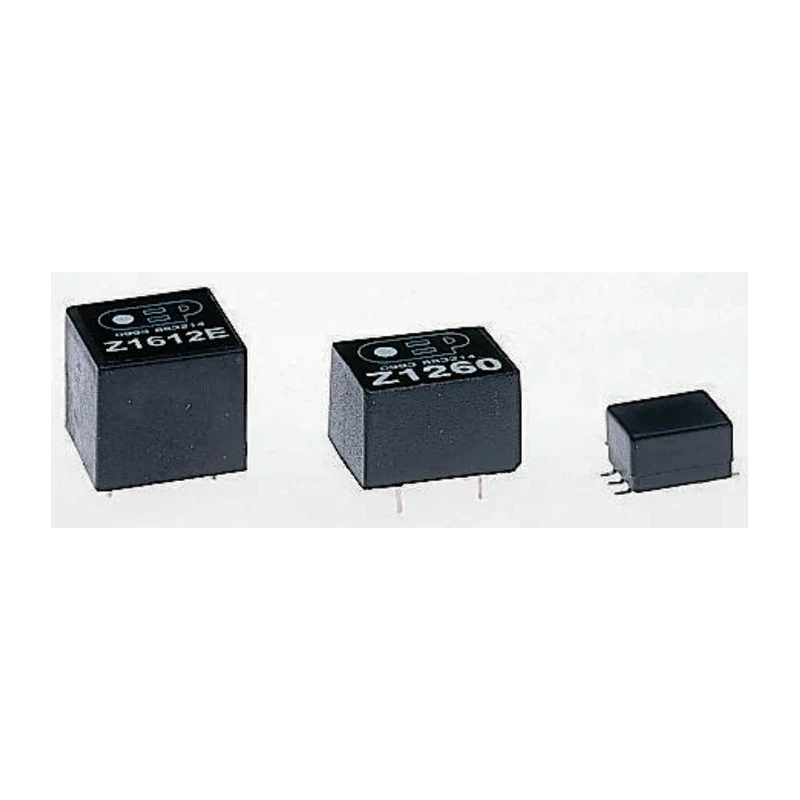

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 65Ω Primary Resistance Z1260
Specifications
| Country of Origin | China |
|---|---|
| Brand | OEP |
| Length | 19mm |
| Model | Z1260 |
| Depth | 15mm |
| Width | 11mm |
| Mount Type | Through Hole |
| Standards/Approvals | EN41003, EN60950, BS6305, BABT CR/0126 |
| Isolation Voltage | 5kV |
| Insertion Loss | 1.5dB |
| Turns Ratio | 1:1 |
| Primary DC Resistance | 65Ω |
| OEP Through Hole Pulse Transformer 1 | 1 Turns Ratio, 68Ω Prim. ResistanceBrand: OEP |
Key Features
- Constructed with a compact encapsulated resin in a glass-filled nylon box.
- Designed for PCB mounting using through hole technology.
- Provides a primary DC resistance of 65 ohms.
- Isolation voltage rating of 5 kV ensures safety in telecom applications.
- Insertion loss of 1.5 dB supports efficient signal transfer.
- Complies with standards EN41003, EN60950, BS6305, and BABT CR/0126.
- Flame retardant to UL94-V0 requirements for safety.
- Ideal for use in telecommunications line isolating circuits and data transmission.
Product Description
OEP Z1260 through hole pulse transformer is engineered with a 1:1 turns ratio and 65Ω primary resistance, designed specifically for data transmission and telecommunications line isolation applications. Its encapsulated resin construction within a glass-filled nylon box provides robust mechanical protection and flame retardance according to UL94-V0 standards.
Featuring through hole mount type, this transformer is suitable for PCB surface assemblies requiring reliable isolation and signal integrity. It offers a primary DC resistance of 65 ohms and an insertion loss of 1.5 dB, ensuring efficient energy transfer with minimal signal degradation.
With dimensions of 19 mm length, 11 mm width, and 15 mm depth, it fits compact PCB designs while maintaining isolation voltage up to 5 kV for enhanced safety. It conforms strictly to certifications and standards including EN41003, EN60950, BS6305, and BABT CR/0126, making it compliant for professional industrial and telecommunication usage.
This pulse transformer is ideal for industrial electronics, telecommunications, and data communication systems requiring line isolating components with high safety and performance ratings. Manufactured in China with precise quality control, it delivers consistent electrical characteristics and mechanical reliability.
Constructed with resin encapsulated in glass-filled nylon box providing flame retardance and durability. Through hole mount type facilitates secure PCB installation in compact layouts. Primary DC resistance of 65Ω and insertion loss of 1.5 dB ensure efficient signal processing.
Isolation voltage is rated for 5 kV for reliable electrical isolation and safety. Meets industry standards EN41003, EN60950, BS6305, and BABT CR/0126. Dimensions 19 mm (L) x 11 mm (W) x 15 mm (D) support versatile PCB design integration.
Suitable for telecommunications circuits, data transmission, and industrial electronics. Flame retardant to UL94-V0 standards providing enhanced safety during operation. Explore more Pulse Transformers and power supply components on EnvMart for your industrial and electronic system needs.
