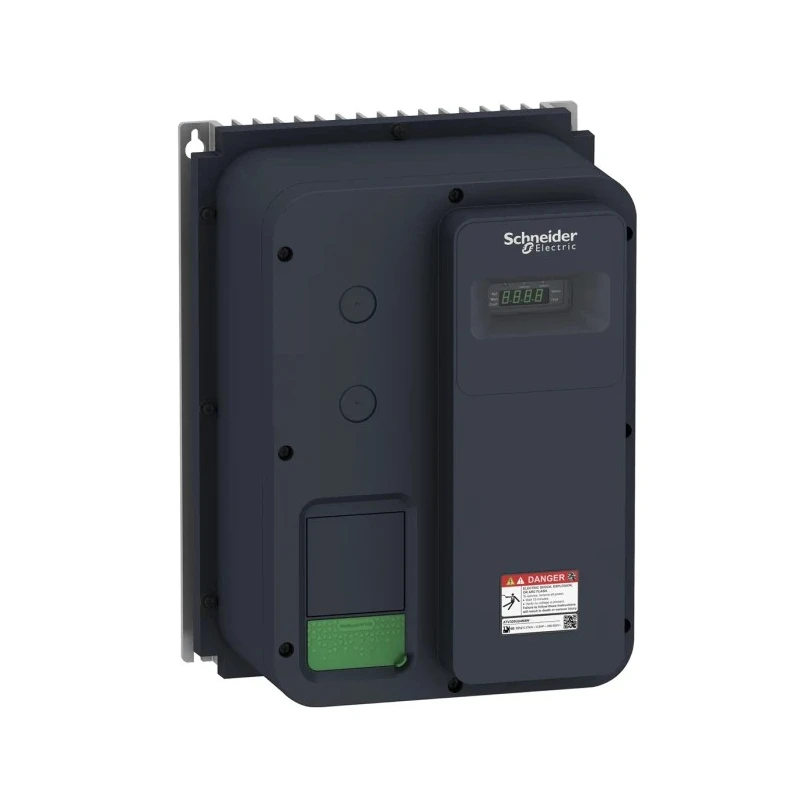

Schneider Electric Variable Speed Drive 1.5 kW 3 Phase Altivar Series ATV320U15N4W
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U15N4W |
| IP Rating | IP66 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | Altivar |
| Overall Width | 200mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 4.1A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, AC Motor, Synchronous |
Key Features
- Operates from 380V to 500V AC with maximum output current of 4.1 A.
- IP66 rating with fanless washable drive design for harsh environments.
- Supports asynchronous, synchronous, and AC motors with embedded EMC C2 filter.
- Includes Modbus and CANopen communication via front RJ45 connector.
- Features 5 configurable safety functions using SoMove software.
- Applications include conveyors, packaging, gantry cranes, woodworking, metal processing, and Food & Beverage.
- Complies with international standards including IEC, UL, CSA, and REACH.
- Compact dimensions and lightweight design for easy wall mount installation.
Product Description
Schneider Electric ATV320U15N4W Variable Speed Drive delivers 1.5 kW power and supports 3 phase motors within a supply voltage range of 380 V to 500 V AC.
The drive offers IP66 ingress protection, allowing operation in dusty and chemically challenging environments. It features a fanless design with an embedded EMC C2 filter for reduced maintenance. Communication is facilitated via standard Modbus and CANopen protocols with an accessible RJ45 connector on the front, enabling easy integration into existing automation networks.
Advanced safety is provided through integrated safety functions configurable by SoMove software, ensuring compliance with stringent machine safety requirements. The ATV320U15N4W is suitable for various industrial applications including conveyors, carton packers, gantry cranes, woodworking machinery, metal processing, as well as Food & Beverage processing environments.
This model meets numerous national and international certifications such as CSA, C-Tick, EN/IEC 61800 series, GOST, IEC 13849-1, IEC 60721-3, IEC 61508, NOM, REACH, and UL standards, demonstrating its reliability and compliance for diverse industrial needs.
Compact and lightweight at 6 kg, with wall mounting options and overall dimensions of 250 mm length, 200 mm width, and 340 mm depth, the drive enables easy installation. The Altivar Machine ATV320 range supports both asynchronous and synchronous motors, delivering open loop motor control for dynamic accuracy during start/stop operations.
Operates at output frequency from 0.1 to 599 Hz suitable for precise speed control. Designed to be installed alone or side-by-side in multi-drive configurations. Compatible with EcoStruxure Machine software for comprehensive machine configuration, commissioning, and network automation.
Energy-efficient design contributes to sustainability with Better World certification and energy saving features.
Schneider Electric ATV320U15N4W Variable Speed Drive is an ideal solution for industrial automation, manufacturing, material handling, packaging, textiles, hoisting, and mechanical actuators requiring reliable, safe, and efficient motor speed control.
Explore more variable speed drives and automation control gear in the Electronics & Electricals category at EnvMart.
Explore more products in our Automation & Control Gear category.
