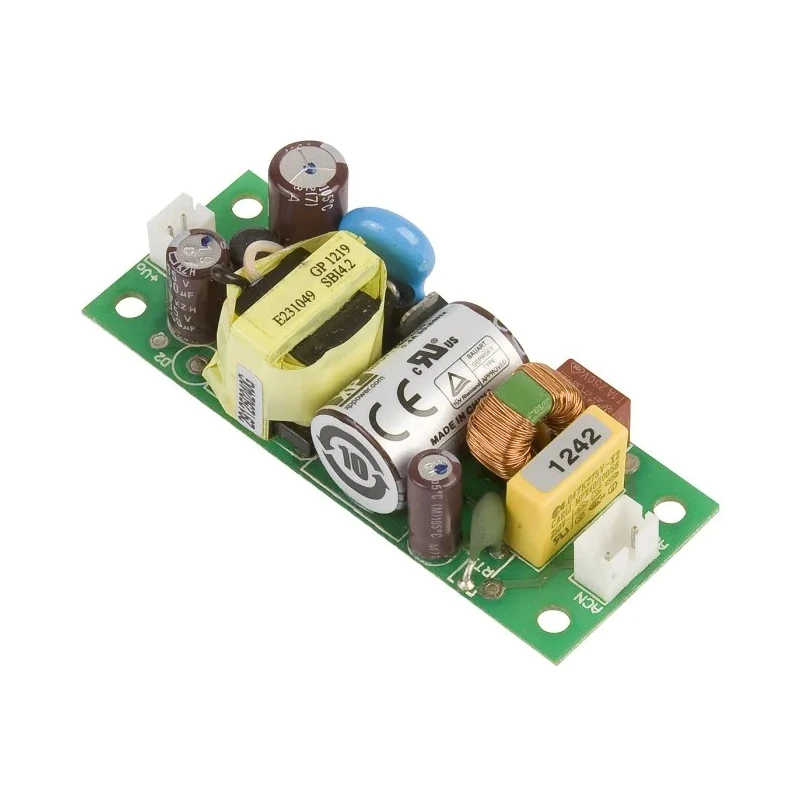

XP Power ECL05US05-T Switching Power Supply 5V DC 5W Chassis Mount Single Output 85–264V AC

Free Delivery in India | Lowest Global Shipping Charges

XP Power ECL05US05-T Switching Power Supply 5V DC 5W Chassis Mount Single Output 85 - 264V AC

Name: XP Power ECL05US05-T Switching Power Supply 5V DC 5W Chassis Mount Single Output 85 - 264V AC
Brand: XP Power
SKU: 88358



Category Switching Power Supply Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	5W
Efficiency	75%
Length	65mm
Model	ECL05US05-T
Depth	18.5mm
Gross Weight	26g
Width	25.4mm
Mount Type	Chassis
Series	ECL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	5V dc
SMPS Output Current	1A
Minimum Input Voltage	85V ac

Key Features

Provides a regulated 5V DC output at up to 1A current.
Compact chassis mount design suitable for embedded and industrial electronics.
Supports wide AC input voltage range from 85V to 264V.
Rated for 5W continuous power output.
Single output configuration ideal for dedicated equipment.
Operating temperature range from -20°C to 70°C ensures versatility.
High efficiency rated at 75% for optimized energy use.
Meets EN and IEC safety standards for switching power supplies.

Product Description

XP Power ECL05US05-T is a high-reliability Switching Power Supply engineered for professional electronics and industrial automation applications. This versatile unit delivers a stable 5V DC output at up to 1A current, suitable for powering instrumentation, embedded devices, automation controls, and low-voltage electronics.

With its compact chassis mount form factor, the ECL05US05-T is ideal for installation within industrial enclosures, control panels, and equipment housings. The wide AC input range of 85V to 264V permits flexible integration into both global and local power systems, reducing the need for external voltage conditioning or transformers.

Rated at 5W continuous power, the device offers dependable single output operation, optimized for critical applications where stable voltage and current regulation are required. Efficient performance is ensured by a typical energy conversion rating of 75%, minimizing heat generation and supporting reliable operation over extended duty cycles.

Operational safety and compliance are confirmed through adherence to multiple standards, including EN 60950-1, IEC 60950-1, and UL 60950-1, as well as EMC standards like EN 55022 and EN 61000 series. The robust design allows for operating temperatures from -20°C to 70°C, facilitating use in diverse industrial and laboratory environments.

Physical construction features an ultra-compact footprint with dimensions of 65mm length, 25.4mm width, and 18.5mm depth, and a lightweight build at approximately 26g. This makes it ideally suited for equipment requiring space-saving and low-mass components.

Stable regulated output for sensitive electronics and control circuits. Mounts securely in industrial and embedded applications. Compatible with AC mains worldwide via wide input range. Efficient energy use, minimal thermal rise, and robust safety certification.

Single output channel simplifies system-level design. Designed for long service life in high-performance settings. Applications include industrial automation, laboratory equipment, HVAC controls, telecommunications hardware, and commercial embedded systems.
