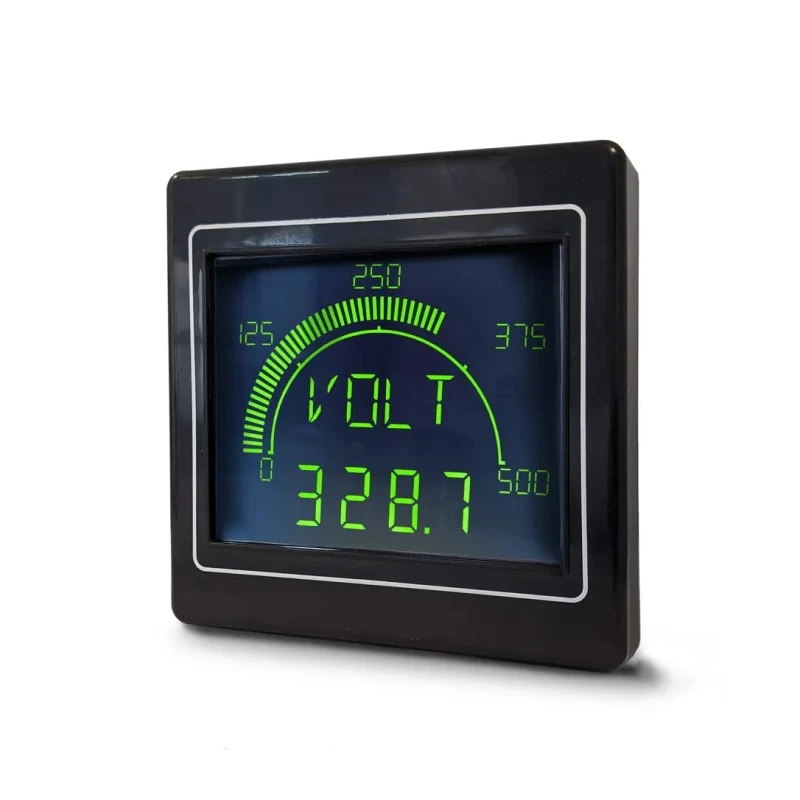

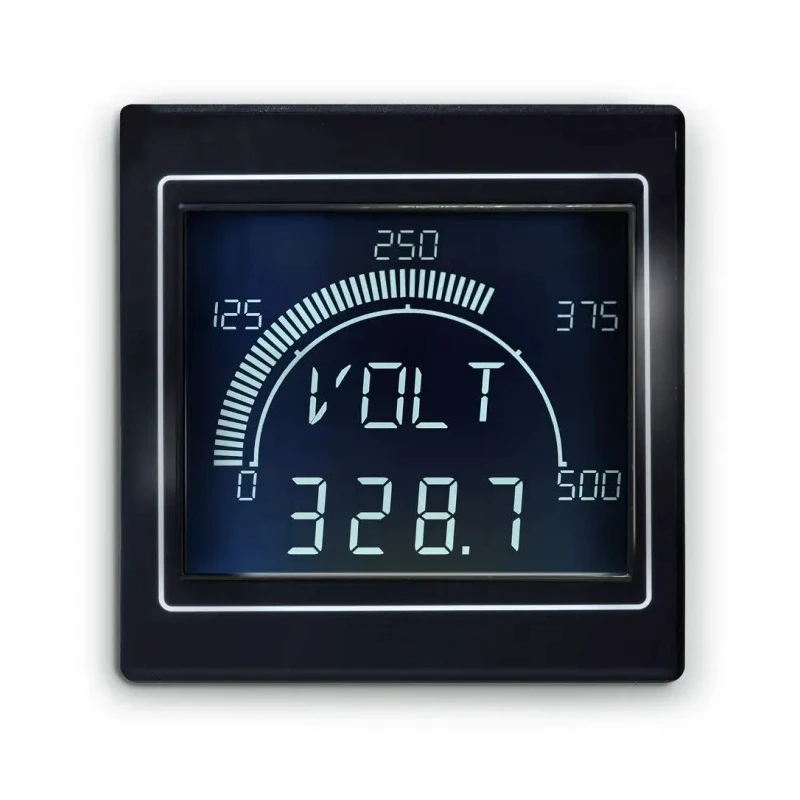

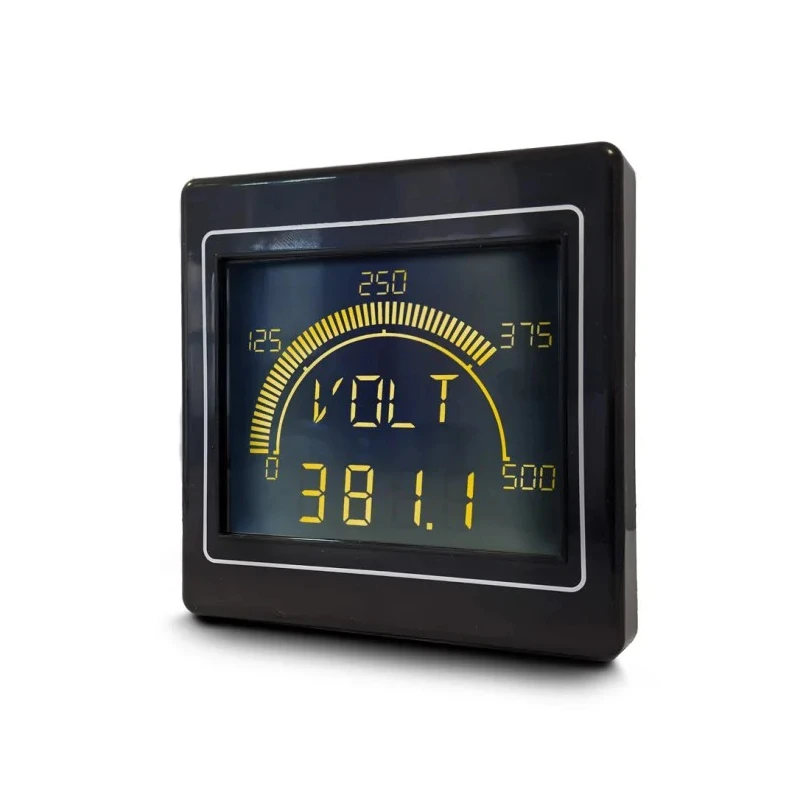

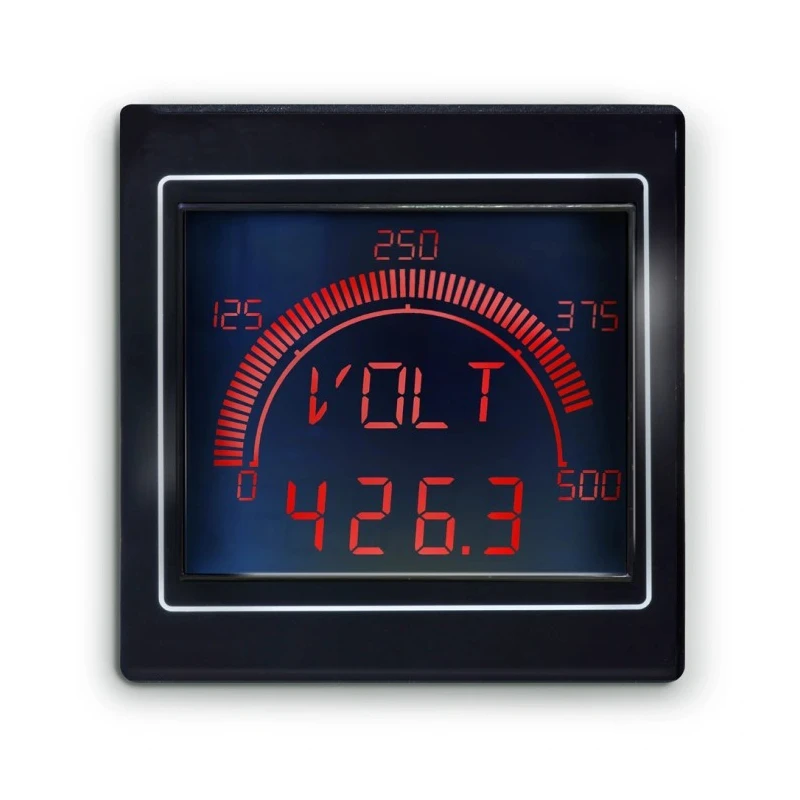

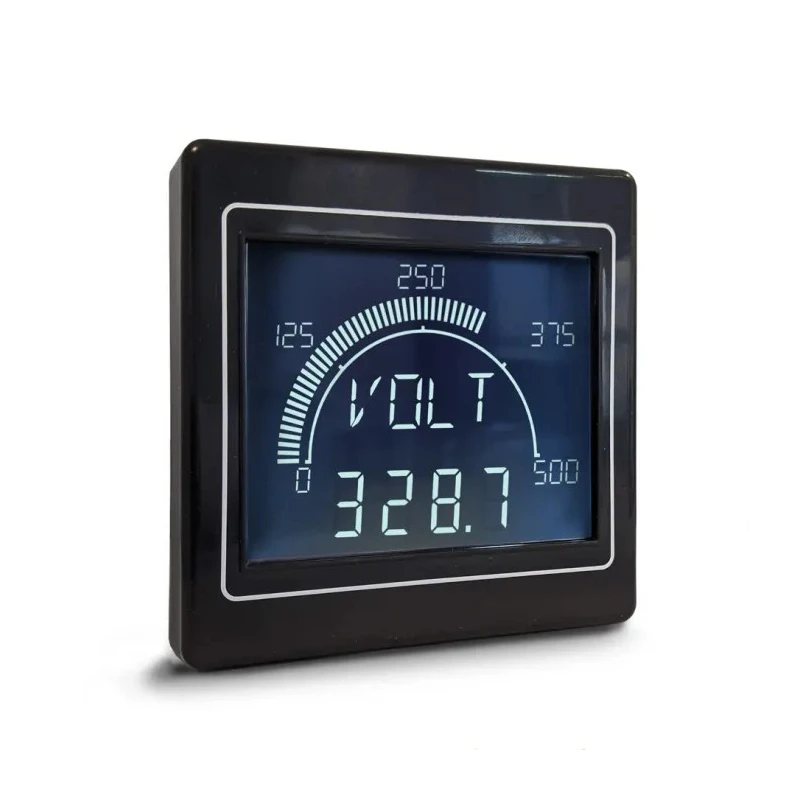

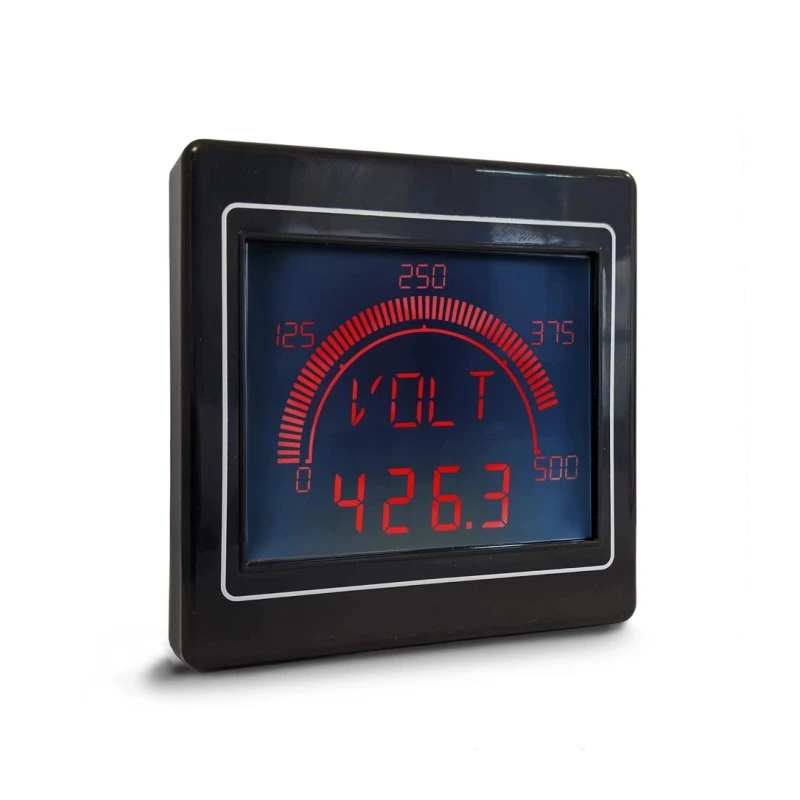

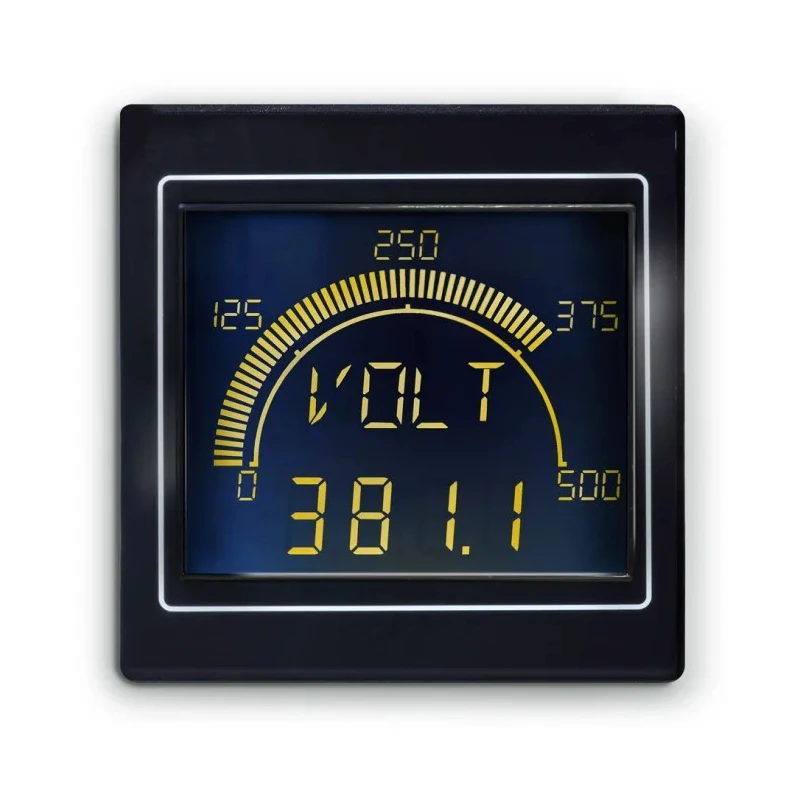

Trumeter APM-MAX LCD Digital Panel Multifunction Meter for Process Meter or Shunt Meter, 68 mm x 68 mm APM-MAX-M23-NU-4B
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Display | screen |
| Brand | Trumeter |
| Model | APM-MAX-M23-NU-4B |
| Depth | 45mm |
| Series | APM-MAX |
| Maximum Operating Temperature | 60°C |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14.5mm |
| Standards/Approvals | UL and cUL, CE |
| Properties Measured | Process Meter or a Shunt Meter |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| Minimum Measurement | 0 A, 0 V |
| Maximum Measurement | 600 V |
| 2 independent outputs | 2 digital (open collector), 1 analogue (4 - 20mA) |
Key Features
- Configurable as a process meter or shunt meter with measurement ranges 0-50mA DC direct or 0-500mV DC with shunt.

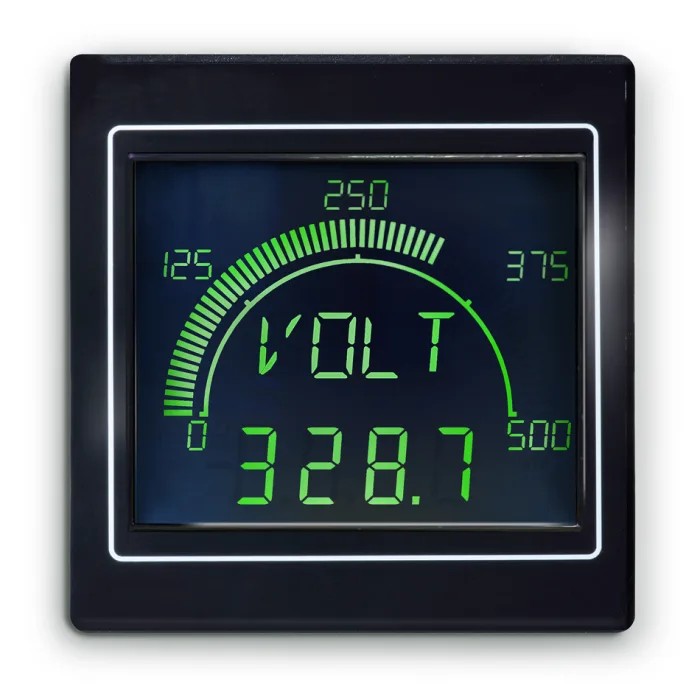

- Large 81.5 mm x 66 mm LCD screen featuring a 60-segment bar graph and 4-digit numeric display.
- Full color RGB dynamic backlight enabling customizable alerts and enhanced visualization.
- Programmable scaling, two alarm setpoints, two digital outputs, and one analogue 4-20mA output.
- Supports communication via serial MODBUS RTU and TCP/IP protocols for system integration.
- IP65 rated for dust and water resistance with reliable operation from -10°C to 60°C.
Product Description
Trumeter APM-MAX-M23-NU-4B is a high-precision LCD digital panel multifunction meter designed for industrial process measurement and control applications. It supports use as a process meter or a shunt meter for low voltage DC signals, capable of measuring ranges from 0-50mA DC direct or 0-500mV DC with an external shunt. The meter features a notably large 81.5 mm x 66 mm display, 25% larger than standard models, which combines a 60-segment bar graph with a large four-digit numeric display for clear, precise readings.
The full-color RGB backlight provides dynamic visual feedback, allowing instant alerts and easy configuration of backlight color and intensity to suit various monitoring environments. It also offers programmable scaling and range options, including minimum and maximum values, offset, gain, and non-linear scaling for customized measurement setups.
Equipped with two independent alarm setpoints and two digital outputs (open collector type) plus a 4-20mA analogue output, this meter facilitates advanced control functions. Communication interfaces include serial MODBUS RTU and TCP/IP, enabling integration into complex industrial automation and monitoring systems.
The device is IP65 rated, providing dust and water resistance suitable for demanding industrial conditions. The robust construction and advanced features make it ideal for applications in industrial automation, process control, manufacturing, water treatment, and electrical systems requiring precise process monitoring and control.
The meter fits standard 68 mm x 68 mm square cutouts, has a depth of 45 mm, and operates reliably between -10°C and 60°C. Its 4-digit display has a digit height of 14.5 mm for excellent readability in varying lighting conditions.
Configurable as process meter or shunt meter with 0-50mA DC or 0-500mV DC measurement. Large 81.5 mm x 66 mm LCD screen with 60-segment bar graph display and 4-digit numeric readout. Full color RGB dynamic backlight for customizable alerts and easy visualization.
Supports programmable scaling, alarm setpoints, digital and analog outputs for control integration. Communication via serial MODBUS RTU and TCP/IP for advanced system integration. IP65 rated enclosure for harsh industrial environments and wide operating temperature range.
This meter is categorized under Digital Panel Multifunction Meters at EnvMart. Explore more products within the Industrial Automation Systems section to find complementary automation and control devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure 0-50mA DC directly or 0-500mV DC with an external shunt.
It fits standard 68 mm x 68 mm cutouts and has a depth of 45 mm.
It features an LCD display that combines a 60-segment bar graph with a four-digit numeric readout.
The maximum operating temperature is 60°C.
It supports communication via serial MODBUS RTU and TCP/IP protocols for integration into systems.
It includes two digital outputs (open collector type) and one analogue output (4-20mA).
The minimum operating temperature is -10°C.
It is compliant with UL and cUL, as well as CE standards.
The digit height is 14.5 mm, enhancing readability in various lighting conditions.
The full-color RGB dynamic backlight enables customizable alerts and visualization settings.
It is suitable for applications in industrial automation, process control, manufacturing, water treatment, and electrical systems.
It can be configured as either a process meter or a shunt meter for low voltage DC signals.
