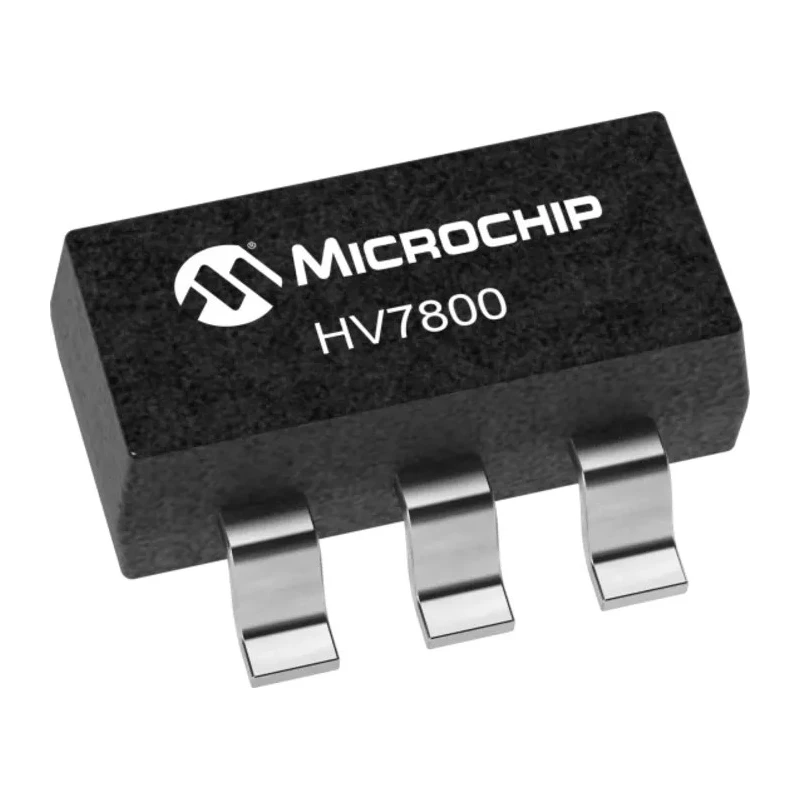

Microchip Current Monitor 5-Pin SOT-23 High-Side Analog Voltage Output HV7800K1-G

Microchip HV7800K1-G is a high side current monitor IC housed in a compact 5-pin SOT-23 package designed for precise voltage sensing applications. It transfers high-side current measurement voltage, referenced to ground output, with a voltage gain of one, typically used with a current sense resistor on positive supply lines.

The device supports an exceptionally wide input voltage range from 8V up to 450V and operates efficiently with a low quiescent current of 50μA, making it suitable for portable and battery-powered devices, as well as offline applications.

With an offset voltage rating of 450 V and operation temperature range from -40°C to 85°C, the HV7800K1-G delivers reliable performance in demanding industrial environments. Its surface-mount SOT-23 package (2.9mm length, 1.45mm height) ensures minimal PCB space consumption.

The current monitor provides a fast rise and fall time from 700ns to 2.0μs, enabling rapid and accurate current sensing in various electronic and industrial monitoring applications.

Designed with low power consumption and ease of use in mind, this IC is appropriate for battery-powered, industrial automation, and instrumentation use cases, meeting RoHS environmental restrictions.

Wide supply voltage: 8V to 450V. Low quiescent current of 50μA. Offset voltage up to 450 V for precise measurements. Compact 5-pin SOT-23 surface mount package. Operating temperature range: -40°C to 85°C. Fast output response time: 700ns to 2.0μs.

Compliance with RoHS standards. Ideal for industrial current sensing and monitoring applications.

This Microchip current monitor supports applications in industrial control, power management, and electronic equipment testing, providing reliable and accurate current measurement. Explore EnvMart's large selection of semiconductor and sensor ICs for additional components and solutions.
