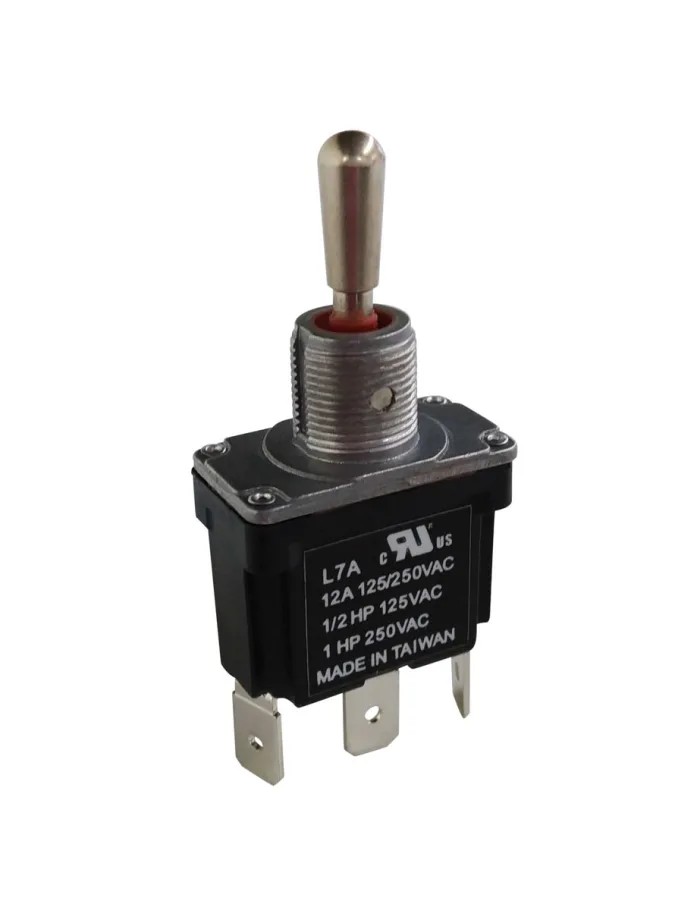

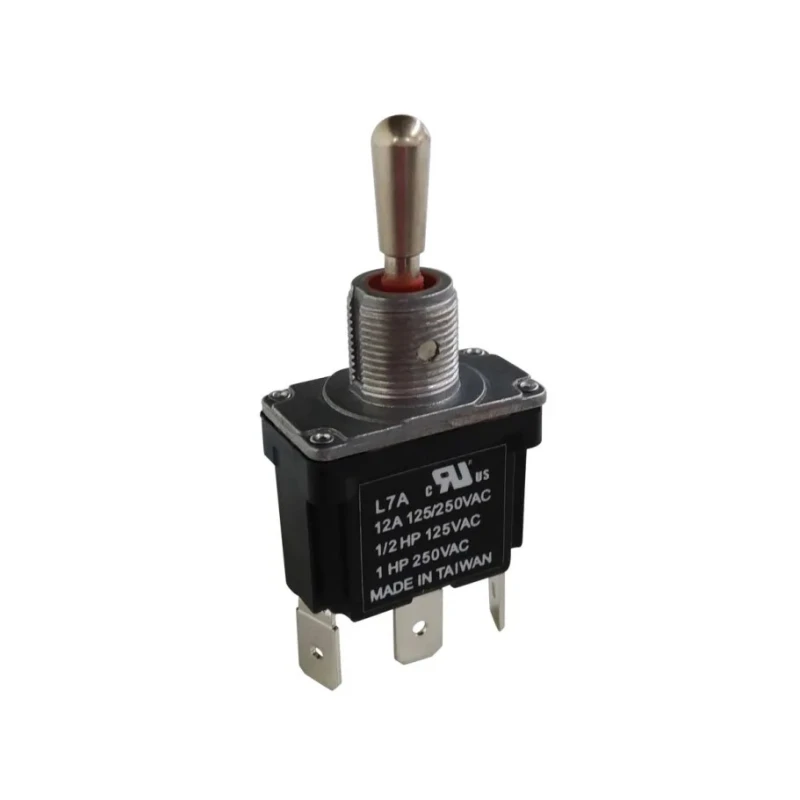

RS PRO Toggle Switch PCB Mount On-Off-On SPDT 12A Solder Terminal 250V AC 206-6981

RS PRO 206-6981 Toggle Switch is a reliable, high-quality SPDT switch designed for PCB mounting applications requiring robust control and durability. It features a single pole double throw (SPDT) contact configuration with On-Off-On switch operation, allowing circuits to be connected to two different outputs effectively. The switch is rated for a contact current of 12A at 125/250 VAC, making it suitable for a variety of electrical control tasks.

This toggle switch incorporates a brass actuator of 17 mm length for enhanced sturdiness and tactile feedback. The switch is constructed with a nylon 66 body and brass terminals with tin plating, ensuring longevity and reliable electrical connections. An O-ring silicone gasket provides IP68 front panel protection, preventing ingress of dust and water, which makes it apt for harsh industrial environments.

Designed for mechanical life up to 30,000 operating cycles, this switch withstands temperature ranges from -30°C to +85°C, supporting use in diverse climates and applications including telecommunications, aerospace, automotive sectors, instrumentation control, industrial automation, and material handling. It carries approvals from UL, cUL, and RoHS, attesting to its quality and compliance standards.

The mounting type is PCB with solder terminals for easy and secure circuit board assembly. Care should be taken to store the switches in dry and cool environments with humidity less than 90% to prevent terminal oxidation. The switch is produced in Taiwan, Province Of China.

Single Pole Double Throw (SPDT) contact configuration. On-Off-On switch operation for circuit switching flexibility. 12A contact current rating at 125/250 VAC. Brass actuator with 17mm length supports durability. IP68 front panel sealed to prevent dust and water ingress.

Operating temperature range from -30°C to +85°C. Mechanical life rated for 30,000 cycles ensuring long-term reliability. UL, cUL, and RoHS compliance for safety and environmental standards. PCB mount with solder terminals for secure installation.

Suitable for telecommunications, aerospace, automotive, and industrial control applications. Explore the RS PRO Toggle Switches category for a wide range of reliable electrical switching solutions for industrial and commercial automation needs on EnvMart.
