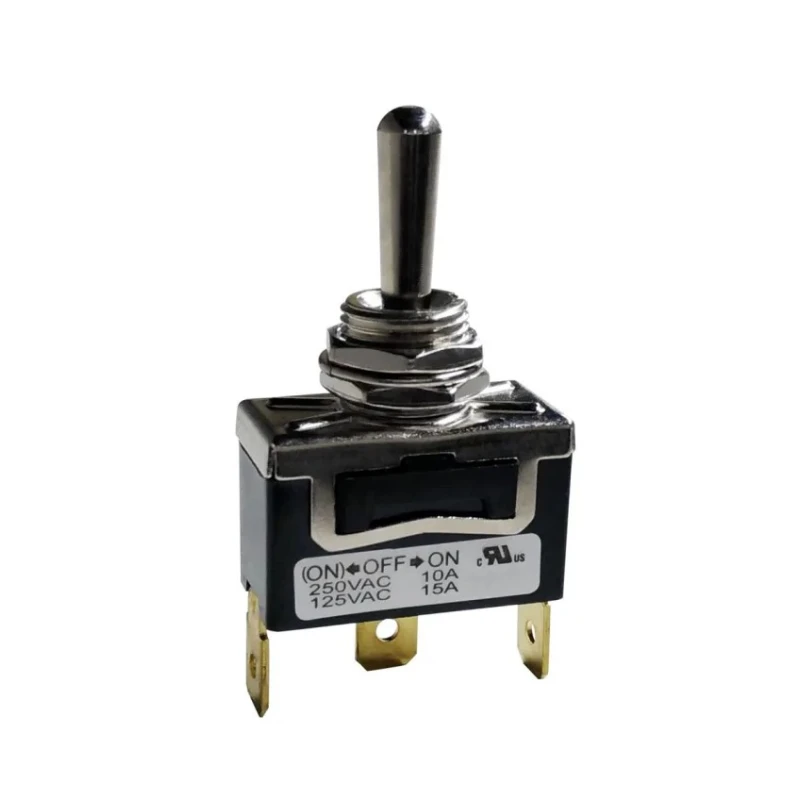

RS PRO Toggle Switch PCB Mount On-Off-On SPDT Solder Terminal 250 V ac 10A 206-7007
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 55.3mm |
| Length | 28.89mm |
| Model | 206-7007 |
| IP Rating | IP40 |
| Width | 14.44mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | UL & cUL, RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17mm |
| Switch Contact Current | 10A |
| Mechanical Life | 10Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Single pole double throw contact configuration designed for versatile circuit control.
- On-Off-On switch operation allows switching between two different circuit outputs or turning the circuit off.
- Mount type is PCB with solder terminal connections for easy integration on printed circuit boards.
- Brass actuator material provides durability and reliable mechanical operation.
- Rated for 10A contact current at 250V AC for heavy-duty electrical uses.
- Designed with IP40 front panel protection to prevent intrusion of solid objects larger than 1 mm.
- Operating temperature range from -20°C up to 55°C suitable for varied environments.
- Complies with UL & cUL standards and RoHS for electrical safety and environmental compliance.
Product Description
RS PRO 206-7007 is a high-quality toggle switch designed for PCB mounting with an On-Off-On switch operation and SPDT contact configuration. It features solder terminal connections ensuring secure and reliable installation on printed circuit boards. This switch accommodates a contact current of 10A at 250 volts AC, making it suitable for demanding electrical applications.
The toggle switch actuator is made of brass with nickel plating for enhanced mechanical strength and corrosion resistance. It offers IP40 front panel protection, preventing ingress of solid particles larger than 1 mm, ensuring dependable operation in industrial and commercial settings.
Operating reliably in temperature conditions ranging from -20°C to 55°C, the switch is ideal for environments such as telecommunications, aerospace, automotive, industrial control, instrumentation, and material handling systems.
The RS PRO 206-7007 toggle switch meets UL and cUL certification standards and complies with RoHS regulations, affirming its electrical safety and environmental stewardship. With a mechanical life rated for up to 10,000 switching cycles, this switch assures long-term durability.
The construction includes a phenolic resin black base, nickel plated iron housing, bronze terminals with nickel plating, and accompanying hardware such as nickel-plated iron nuts and steel washers.
Single pole double throw contact configuration enabling changeover switching. On-Off-On switch operation for versatile circuit control. Solder terminal type designed for PCB integration. Rated 10A @ 250V AC contact current.
IP40 protection rating to prevent dust ingress. Brass actuator for durability. Operating temperature between -20°C to 55°C. UL & cUL approved and RoHS compliant. Mechanical life of 10,000 cycles.
This toggle switch is widely applied in industrial, commercial, and manufacturing applications requiring reliable on/off and changeover switching functions. It is part of the RS PRO series known for quality and robust performance.
For more Toggle Switch options and other electrical components, explore the comprehensive selection at EnvMart in the Electronics & Electrical category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a single pole double throw (SPDT) contact configuration, allowing for versatile circuit control with an On-Off-On operation.
It is rated for a contact current of 10A at 250V AC, making it suitable for heavy-duty electrical applications.
The dimensions are 55.3mm in height, 28.89mm in length, and 14.44mm in width.
This model features solder terminals, designed for secure and reliable installation on printed circuit boards.
The operating temperature range is from -20°C to 55°C, suitable for various environments.
It has an IP40 front panel protection rating, which prevents the ingress of solid particles larger than 1 mm.
The mechanical life of this toggle switch is rated for up to 10,000 switching cycles.
It complies with UL and cUL certification standards and is RoHS compliant for electrical safety and environmental stewardship.
The actuator is made of brass, providing durability and reliable mechanical operation.
This model is suitable for applications in telecommunications, aerospace, automotive, industrial control, instrumentation, and material handling systems.
It is designed for PCB mounting, allowing for easy integration into printed circuit boards.
The actuator length is 17mm, facilitating user operation of the switch.
