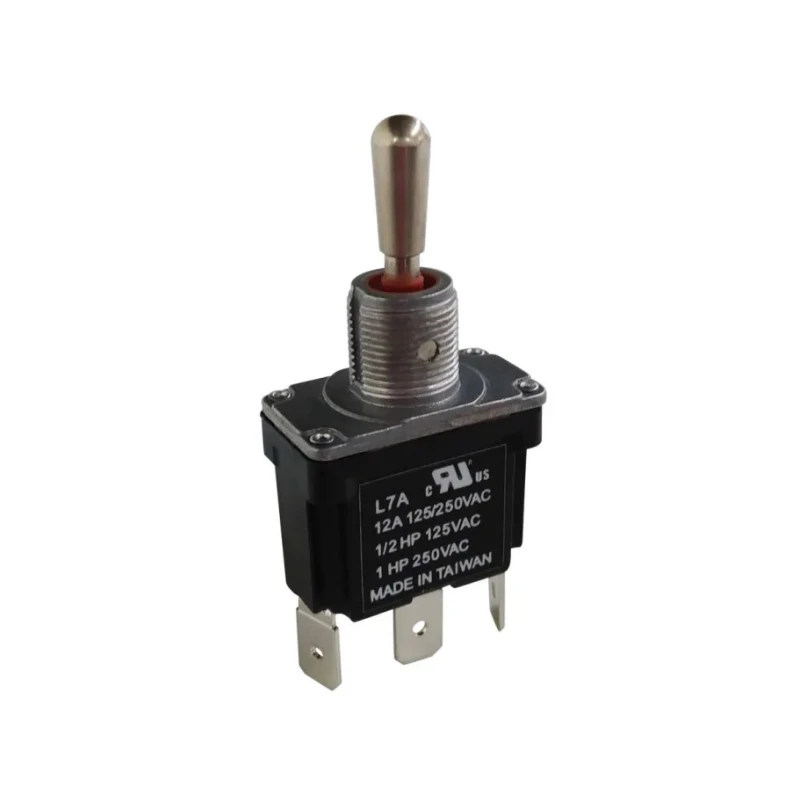

RS PRO Toggle Switch, PCB Mount, On-Off-On, SPDT, Solder Terminal, 12A Contact Current, 250 V AC, IP68 Rated 206-6980
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 64.2mm |
| Length | 28.7mm |
| Model | 206-6980 |
| IP Rating | IP68 |
| Width | 15.7mm |
| Mount Type | PCB |
| Body | Nylon 66 |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Contact Rating | 12A @ 125/250VAC, 1/2 HP 125VAC, 1HP 250VAC |
| Note | Prior to mounting products onto the circuit board as well as for unused units, it is recommended to keep them within a sealed bag |
| Minimum Operating Temperature | -30°C |
| Hardware | Steel with trivalent zinc plating |
| Terminals | Brass with tin plating |
| Terminal type | Solder |
| Standards/Approvals | UL & cUL, RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17mm |
| Switch Contact Current | 12A |
| Mechanical Life | 10Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| Bushing | Aluminium die-casting alloy |
| O ring | Silicone gasket |
Key Features
- Single pole double throw (SPDT) contact configuration for versatile switching.
- On-Off-On switch operation allows changeover and off positions.
- Rated for 12A contact current and 250V AC voltage.
- Constructed with brass actuator and aluminium die-casting alloy bushing for durability.
- IP68 front panel protection ensures dust and water resistance.
- Mechanical life of 10 cycles suitable for industrial use.
- Operating temperature range from -30°C to +85°C for varied environments.
- Solder terminal type designed for PCB mounting and assembly.
Product Description
RS PRO 206-6980 toggle switch is a high-quality PCB mount toggle switch featuring an SPDT contact configuration and an On-Off-On switch operation. It supports a contact current of 12A at 250V AC, making it suitable for various industrial, telecommunications, automotive, aerospace, instrumentation control, and material handling applications.
Designed for robust performance, the actuator is made of brass with a bushing crafted from aluminium die-casting alloy, ensuring durability and reliable mechanical operation. The switch offers IP68 front panel protection, providing excellent resistance against dust and water ingress, making it ideal for harsh environments.
The toggle switch supports an operating temperature range from -30°C up to +85°C, ensuring stable function across different ambient conditions. It includes solder tab terminals optimized for PCB assembly and is constructed with a Nylon 66 body and brass terminals with tin plating for enhanced conductivity and corrosion resistance. The hardware components use steel with trivalent zinc plating for added durability.
This RS PRO toggle switch complies with industry standards, including UL, cUL, and RoHS certifications, underscoring its safety and environmental conformance. The mechanical life is rated at 10 cycles.
Applications include industrial control solutions, telecommunications equipment, aerospace systems, automotive electronics, and instrumentation controls. Single pole double throw (SPDT) contact configuration. On-Off-On switch operation allows circuit changeover.
Rated contact current: 12A at 125/250VAC. IP68 front panel sealing for protection. Operating temperature range from -30°C to +85°C. Brass actuator and aluminium die-casting alloy bushing. Solder terminal type for PCB mounting.
Body of Nylon 66 with tin-plated brass terminals. Meets UL, cUL, and RoHS standards. Mechanical life of 10 cycles.
Set contains one toggle switch suitable for PCB mounting applications requiring robust and reliable ON-OFF-ON switching. It is recommended to store unused units in sealed bags to prevent terminal oxidization and maintain product integrity prior to mounting.
Explore the entire RS PRO Toggle Switch range and related industrial electrical components on EnvMart for quality-assured products and competitive offerings.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a contact rating of 12A at 125/250VAC, and it can handle 1/2 HP at 125VAC and 1HP at 250VAC.
This model has an IP68 rating, providing excellent resistance against dust and water ingress.
The operating temperature range is from -30°C to +85°C, allowing it to function in varied environments.
It features solder terminals designed for PCB mounting and assembly.
The body is made of Nylon 66, with brass terminals that have tin plating, and the actuator is made of brass with an aluminium die-casting alloy bushing.
The mechanical life of this toggle switch is rated for 10 cycles.
It complies with UL, cUL, and RoHS standards, ensuring safety and environmental conformance.
The dimensions of the toggle switch are 64.2mm in height, 28.7mm in length, and 15.7mm in width.
This toggle switch operates with an On-Off-On configuration, allowing for circuit changeover.
It is recommended to store unused units in sealed bags to prevent terminal oxidization and maintain product integrity prior to mounting.
The hardware components are made of steel with trivalent zinc plating for added durability.
This toggle switch is suitable for various applications including industrial control solutions, telecommunications equipment, aerospace systems, automotive electronics, and instrumentation controls.
