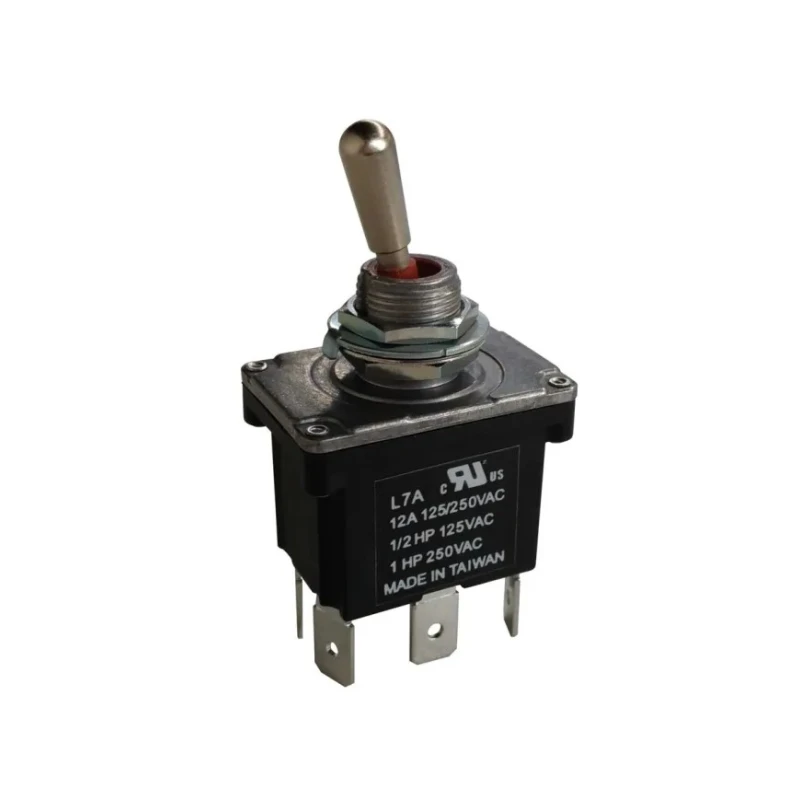

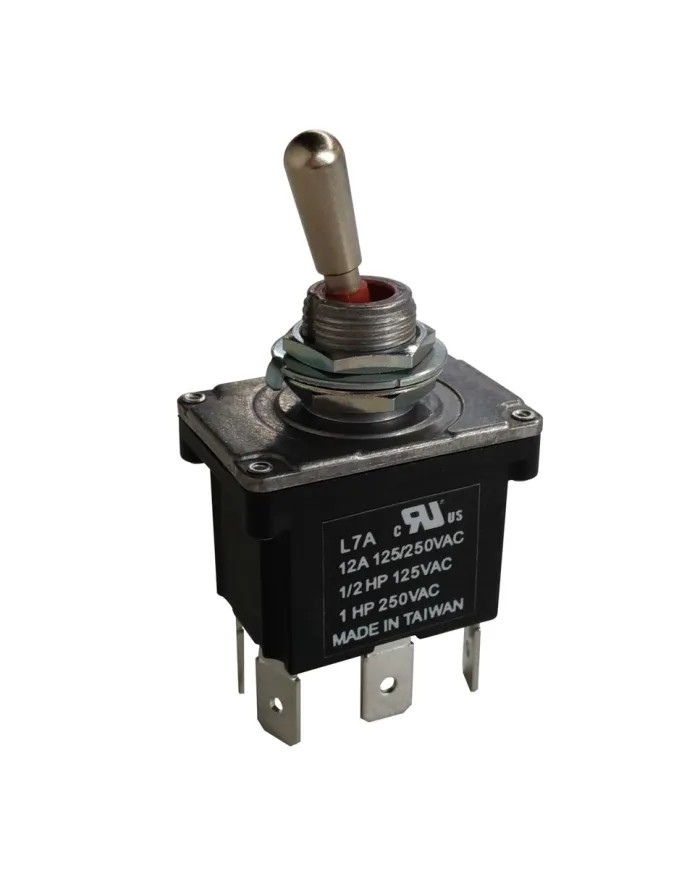

RS PRO Toggle Switch PCB Mount On-On DPDT Solder Terminal 250 V ac 206-6975
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 64.2mm |
| Length | 28.7mm |
| Model | 206-6975 |
| IP Rating | IP68 |
| Width | 15.7mm |
| Mount Type | PCB |
| Body | Nylon 66 |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Note | Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag |
| Minimum Operating Temperature | -30°C |
| Hardware | Steel with trivalent zinc plating |
| Terminals | Brass with tin plating |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL & cUL |
| Switch Operation | On-On |
| Actuator Length | 17mm |
| Switch Contact Current | 12A |
| Mechanical Life | 10Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| Bushing | Aluminium die-casting alloy |
| O ring | Silicone gasket |
Key Features
- DPDT contact configuration with On-On switch operation for dual circuit control.
- Designed for PCB mounting with solder terminal type for secure electrical connection.
- Actuator made of brass with 17mm length for reliable mechanical operation.
- IP68 front panel protection ensuring durability against dust and water ingress.
- Suitable for operating temperatures from -30°C to 85°C, ideal for harsh environments.
- Designed for mechanical life of 10 cycles, ensuring dependable switching cycles.
- Compliant with RoHS, UL, and cUL standards for quality and safety assurance.
- Applications include telecommunications, aerospace, automotive, instrumentation, and industrial control solutions.
Product Description
RS PRO 206-6975 Toggle Switch is a PCB mount, On-On double pole double throw (DPDT) switch designed for industrial and automation applications requiring robust and reliable electrical control at 250 V AC. It features a solder terminal type for easy PCB integration and a brass actuator measuring 17mm in length, providing precise and durable operation. This toggle switch is built with an IP68 front panel protection rating, making it highly resistant to dust and water ingress, suitable for use in harsh conditions.
The RS PRO DPDT toggle switches offer a contact current rating of 12A and operate efficiently across a wide temperature range of -30°C to +85°C, ensuring versatility for various environments. The mechanical life cycle is rated at 10 cycles, providing dependable service life for switching operations. The switch meets RoHS, UL, and cUL certifications, affirming its compliance with international safety and environmental standards.
Constructed from high-quality materials, including brass actuator, aluminium die-casting bushing, silicone gasket O-ring, nylon 66 body, and brass terminals with tin plating, this toggle switch stands up to rigorous industrial use. Its compact form factor (64.2mm height, 28.7mm length, and 15.7mm width) enables straightforward installation in multiple control panels and systems.
Common applications include telecommunications equipment, aerospace control systems, automotive electronics, instrumentation controls, industrial automation, and material handling solutions. The switch’s versatility and durability make it ideal for controlling electric motors and actuators where DPDT polarity reversal is needed.
DPDT contact configuration with On-On switch operation for dual circuit control. Designed for PCB mounting with solder terminal type for secure electrical connection. Brass actuator length of 17mm for reliable mechanical function.
IP68 front panel rating providing protection against dust and water ingress. Operating temperature range from -30°C to 85°C suitable for various environments. Mechanical life rated at 10 cycles for reliable longevity. RoHS, UL, and cUL compliant ensuring quality and safety.
Compact dimensions enable easy integration into PCB systems. High-quality material construction for durable and consistent performance. Ideal for use in telecommunications, aerospace, automotive, and industrial control systems.
Explore the comprehensive range of RS PRO Toggle Switches and other electrical components at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration with On-On switch operation for dual circuit control.
It can operate at a maximum temperature of 85°C, making it suitable for various environments.
This model has an IP68 front panel protection rating, ensuring resistance to dust and water ingress.
The mechanical life of this toggle switch is rated at 10 cycles, providing reliable service for switching operations.
The dimensions are 64.2mm in height, 28.7mm in length, and 15.7mm in width, allowing for easy integration into control panels.
It is constructed from nylon 66 for the body, brass for the actuator and terminals, and includes an aluminium die-casting bushing and silicone gasket O-ring.
The contact current rating is 12A, suitable for various electrical applications.
This toggle switch is designed for PCB mounting with solder terminal type for secure electrical connections.
It complies with RoHS, UL, and cUL standards, ensuring quality and safety assurance.
The minimum operating temperature is -30°C, making it suitable for harsh environments.
This model is suitable for applications in telecommunications, aerospace, automotive, instrumentation, and industrial control solutions.
The actuator length is 17mm, providing reliable mechanical operation.
