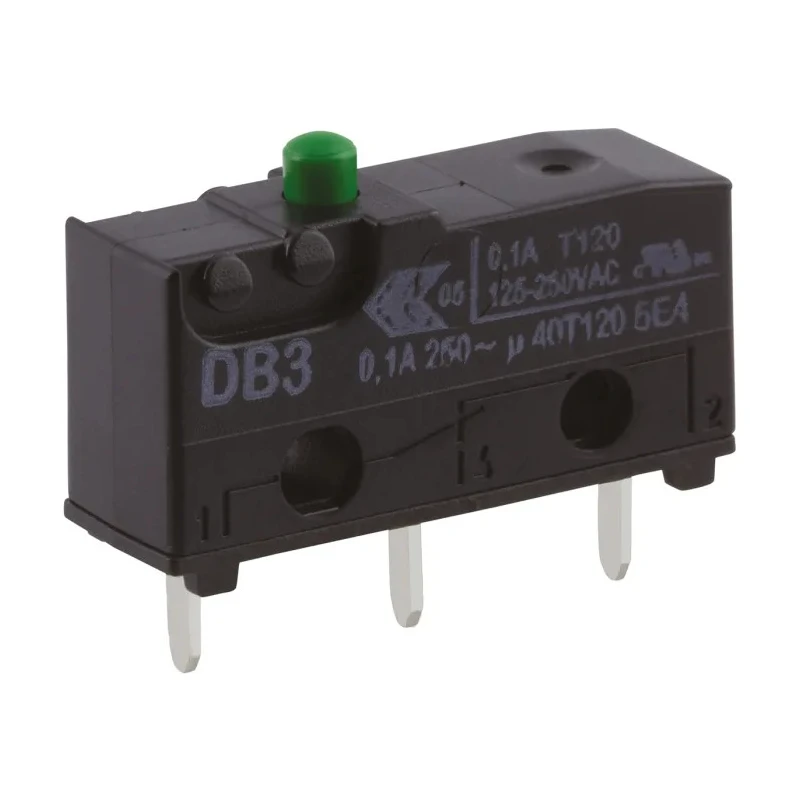

ZF Plunger Micro Switch with PCB Terminal, 100mA, 250 V AC, SPDT, IP50, DB3C-C1AA

The ZF DB3C-C1AA Plunger Micro Switch with PCB Terminal is a high-quality electrical switch designed for precision and durability in various industrial, automation, and electrical applications. With a rated current of 100mA and operating voltage of 250 V AC, this switch boasts a SPDT (Single Pole Double Throw) contact configuration, delivering versatile switching capabilities essential for control circuits.

This micro switch features a plunger actuator type that provides accurate and reliable actuation, supported by a secure PCB terminal mounting suitable for printed circuit boards. The housing is constructed from robust Polyethylene Terephthalate and Polyamide materials, rated UL 94V-0, ensuring excellent resistance to heat and mechanical stress.

Characterized by an IP50 ingress protection rating, the device safeguards against dust ingress while maintaining operational reliability in demanding environments. The switch operates effectively with an actuation force of 1.47N and can withstand wide temperature ranges from -40°C to 120°C, making it ideal for diverse industrial and commercial HVAC, manufacturing, and automation systems.

Its mechanical life spans up to 15 million operations, confirming its suitability for high-duty industrial usage. The DB3 subminiature type switch is manufactured in Germany, adhering to stringent quality standards including RoHS compliance and ENEC and UL approvals, ensuring safety and environmental friendliness.

Plunger actuator type for precise switching. PCB terminal for easy integration into circuit boards. 100mA current rating at 250 V AC voltage. SPDT contact configuration for flexible switching applications. Durable PET/PBT housing materials.

IP50 protection rating against dust. Operating force of 1.47N for reliable actuation. Wide temperature tolerance from -40°C to 120°C. Mechanical life of 15,000,000 operations. Manufactured in Germany ensuring high quality standards.

This ZF micro switch is ideal for integration in electrical controls within industrial automation, equipment manufacturing, HVAC systems, and other applications requiring dependable micro switch performance. Its compact dimensions (Height 11.65mm, Width 20mm, Depth 6.5mm) facilitate easy installation in dense electronic assemblies.
