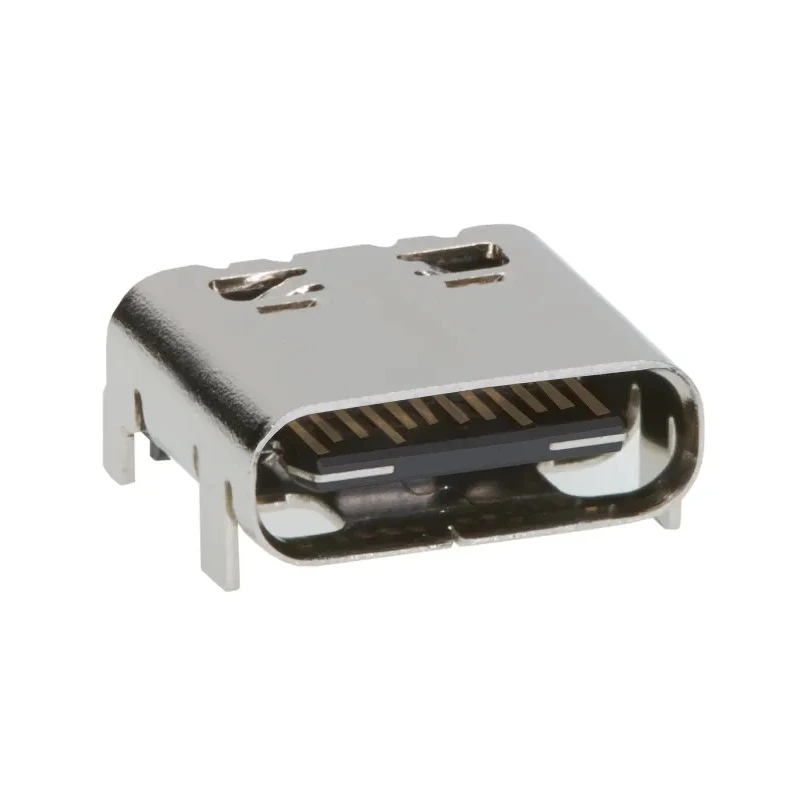

Molex Right Angle Surface Mount Female USB Type C Connector USB 3.1 5A 30V 105450-0101
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 105450 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Interfaces | USB surface mount connector is made from a copper alloy, with its premium build quality, it brings fantastic durability of up to 10,000 mating cycles |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | USB 3.1 |
Key Features
- Features right angle orientation for space-saving surface mounting.
- Supports current up to 5A and voltage up to 30V.
- Constructed with copper alloy contacts for durability and conductivity.
- Gold-plated terminations resist corrosion for long-lasting performance.
- Designed for up to 10,000 mating cycles ensuring extended service life.
- Thermoplastic housing tolerates operating temperatures from -30°C to +85°C.
- Fully shielded to prevent electromagnetic interference.
- Supports high-speed data transfer rates up to 10 Gbps.
Product Description
Molex 105450-0101 is a high-performance right angle surface mount female USB Type C connector, compliant with USB 3.1 standard, supporting data transfer speeds up to 10 Gbps and power handling up to 5A at 30V. This connector features 24 copper alloy contacts with gold-plated terminations that deliver excellent conductivity and corrosion resistance, ensuring long service life of up to 10,000 mating cycles.
The connector's right angle design facilitates space-saving installation on PCBs, especially where vertical height is limited. Its thermoplastic housing allows reliable operation in temperature ranges from -30°C to +85°C, making it suitable for demanding industrial and commercial environments.
It is fully shielded to protect against electromagnetic interference, enhancing signal quality and system reliability. The USB Type C reversible design ensures ease of use without orientation concerns, minimizing wear and tear.
Manufactured with three insert mould processes, the connector offers superior mechanical strength for soldered connections and enhances durability during repeated mating cycles. This product is ideal for applications including computer networking devices, charging ports, and gaming devices requiring fast data and power connectivity.
Right angle orientation conserves PCB space and simplifies assembly. Gold-plated copper alloy contacts enhance durability and conductivity. Thermoplastic housing withstands harsh temperature extremes. Fully shielded for robust EMI protection in sensitive electronics.
Supports up to 10,000 mating cycles for extended operational life. Three insert mould process increases solder termination strength. Provides up to 10 Gbps data transfer speeds per USB 3.1 specification. Supports 5A current and 30V voltage for power delivery applications.
Originating from China, this Molex 105450 series USB connector is engineered to meet demanding industrial, laboratory, and commercial connectivity requirements. It is a reliable choice for integration into USB Type C ports requiring compact, durable, and high-speed data and power interfacing solutions.
Explore more USB Connectors and electronic components at EnvMart for your connectivity and power distribution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB Type C connector supports a maximum current of 5A and a voltage of 30V, making it suitable for power delivery applications.
The operating temperature range for this connector is from -30°C to +85°C, allowing it to function in various environmental conditions.
It is designed for up to 10,000 mating cycles, ensuring a long service life for repeated connections.
The connector features copper alloy contacts with gold-plated terminations for enhanced conductivity and corrosion resistance.
This model has a right angle orientation, which helps conserve PCB space during installation.
Yes, it is compliant with the USB 3.1 standard, supporting high-speed data transfer rates.
This connector is designed for surface mounting, making it suitable for various PCB applications.
It is fully shielded, which helps prevent electromagnetic interference and enhances signal quality.
The connector uses solder termination, providing a reliable connection for electronic applications.
This model features one port, designed for single connections in various applications.
The connector originates from China, adhering to the required standards for industrial and commercial use.
This connector is ideal for applications such as computer networking devices, charging ports, and gaming devices requiring fast data and power connectivity.
